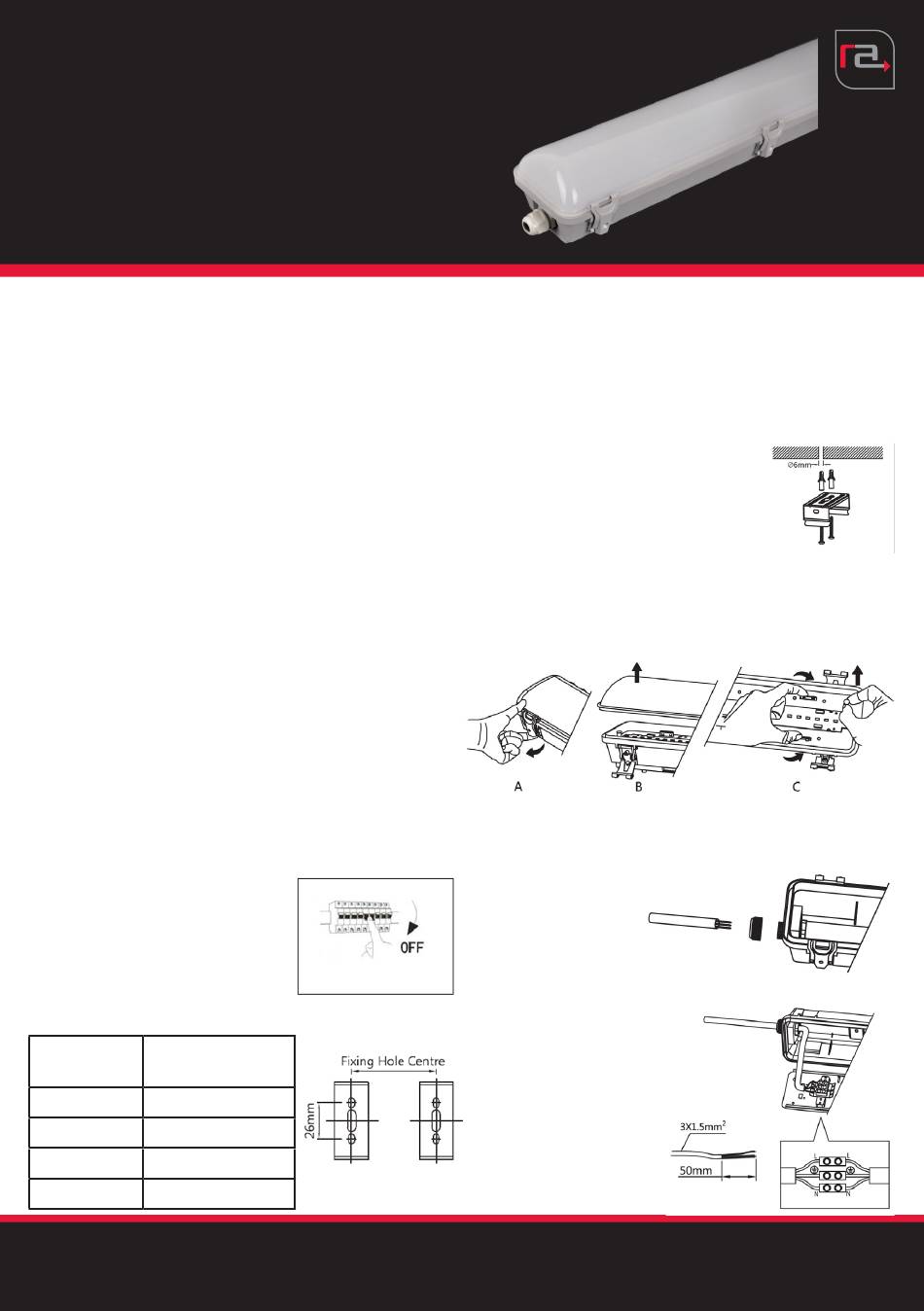

Red Arrow Trading WFLED224 Installation Instructions

LED Non-Corrosive
Fittings
Installation
Instructions p.1
For models: WFLED224, WFLED224E, WFLED424, WFLED424E,
WFLED448, WFLED448E, WFLED534, WFLED534E, WFLED570, WFLED570E, WFLED680 & WFLED680E
This installation must be carried out by a qualified electrician.
Please read these instructions carefully before installation.
Leave a copy for the user/maintenance engineer for future reference.

Specification

• Class I (must be earthed)
• 220-240V
• 24W-80W LED
• 50-176pcs SMD5630 Lextar Chip
• 4100K Colour temperature
•>80 Ra
• Up to 8100 lumens output
• Osram ballast
• IP66
• 50,000 Hours life expectancy
• >0.9 Power factor
• Three years guarantee
• Polycarbonate base & diffuser
Installation Instructions
1)
Turn off the switch.
2)
Drill Ø6mm holes according to the next drawings.
LED Fixing Fixing Hole
Length Centre
600mm 330mm
1160mm 770mm
1560mm 1098mm
1860mm 970mm/1460mm
Red Arrow Trading
Elsworth House, Herries Road South
Sheffield, S6 1QS
3)
Insert Ø6mm expansion pipe in the wall, fix the mounting
bracket by M4 screw.
4a)
Firstly, open the clips like picture A.
4b)
Secondly, take off the diffuser like picture B.
4c)
Hold on the gear tray retention clip and take off the gear
tray like picture C.
5a)
Loosen the nut of the cable gland, put the cable through
the cable gland.
5b)
Connect the cable on the terminal block as shown below
and tighten the cable gland.
