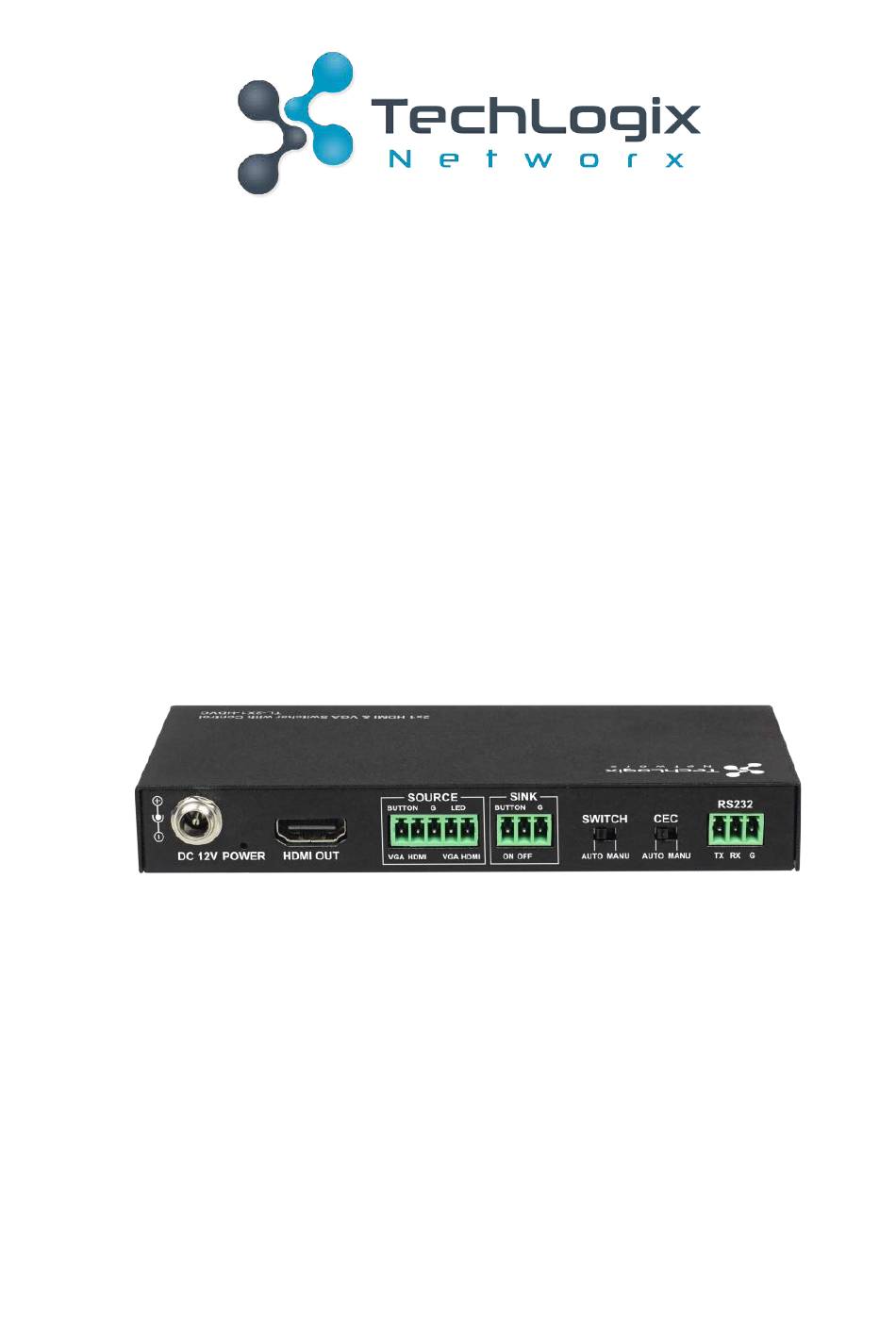

- Page 1 User Manual TL-2X1-HDVC 2x1 HDMI & VGA Switcher with Control All Rights Reserved Version: TL-2X1-HDVC_170208...
-
Page 2: Fcc Statement
TL-2X1-HDVC- User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only, slight differences may be evident on the real product. This manual is only for operation instruction only, not for any maintenance usage. - Page 3 TL-2X1-HDVC- User Manual SAFETY PRECAUTIONS To insure the best experience from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for...
- Page 4 TL-2X1-HDVC- User Manual 1. Introduction TL-2X1-HDVC is a VGA/HDMI Smart Switcher with direct CEC control, offering one HDCP compliant HDMI input, a VGA with analog stereo audio input, and a HDMI output up to 4K@60Hz (Chroma sub-sampling 4:2:0 8-bit only) without scaler.
- Page 5 If the source is 720p, such as mirrored content from a lower resolution laptop, the TL-2X1-HDVC will scale and convert the content to a digital 1080p output signal. If the source is 1080p, such as a PC connected directly to the VGA input, the TL-2X1-HDVC will convert the content to a digital 1080p output signal.

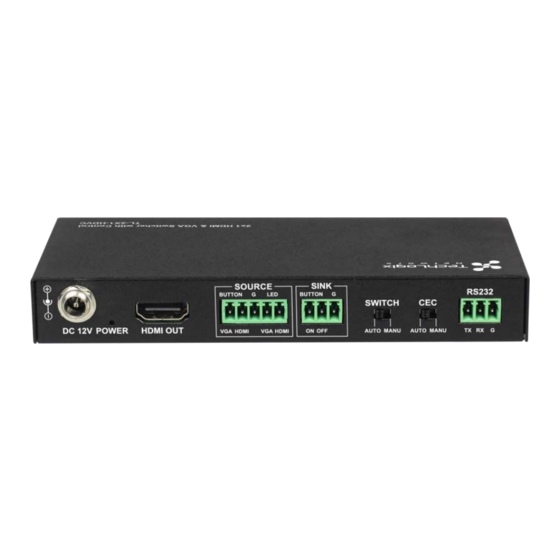

- Page 6 TL-2X1-HDVC- User Manual Rear Panel Name Description Power Input 12V 0.5A DC power input Power LED Indicates power status HDMI OUT Connects to an HDMI display devices Connects to a control device such as keypad for switching between VGA and HDMI inputs.
-
Page 7: System Connection
HDMI LEDs Step1. Connect a HDMI/VGA source (e.g. a Blu-ray DVD) to IN port of TL-2X1-HDVC; Step2. Connect a HDMI display (e.g. a LCD TV) to OUT port of TL-2X1-HDVC; Step3. Connect Panel switch (e.g. a LCD TV) to SOURCE/SINK ports of TL-2X1-HDVC;... - Page 8 TL-2X1-HDVC- User Manual System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets and power cords should be insulated. All devices should be connected before power on. 4. Specification Technical...
- Page 9 TL-2X1-HDVC- User Manual VESA: 640 x 480@60Hz, 800 x 600@60Hz 1024 x 768@60Hz, 1280 x 768@60Hz 1280 x 800@60Hz, 1280 x 960@60Hz 1280 x 1024@60Hz, 1360 x 768@60Hz 1366 x 768@60Hz, 1440 x 900@60Hz Output Resolution Support 1600 x 900@60Hz, 1600 x 1200@60Hz...
-
Page 10: Panel Drawing
TL-2X1-HDVC- User Manual 5. Panel Drawing 6. Troubleshooting & Maintenance Problems Causes Solutions Color loss or blurry/ Poor quality of the HDMI Change for qualified double image on HDMI cable HDMI cable. display No power Power up the unit Power led is off,... -
Page 11: After Sales Service
TL-2X1-HDVC- User Manual 7. After-sales Service If there appear some problems when running the device, please check and deal with the problems referenced in this user manual. 4) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years.
