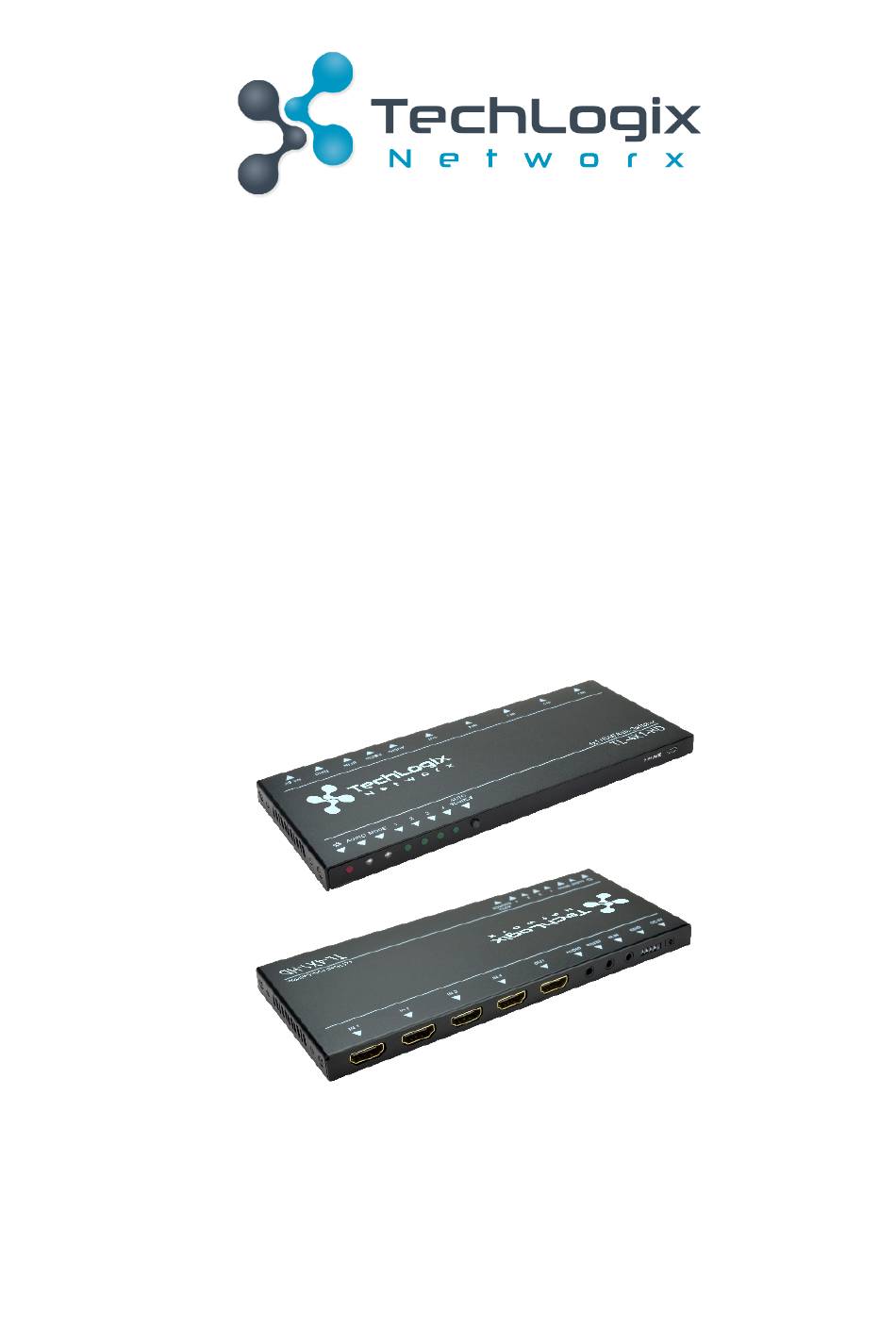

  • Page 1 User Manual TL-4X1-HD 4K HDMI Switcher 4x1 All Rights Reserved Version: TL-4X1-HD_160712...
  • Page 2 TL-4X1-HD User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage.
  • Page 3 TL-4X1-HD User Manual SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for...
  • Page 4: Table Of Contents

    TL-4X1-HD User Manual Contents 1. Introduction ............................. 1 1.1 Introduction to TL-4X1-HD ....................1 1.2 Features ..........................1 1.3 Package List .......................... 1 2. Panel Description ........................... 2 2.1 Front Panel ..........................2 2.2 Rear Panel ..........................3 3. System Connection ........................4 3.1 Usage Precautions .......................
  • Page 5: Introduction

    Select any of the inputs by front panel button or IR Remote, the corresponding indicator on the front panel will illuminate to show real-time I/O connection status. Compliance with HDMI 1.4& HDCP1.4, TL-4X1-HD can transmit uncompressed 4K (max) signal. The TL-4X1-HD boasts comprehensive audio capacities including PCM, Dolby Digital, DTS, and DTS-HD.
  • Page 6: Panel Description

    TL-4X1-HD User Manual 2. Panel Description 2.1 Front Panel FIRMWARE Name Description Power Illuminated red when device is powered ① Bi-colored LED indicator for audio source l Illuminated green when the audio is de-embedded from AUDIO ② HDMI signal l Illuminate yellow when the audio is ARC...
  • Page 7: Rear Panel

    TL-4X1-HD User Manual 2.2 Rear Panel Name Description HDMI input ports. 4 in total, connect with HDMI or DVI source device such as DVD/BluRay, supports input signals up to 4k/ ① 1080p 3D & ARC HDMI output port, connect to an HDMI display ②...
  • Page 8: System Connection

    Step1. Connect HDMI/ DVI source device(s) (e.g. BluRay/DVD) to the HDMI INPUT ports of TL-4X1-HD with HDMI cables. Step2. Connect an HDMI display to the HDMI OUTPUT port of TL-4X1-HD with an HDMI cable. Step3. Connect an amplifier to the audio output.
  • Page 9: Arc Solution

    Note: All utilized devices including the HDMI cable should support Audio Return Channel functionality when connected to Audio Return Channel-enabled devices. 3.5 Application The TL-4X1-HD has many applications it is suitable for, such as conference rooms, home theater, training rooms, and corporate board rooms. www.tlnetworx.com...
  • Page 10: System Control

    (Default: Manual switch.) In auto-switch mode, source selection abides by the following principles: l New input principle Upon detecting a new input signal, TL-4X1-HD will switch to this new signal automatically. l Power rebooting principle Once rebooted, TL-4X1-HD will automatically select input 1 as the input source even if there is no connection in input 1.
  • Page 11: Ir Control

    Uninstallation: Delete all the control software files in corresponding file path. 4.3.2 Basic Settings First, connect the TL-4X1-HD with an input device and an output device. Then, connect it to a computer (using the provided RS232 cable) which has the RS232 control software installed.
  • Page 12 TL-4X1-HD User Manual Here we take the software CommWatch.exe as example. The icon is showed as below: The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates Monitoring area, indicates whether the command whether the command sent works.
  • Page 13: Rs232 Communication Commands

    TL-4X1-HD User Manual 4.3.3 RS232 Communication Commands Baud rate: 9600; Data bit: 8; Stop bit: 1; Parity bit: none. Command Function Feedback Example Switch audio and video signal of input x [x]B1. AV: x -> 1 synchronously, x=1~4 0B0. Switch off output Mute On 0B2.
  • Page 14: Edid Management

    TL-4X1-HD provides convenient EDID management to create effective communication between the display and sources. In factory default status (Status: 0000), the TL-4X1-HD passes through EDID from the display to the sources. You can change the EDID data by adjusting the 4-pin EDID DIP switches.
  • Page 15 TL-4X1-HD User Manual Upgrade EDID data: EDID data supports upgrade via serial port. Follow these steps to upgrade EDID: Send command to upgrade the saved EDID data one by one. Step1. Copy the upgrade file (.bin) to PC. Step2. Send command EDIDUpgrade[x]. via the RS232 control software.
  • Page 16: Firmware Upgrade

    TL-4X1-HD User Manual 5. Firmware Upgrade The TL-4X1-HD features a USB port for firmware upgrade on the front panel. Follow these steps to upgrade the firmware: Step1. Copy the upgrade software and the latest upgrade file (.bin) to PC. Step2. Connect the USB ports of the TL-4X1-HD and the PC via USB cable.
  • Page 17: Specification

    TL-4X1-HD User Manual 6. Specification I/O Connections HDMI Inputs Four(4) HDMI type A receptacle HDMI Output One(1) HDMI type A receptacle Ed-embedded Audio Output One(1) 3.5mm TRS jack IR Input One(1) 3.5mm TRS jack RS232 Control One(1) 3-pin pluggable terminal block...
  • Page 18 TL-4X1-HD User Manual Enclosure Painted aluminum Dimensions (W x H x D) 194mm x 12mm x 80.4mm (6.00in x 0.47in x 2.77in) Shipping Weight 0.73Kg(1.60bls) Operating Temperature -10° ~ +40° C (+14° ~ +104° F) (Environment) Operating Temperature 45° C(113° F)
  • Page 19: Supported Input Video Formats

    TL-4X1-HD User Manual 6.1 Supported Input Video Formats Video Format Resolution 480I 480P 576I 576P HDMI 720P 1080I 1080P 4Kx2K 640*480@60 hz 640*480@72 hz 640*480@75 hz 800*600@60 hz 800*600@72 hz 800*600@75 hz 1024x768@60Hz 1024x768@70Hz 1024x768@75Hz 1280x1024@60Hz 1280x1024@75Hz 1600x1200@60Hz 1920x1080@60Hz 1920x1200@60Hz...
  • Page 20: Panel Drawing

    TL-4X1-HD User Manual 7. Panel Drawing 194 mm 12 mm AUTO AUDIO MODE SOURCE FIRMWARE www.tlnetworx.com...
  • Page 21: Troubleshooting & Maintenance

    No HDMI signal output may be faulty. and in working condition. in TL-4X1-HD while local HDMI input is in normal working state ‘Snowy’ screen on output Change for another cable Poor quality of HDMI cable devices of good quality.
  • Page 22: After-Sales Service

    TL-4X1-HD User Manual 9. After-sales Service If there appear some problems when running the device, please check and deal with the problems referenced in this user manual. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years.
