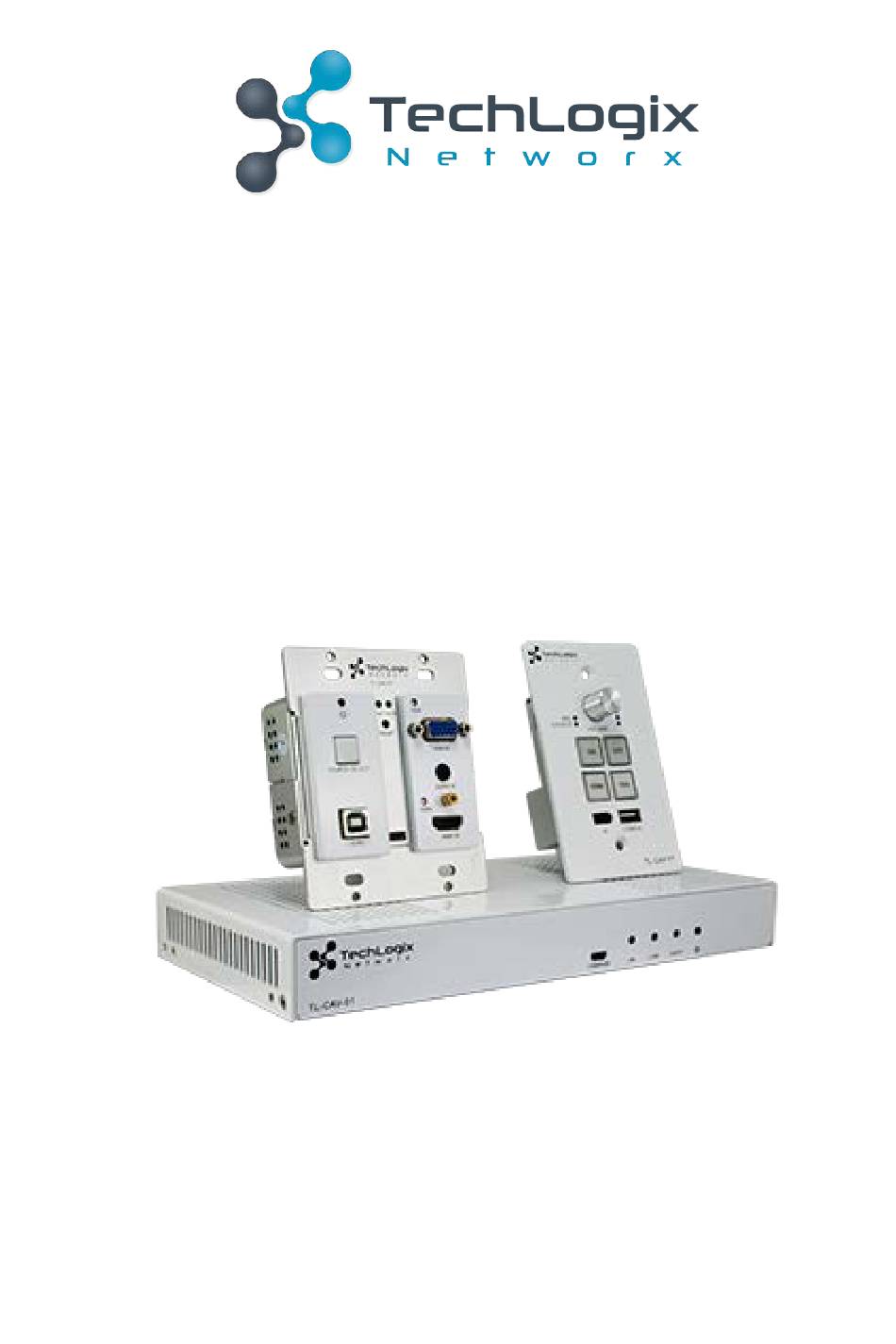

Page 1: User Manual
User Manual TL-CAV-01-HDV Multi-function AV distribution system All Rights Reserved Version: TL-CAV-01-HDV_170905... -
Page 2: Fcc Statement
TL-CAV-01-HDV User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. -
Page 3: Safety Precautions
TL-CAV-01-HDV User Manual SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for... - Page 4 TL-CAV-01-HDV User Manual Contents 1. Introduction ......................... 1 1.1 Brief Introduction ....................1 1.2 Features ......................1 1.3 Package List ......................2 2. Panel Description ......................3 2.1 Transmitter ......................3 2.2 Receiver ......................4 2.3 Control Panel ...................... 7 3.
- Page 5 TL-CAV-01-HDV User Manual 5.1 Transmitter ....................... 22 5.2 Receiver ......................23 5.3 Control Panel ....................24 6. Panel Drawing ......................25 6.1 Transmitter ....................... 25 6.2 Receiver ......................25 6.3 Control Panel ....................26 7. Troubleshooting & Maintenance ................27 8.
-
Page 6: Introduction
1. Introduction 1.1 Brief Introduction TL-CAV-01-HDV is a multi-function AV distribution system, which includes a wall plate HDBaseT transmitter, HDBaseT receiver with built-in audio amplifier and control panel. It is designed to provide HDMI and VGA video switching, system control, video extension and analog audio amplification in a convenient kit. -
Page 7: Package List
TL-CAV-01-HDV User Manual 1.3 Package List l 1 x Transmitter l 1 x Receiver l 1 x Control Panel l 1 x Power adapter (DC 24V 2.71 A) l 2 x Mounting ears (for Receiver) l 4 x Screws (for installing mounting ears) l 4 x Rubber feet (for Receiver) l 1 x Pluggable Terminal Block (4-pin block, used for 2x20Watt@4Ω... -
Page 8: Panel Description
TL-CAV-01-HDV User Manual 2. Panel Description 2.1 Transmitter Figure 2-1 Transmitter Name Description ① Power Turns red when power is connected HDBT Link status indicator: ü OFF: No Link ② Link ü GREEN: Link successful ü Blinking GREEN: Link abnormal HDCP compliance indicator: ü... -
Page 9: Receiver
TL-CAV-01-HDV User Manual ⑨ AUDIO IN Analog audio input paired with VGA input ü OFF: No HDMI signal traffic HDMI IN ⑩ ü YELLOW: HDMI signal traffic indicator ü GREEN: HDMI IN is chosen as input source. ⑪ HDMI IN HDMI IN Micro USB port used for firmware update. - Page 10 TL-CAV-01-HDV User Manual ü GREEN: Traffic with HDCP ü Blinking GREEN: Traffic without HDCP ⑤ Power Turns red when power is connected Connect to a PC to control the following items by Web-based GUI: ü Input signal switching ⑥ TCP/IP ü...
- Page 11 TL-CAV-01-HDV User Manual “+” connects to positive, “-” connects to negative and “ ╧ ” connects to ground. 2x20 watts ⑯ Speaker output. at 4Ω ⑰ DC24V Power input for the included DC 24V 2.71A power adapter. www.tlnetworx.com...
-
Page 12: Control Panel
TL-CAV-01-HDV User Manual 2.3 Control Panel Figure 2-3 Control Panel Name Description MIC audio signal indicator, it will turn blue when the MIC audio ① is selected to adjust its volume. ü Press this button to mute or unmute speaker. - Page 13 TL-CAV-01-HDV User Manual ⑨ Press it to select VGA IN signal as input source. ⑩ CONFIG USB-A connector to import or export configuration data. RJ45 connector. Connect to the POWER/RS232 port on the Transmitter via CAT5e/CAT6a cable to transmit RS232 control POWER ⑪...
-
Page 14: System Connection
TL-CAV-01-HDV User Manual 3. System Connection 3.1 Usage Precautions 1) Speakers must be connected before powering the receiver on. 2) All devices should be connected before powering the receiver on. 3) Use shielded solid core straight-thru Cat5e or greater with TIA/EIA T568B terminations to connect the HDBT ports. -
Page 15: Poc Solution
Connect HDBT ports via single shielded solid core straight-thru Cat5e or greater cable with TIA/EIA T568B terminations at both ends. 3.4 PoC Solution TL-CAV-01-HDV supports PoC, which allows all components in the kit to share the same power supply and eliminates the need for extra power supplies at the remote nodes. -
Page 16: Typical Application
Figure 3-2 PoC Solution Diagram 3.5 Typical Application TL-CAV-01-HDV is ideal for any space that requires a couple video sources and needs audio reinforcement. It is designed to solve some commonly inefficient issues, such as difficulty when trying to switch signal sources and providing whole room audio. This section provides a brief introduction to the typical application scenarios. -
Page 17: System Operation
TL-CAV-01-HDV User Manual 4. System Operation 4.1 IR Learning Function IR learning function allows user to use the buttons of Control Panel to control the display. The Control Panel has four buttons: “ON”, “OFF”, “HDMI”, and “VGA”. “HDMI” and “VGA” do not support the IR learning function, because they are designed for switching the HDMI signal sources. -
Page 18: Usb Signal Return
TL-CAV-01-HDV User Manual and system concurrently. Asynchronous control: Press “ON” to turn on display or long-press it to start system. Press “OFF” to turn off display or long-press it to put system into standby. Press “HDMI” or “VGA” to switch to the appropriate input source. -
Page 19: Rs232 Control
TL-CAV-01-HDV User Manual 4.4 RS232 control Receiver provides an additional RS232 interface to connect with a display, and then control it by sending RS232 commands via Web-based GUI. Please refer to 4.6.3 Command Menu. Figure 4-2 RS232 Control Diagram 4.5 IR control Control Panel provides a built-in IR sensor and Receiver provides an IR OUT port for IR Emitter to control the display. - Page 20 TL-CAV-01-HDV User Manual Figure 4-3 IR Control Diagram www.tlnetworx.com...
-
Page 21: Web-Based Gui Control
Connect the TCP/IP port of the Receiver to Ethernet port of PC with twisted pair, and then modify the PC’s network segment as the same as the TL-CAV-01-HDV’s. For example, the IP address of PC can be modified as 192.168.0.177. -
Page 22: Setting Menu
TL-CAV-01-HDV User Manual Figure 4-5 Control Menu In this interface, you can: Click “HDMI” or “VGA” in the HDMI & VGA bar to choose a signal source ² Click “ON” or “OFF” in the DISPLAY bar to turn on or turn off the display device, ²... - Page 23 TL-CAV-01-HDV User Manual Figure 4-6 Setting Menu In this interface, you can: Modify the passwords on the left PASSWORD bar. ² Select the control mode for turning on/off display in DISPLAY CONTROL SELECT ² bar, default mode is IR control.
-
Page 24: Command Menu
TL-CAV-01-HDV User Manual Click “Save” to save these settings. ² 4.6.3 Command Menu In setting menu, click “Command” to access command menu as shown in the below: Figure 4-7 Command Menu In this interface, you can: Enter the commands of display in Display On/Display OFF/Input Select box to ²... -
Page 25: Network Menu
While in DHCP mode, if you need to get the IP address, it can be checked via UPNP function. 4.6.5 GUI update GUI for TL-CAV-01-HDV supports online updates at http://192.168.0.178:100. Type the username and password (the same as the GUI log-in settings, modified password will be available only after rebooting) to log in the configuration interface. -
Page 26: Copy And Load Configuration Data
TL-CAV-01-HDV User Manual Select the desired update file and press Apply, it will start upgrading then. 4.7 Copy and load configuration data The system IR or RS232 configuration can be copied to a USB thumb drive and loaded into additional systems or be saved as a backup. -
Page 27: Specification
TL-CAV-01-HDV User Manual 5. Specification 5.1 Transmitter Video Ports Input Ports 1 x HDMI, 1 x VGA Output Port 1 x HDBT+Power Input 19-pin Type Output RJ45 Connectors HDMI female Connector Transmission HDBaseT Mode Control Ports 1 x USB 1 x Micro USB... -
Page 28: Receiver
TL-CAV-01-HDV User Manual 5.2 Receiver Video Ports Input 1 x HDBT+Power Output 1 x HDMI Output Input Connector RJ45 19-pin Type A HDMI female Connector Audio Ports amplifier Input 1 x MIC Output （2x20Watt@4Ω）, 1 x analog audio（LINE OUT） 4-pin... -
Page 29: Control Panel
TL-CAV-01-HDV User Manual Power Power Supply DC24V 2.71A 55w (Max) consumption Reference Temperature 0 ~ 50° C 10% ~ 90% Humidity Dimension 250x 31 x 130 mm Weight 642g (W*H*D) 5.3 Control Panel Specification Program Port 1 x Micro USB... -
Page 30: Panel Drawing
TL-CAV-01-HDV User Manual 6. Panel Drawing 6.1 Transmitter Figure 6-1 Dimension of Transmitter 6.2 Receiver Figure 6-2 Dimension of Receiver www.tlnetworx.com... -
Page 31: Control Panel
TL-CAV-01-HDV User Manual 6.3 Control Panel Figure 6-3 Dimension of Control Panel www.tlnetworx.com... -
Page 32: Troubleshooting & Maintenance
TL-CAV-01-HDV User Manual 7. Troubleshooting & Maintenance Problems Causes Solutions Insert power adapter to Haven’t been powered on. the receiver. No reaction to any operation, power Should the replacement The poor quality of network indicator is off CAT5e/CAT6a cable of cable. - Page 33 TL-CAV-01-HDV User Manual The PC’s network Unable to login to The PC’s network segment has segment need to be set as Web-based GUI not been modified. the same as the TL-CAV- 01-HDV’s Static becomes Check the grounding and stronger when...
-
Page 34: After-Sales Service
TL-CAV-01-HDV User Manual 8. After-sales Service If there appear some problems when running this product please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years.
