HDMI® Over IP Receiver for
ST12MHDLAN4K
ST12MHDLAN4R
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/ ST12MHDLAN4R.
Manual Revision: 03/17/2017
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ST12MHDLAN4R
Summary of Contents for StarTech.com ST12MHDLAN4R
- Page 1 ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com For the latest information, technical specifications, and support for this product, please visit www.startech.com/ ST12MHDLAN4R. Manual Revision: 03/17/2017...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ......................1 Packaging contents ..........................1 System requirements ..........................1 Product View ............................... 2 Installation ......................3 Preparing your site............................ 3 Hardware installation ..........................3 Software installation ..........................5 Technical support ....................6 Warranty information ..................6 Instruction manual... -
Page 4: Introduction
Introduction Packaging contents • 1 x HDMI over IP receiver • 1 x universal power adapter (NA, EU, UK, ANZ) • 1 x mounting bracket • 1 x RJ11 to RS232 adapter • 1 x RJ11 cable • 1 x quick-start guide System requirements •... -
Page 5: Product View

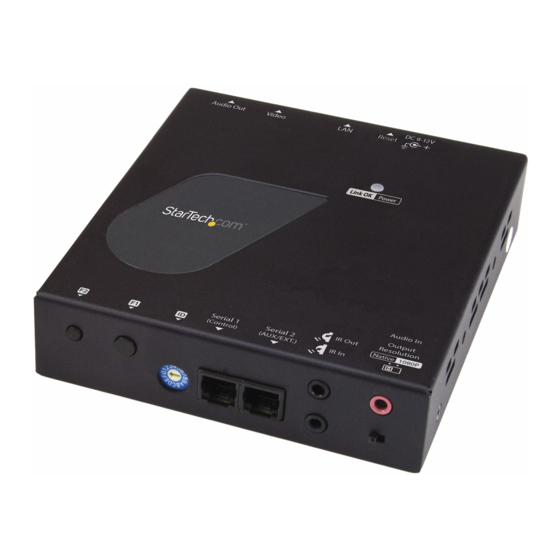

Product View Additional receiver units sold separately: Front view StarTech.com SKU: ST12MHDLAN4R Back view 9 10 Function 1 button Function 2 button Dip rotary switch Serial control (not active)* Serial extension (for extending RS-232 signal) Infrared (in) and (out) ports Audio in port** * Serial control port is not active. -
Page 6: Installation
Installation Preparing your site Note: This device will only work with the ST12MHDLAN4K HDMI® Extender kit. Please review site preparation steps from the ST12MHDLAN4K manual prior to installing additional receivers. The ST12MHDLAN4K HDMI extender kit lets you extend your 4K30 video over a Gigabit LAN network, beyond the typical cable length restriction of 330 ft. - Page 7 (Optional) If you are using additional ST12MHDLAN4R receivers (sold separately), repeat steps [a) through c)] for each additional receiver. Note: The rotary dip switches on the transmitter and each receiver connected to the network must be set in the same position for the devices to communicate.
-
Page 8: Software Installation
Android™ for your smartphone or tablet, and for the Google Chrome™ browser. To install the software: Visit http://www.StarTech.com/ST12MHDLAN4K, using the device you intend to install software on. Under the overview tab, select the link for the store that corresponds with your device. -
Page 9: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
