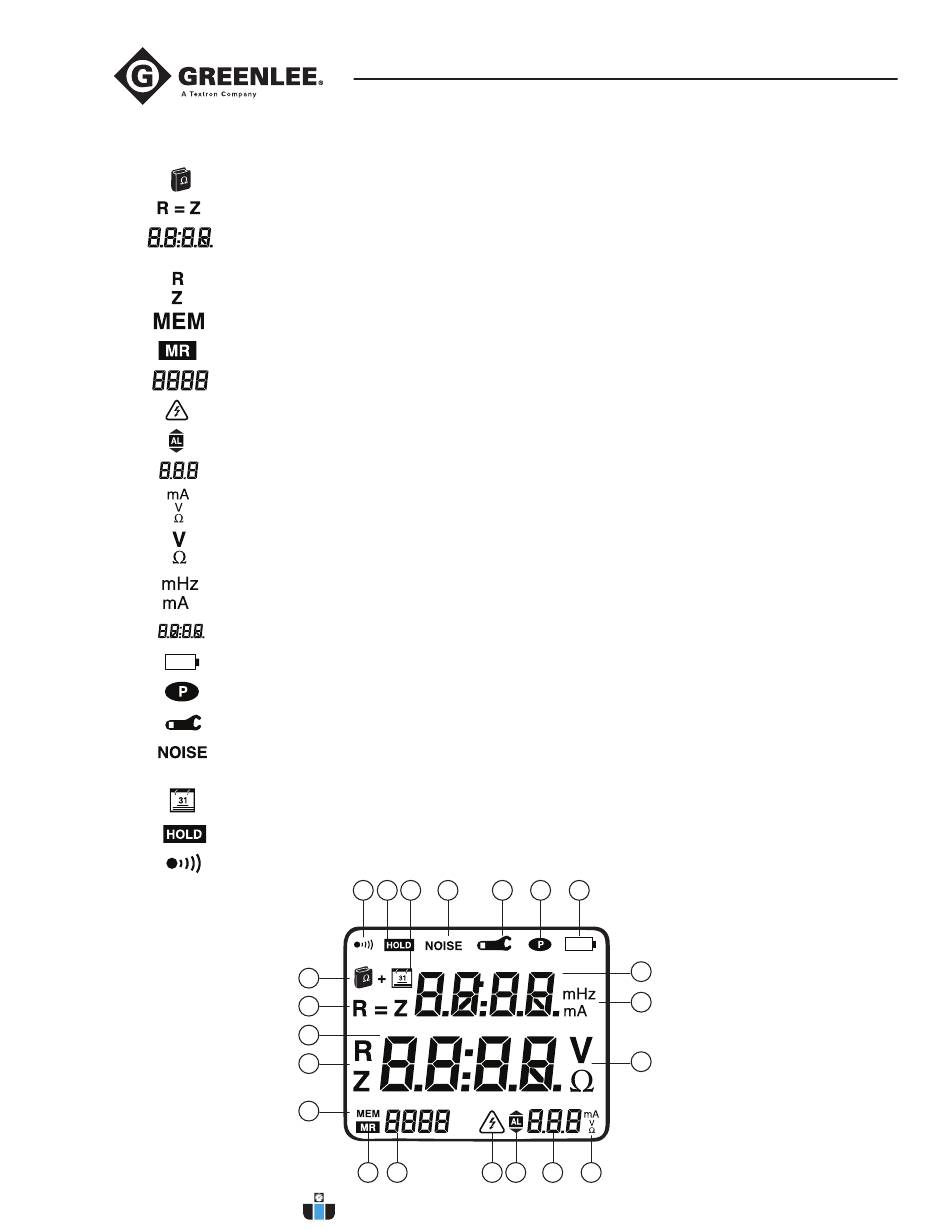

Display Icons

11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
8
1.800.544.2843
Advance Mode
Inductive Component = Resistive Component (Advanced Mode)
Main Display. Displays OR (Out of Range) when the measured
resistance is over 1500 Ω or/and when the measured current is over 40A
Resistance/Impedance (Advanced Mode)
Storage Mode
Memory Recall Mode
Memory Location
Hazardous Voltage (Blinks when Voltage exceeds 50V)
Alarm Threshold High/Low Indicator
Alarm Threshold Display
Units of Alarm Displayed
Units of Main Display
Units of Top Display (Loop Inductance/ Current)
Top Display (Advanced Mode)
Low Battery
Auto Power Off Disabled
Open Jaw
Presence of Stray Noise (Current) In Loop
(Measurements not valid)
Main Display Indicates Date When Lit
Freeze Measurement
Speaker Enabled
31 30
11
12
13
14
15
16 17
