Integrated Process Air Control Assembly
I/PAC (Integrated Process Air Control) – Type 595XP assembly consists of the following pre-
assembled package:
Type-595XP Explosion-proof I/P transducer, Type-330 Air Filter Regulator and gauge.
The I/PAC assembly is designed for air service only.
For individual unit specifications please see individual unit IOM (Installation, Operation and
1)
Mount per desired option below.
2)
Connect supply air to Type-330 filter regulator.
3)
Connect downstream air to I/P transducer (see unit specific IOM).
4)
Connect electrical connections to I/P transducer (see unit specific IOM).
5)
Set Type-330 filter regulator to desired output pressure.
6)
Turn on supply air before giving units electrical signal.
MOUNTING OPTIONS
The I/PAC integrated assembly comes complete with all mounting hardware to facilitate
either direct mount onto actuator yoke or pipe mount, either direct or offset. The mounting
hardware comes labeled in individual kits for easy identification and assembly.
Mounting Kits
I/PAC Yoke Mounting Kit
PN 448-542-023
I/PAC Pipe Mounting Kit
PN 448-542-021
Type-595XP / Type-330

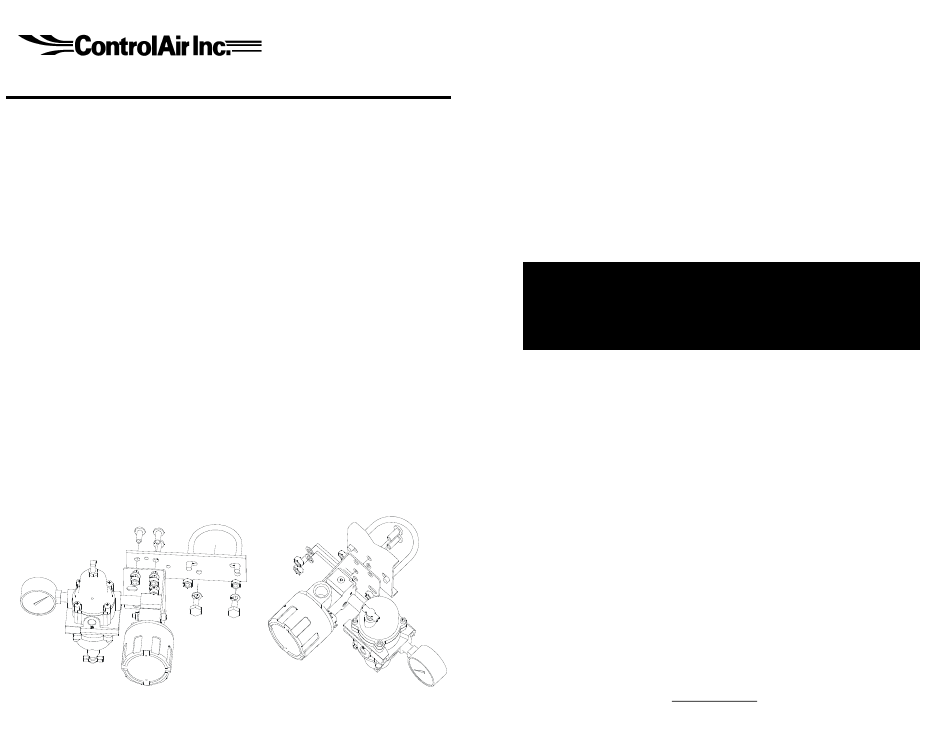

YOKE MOUNT OR OFFSET PIPE MOUNT
Installation, Operation and
Maintenance Instructions
I/PAC – Type 595XP
DIRECT PIPE MOUNT
LIMITED WARRANTY & DISCLAIMER
ControlAir, Inc. products are warranted to be free from defects in materials and workmanship
for a period of one year from the date of manufacture, provided said products are used
according to ControlAir, Inc. recommended usages. ControlAir, Inc.'s liability is limited to
repair of, refund of purchase price paid for, or replacement in kind of, at ControlAir, Inc.'s
sole option, any products proved defective. ControlAir, Inc. reserves the right to discontinue
manufacture of any product or change product materials, design or specifications without
notice. Note: ControlAir does not assume responsibility for the selection, use, or
maintenance of any product. Responsibility for the proper selection, use, and maintenance of
any ControlAir product remains solely with the purchaser and end user.
These products are intended for use in industrial compressed air systems only.
Do not use these products where pressures and temperatures can exceed those
listed under Specifications.
Before using these products with fluids other than air, for non-industrial
applications, life-support systems, or other applications not within published
specifications, consult ControlAir, Inc.
8 Columbia Drive, Amherst, New Hampshire 03031 U.S.A.
Tel: (603) 886-9400 ♦ Fax: (603) 889-1844
www.controlair.com
441-622-113 rev. 10/26/10
