Iget SECURITY EP18 User Manual

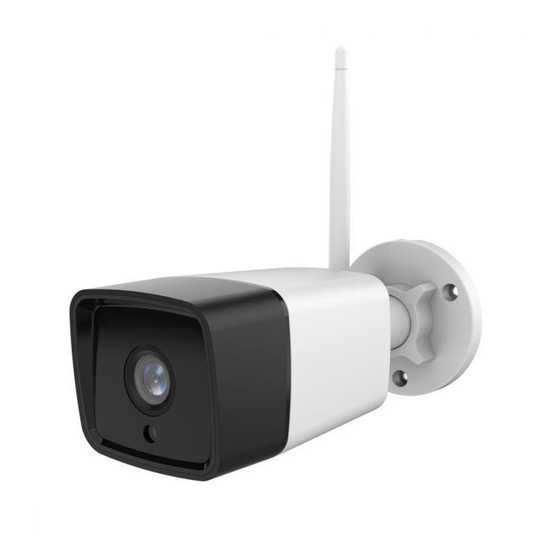

Outdoor Camera iGET SECURITY
Features
Designed for use with alarm systems, the EP18 Camera is a wireless Internet based camera that provides outstanding performance. Its light and cute
This IP camera is easy to con gure and operate via mobile App. It uses Access Point technology to help the camera connecting to wireless router fast and easy.
By global oversea servers, users can easily watch the live video or recorded videos on phone from anywhere anytime.
Video Resolution 1920x1080@30FPS Auto IR-LED illumination with auto IR-Cut Switch 8 IR LEDs IR Night vision range(up to 98.4 feet/30 meters)Wi-Fi
compliant with IEEE 802.11b/g/n, 2.4GHz band Support WEP,WPA-PSK and WPA2-PSK Encryption Support recording and playback via micro SD Card, up to
128GB. Be compatible with ONVIF Protocol H.265 main pro le video compression format.
Parameters
Image Sensor
WDR
Noise Reduction
Camera
Day/Night control (IR-Cut)
Motion detection
SD Card
IR distance
Focal Length
Max Aperture
Lens
Focus control
Diagonal Angel of View
Encode
Resolution
Video
Video Bitrates
Video Frame Rate
Image snapshot
Setting Up Camera
Power up
Connect the power cable into power connector of the camera,
and plug the power adapter into an outlet.
Pairing with system
Tap "+" Add accessory to scan QR codes printed on the back of
the camera base, you will be guided to connect to Camera by
connecting the AP's name which started with IPcam***.
WiFi Settings
• After switch back to App, you will have the page to set up
WiFi of the camera.
• Select your WiFi router in the list, then input Password and
Save.
• The camera will start to connect to the router, you will hear
the camera play a special tone that means it was connected
to the router successfully.
• Name it and set the password, then getting started to use camera.
1/2.7" 1080P CMOS
1920(H)x1080(V)
Digital WDR
3D DNR
Auto(ICR) / Color / Black&White
Supported
Supported, up to 128GB
30m
4mm
F2.4
Fixed
114°
H.265 main pro le
1080P (1920x1080) VGA (640x352)
32Kbps ~ 8Mbps
30fps@1080P
Supported
(EP18)
Power Supply
Hard Reset
Power Consumption
General
Working Environment
Weather Resistance
Dimensions
Weight
Network Protocol
Smart Phone
Network
Wi-Fi
P2P
- 1 -
User Guide - EN
DC 12V/1A
Supported
<5W
-10℃ ~+55℃ ,10%~90% RH
IP65
188.37x65x60 mm
385g
HTTP, FTP, TCP/IP, UDP, SMTP, DHCP, NTP,
UPNP, RTSP, Onvif, DDNS
iOS(9.0 or above),Android(5.0 or above)
Wi-Fi (802.11b/g/n), 2.4G only, supports
WEP/WPA-PSK/WPA2-PSK encryption
Supported
