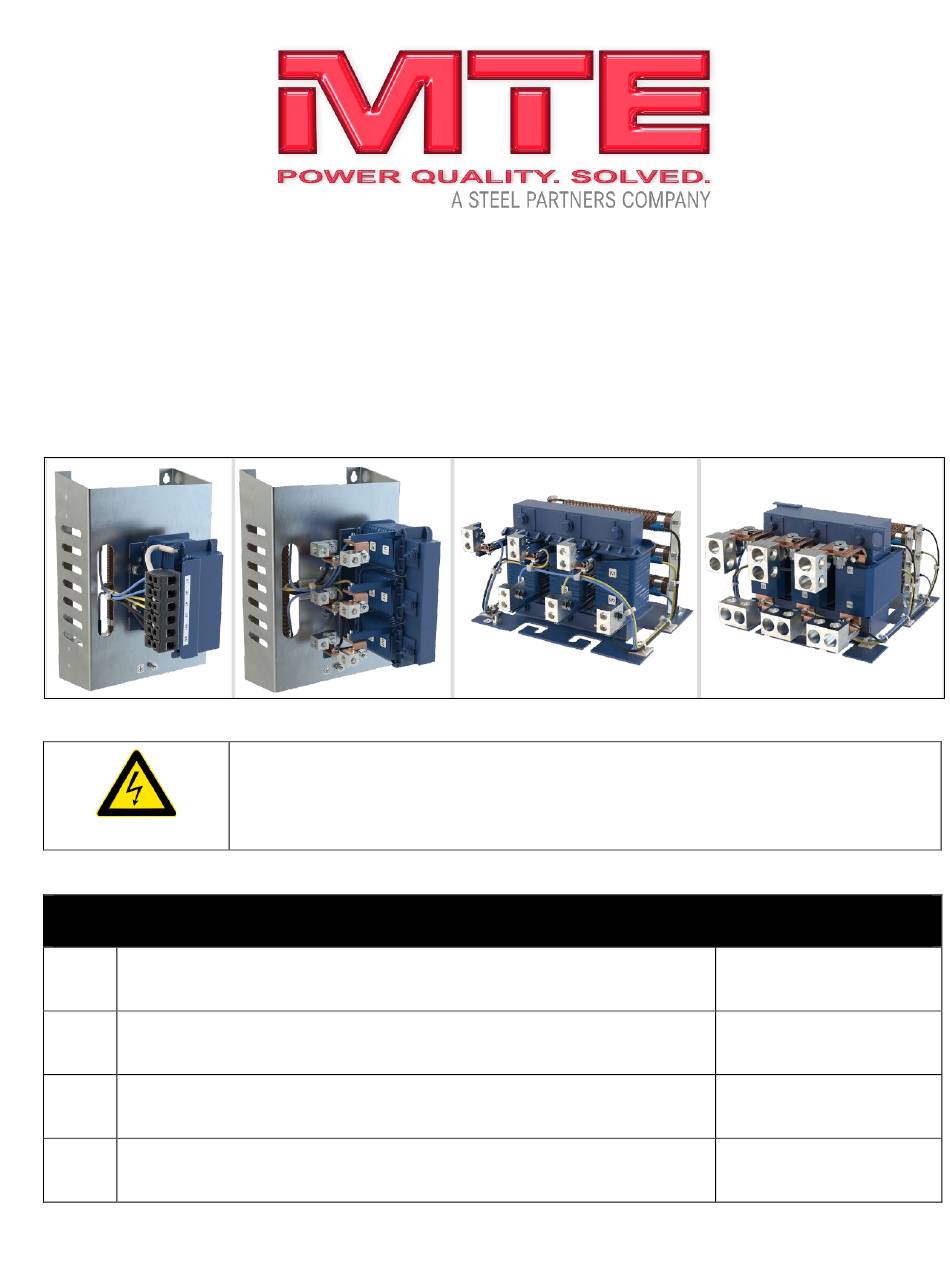

- Page 1 dV E-Series 208V – 600V TECHNICAL REFERENCE MANUAL High Voltage! Only a qualified electrician can carry out the electrical installation of this filter. WARNING Quick Reference ❶ Pages 9 – 12 Performance Data ❷ Selection Guide Pages 13 – 18 ❸...
- Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
dV E-Series Technical Reference Manual 208V – 600V TABLE OF CONTENTS 1. SAFETY ..........................5 ......................5 ARNINGS AND AUTIONS ..................... 5 RODUCT AFETY ABELING ....................6 ENERAL AFETY NSTRUCTIONS 2. GENERAL INFORMATION ....................7 & R ....................7 ECEIPT EPAIR TATEMENT ........................... - Page 4 dV E-Series Technical Reference Manual 208V – 600V List of Figures Figure 3-1: Typical Performance Chart ..................11 Figure 3-2: Altitude Derating Curve ...................12 Figure 3-3: Current Derating for Drive Output Frequency ............12 Figure 5-1: Basic Schematic Diagram ..................21 Figure 5-2: Kit Diagram ......................22 Figure 5-3: Open Panel and Enclosed Diagram ................23 List of Tables Table 3-1: Performance Specifications ..................
-
Page 5: Safety
dV E-Series Technical Reference Manual 208V – 600V 1. SAFETY Warnings and Cautions The following symbols are used in this manual: High Voltage Warning: warns of situations that dangerously high voltage is involved. Failure to use proper precautions may lead to serious injury or death. WARNING General Warning: warns of situations that can result in serious injury or death if proper precautions are not used. -
Page 6: General Safety Instructions
Modular filters must have reactor grounded through a 2”x2” area cleaned of paint and varnish on lower mounting bracket. Only spare parts obtained from MTE Corporation, or an authorized MTE distributor can be used. Loose or improperly secured connections may damage or degrade filter performance. -
Page 7: General Information
Repair/Exchange Procedure: MTE Corporation requires a Return Material Authorization Number and form before we can accept any filters that qualify for return or repair. If problems or questions arise during... -
Page 8: Enclosures
E-Series Technical Reference Manual 208V – 600V Enclosures MTE enclosures are designed to provide a degree of protection for electrical components and prevent incidental personnel contact with the enclosed equipment. Depending on the enclosure selected, these enclosures meet the requirements of NEMA 1/2 or 3R. -
Page 9: Dv E-Series Performance Data
dV E-Series Technical Reference Manual 208V – 600V 3. dV E-SERIES PERFORMANCE DATA Performance Specifications Table 3-1: Performance Specifications Service Load Condition Invertor Duty Three Phase Motors Voltage 208 – 600 VAC +/- 10%, 60Hz Input Voltage Wave Form Pulse Width Modulation (PWM) Inverter Switching Frequency 2kHz –... -
Page 10: Filter Efficiency + Watt Loss
dV E-Series Technical Reference Manual 208V – 600V Filter Efficiency + Watt loss Table 3-2: Filter Efficiency & Watt Loss Maximum Typical Power Output Amps Efficiency Dissipation RMS/Filter Current (Watts*) Rating Amps RMS 99.0% 99.0% 99.0% 99.0% 99.0% 99.0% 99.0% 99.0% 99.0% 99.0%... -
Page 11: Performance Chart
dV E-Series Technical Reference Manual 208V – 600V Performance Chart Figure 3-1: Typical Performance Chart Form: DVT-TRM-E December 2021 Rev. 001... -
Page 12: Altitude Derating
dV E-Series Technical Reference Manual 208V – 600V Altitude Derating Figure 3-2: Altitude Derating Curve Motor Frequency Derating Figure 3-3: Current Derating for Drive Output Frequency Form: DVT-TRM-E December 2021 Rev. 001... -
Page 13: How To Select
The suitability of this filter for a specific application must therefore be determined by the customer. In no event, will MTE Corporation assume responsibility or liability for any direct or consequential damages resulting from the use or application of this filter. Nor will MTE Corporation assume patent liability with respect to the use of information, circuits or equipment described in this instruction manual. -
Page 14: Understanding The Dv E-Series Part Number
dV E-Series Technical Reference Manual 208V – 600V Understanding the dV E-Series Part Number: _ _ _ _ E dV E-Series Filter Type K = Kit P = Open Panel G = General Purpose (NEMA 1/2) W = Weather (NEMA 3R) Current Rating (i.e., 0003 is 3 Amps, 0045 is 45 Amps, 0600 is 600 Amps) Voltage Rating... -
Page 15: Part Number Selection Tables
dV E-Series Technical Reference Manual 208V – 600V Part Number Selection Tables Table 4-1: Kit Selection Table 550V- Reactor Resistor 208V App. 240V 380V 480V Filter 600V Part Dimensions Dimensions Motor Motor Motor Motor Motor Number (in.) (in.) (lbs.) Rating (H x W x D) (H x W x D) DVTK0003E... -
Page 16: Part Number Selection Tables
dV E-Series Technical Reference Manual 208V – 600V Part Number Selection Tables Table 4-2: Open Panel Selection Table 550V- 208V App. 240V 380V 480V Filter Filter Dimensions 600V Part Motor Motor Motor Motor (in.) Motor Number (lbs.) (H x W x D) Rating DVTP0003E 8.9 x 5.5 x 7.7... -
Page 17: Table 4-3: Enclosed Nema 1/2 Selection Table
dV E-Series Technical Reference Manual 208V – 600V Part Number Selection Tables Table 4-3: Enclosed NEMA 1/2 Selection Table 550V- App. 208V 240V 380V 480V NEMA 1/2 Filter Part 600V Motor Motor Motor Motor Enclosure Motor Number (in.) (H x W x D) Rating (lbs.) 0.5 –... -
Page 18: Table 4-4: Enclosed Nema 3R Selection Table
dV E-Series Technical Reference Manual 208V – 600V Part Number Selection Tables Table 4-4: Enclosed NEMA 3R Selection Table NEMA 3R 550V- App. 208V 240V 380V 480V Filter Enclosure Part 600V Motor Motor Motor Motor (in.) Motor Number Rating (lbs.) (H x W x D) 0.5 –... -
Page 19: How To Install
dV E-Series Technical Reference Manual 208V – 600V 5. HOW TO INSTALL Installation Checklist Prior to installation, please review the safety instructions on pages 1 & 2. Failure to practice this can result in body injury! Input and output wiring to the filter should be performed by authorized personnel WARNING in accordance with NEC and all local electrical codes and regulations. -
Page 20: Grounding
dV E-Series Technical Reference Manual 208V – 600V Grounding The filter must always be grounded with a grounding conductor connected to ground terminals. WARNING For panel mounted units, ensure a 2” x 2” area is cleaned of paint and varnish on lower mounting bracket for ground connection. -
Page 21: Basic Schematic Diagram
dV E-Series Technical Reference Manual 208V – 600V Basic Schematic Diagram Figure 5-1: Basic Schematic Diagram Form: DVT-TRM-E December 2021 Rev. 001... -
Page 22: Interconnection Diagram - Kit
dV E-Series Technical Reference Manual 208V – 600V Interconnection Diagram – Kit Figure 5-2: Kit Diagram Form: DVT-TRM-E December 2021 Rev. 001... -
Page 23: Interconnection Diagram - Open Panel And Enclosed
dV E-Series Technical Reference Manual 208V – 600V Interconnection Diagram – Open Panel and Enclosed Figure 5-3: Open Panel and Enclosed Diagram Form: DVT-TRM-E December 2021 Rev. 001... -
Page 24: Torque Ratings
dV E-Series Technical Reference Manual 208V – 600V Torque Ratings Table 5-1: Torque Ratings dV E-Series Terminals Input /Output Power Resistor Terminals (Kits ONLY)* Filter U1-V1-W1 / U2-V2-W2 Rating Recommended Terminal (Amps) Minimum Terminal Torque Recommended Wire Size Torque Wire Size (in-lbs.) (AWG) (in-lbs.) -
Page 25: Start-Up
dV E-Series Technical Reference Manual 208V – 600V 6. START-UP Safety Precautions Before start-up, observe the following warnings and instructions: Internal components of the filter are at line potential when the filter is connected to the drive. This voltage is extremely dangerous and may cause death or severe injury if you come in contact with it. -
Page 26: Troubleshooting
dV E-Series Technical Reference Manual 208V – 600V 7. TROUBLESHOOTING When properly installed, this equipment has been designed to provide maximum safety for operating personnel. However, hazardous voltages and elevated temperatures exist within the confines of the enclosure. Servicing should therefore be performed by qualified personnel only and in accordance with OSHA Regulations. - Page 27 Check carrier frequency and overload settings. Multiple motor applications create complex loading and resonances with Possible cause: dV E-Series filter. dV E-Series filters can be paralleled for higher current ratings. Contact Solution: MTE Application Engineering for more information. Form: DVT-TRM-E December 2021 Rev. 001...
