SineWave Nexus™ 380V – 600V TECHNICAL REFERENCE MANUAL High Voltage! Only a qualified electrician can carry out the electrical installation of this filter. WARNING Quick Reference ❶ Performance Data Pages 5 - 10 ❷ Selection Guide Pages 11 – 16 ❸...
SineWave Nexus™ Technical Reference Manual 380V - 600V 1. SAFETY Warnings and Cautions The following symbols are used in this manual: High Voltage Warning: warns of situations that dangerously high voltage is involved. Failure to use proper precautions may lead to serious injury or death.
WARNING a 2”x2” area cleaned of paint and varnish on lower mounting bracket. Only spare parts obtained from MTE Corporation or an authorized MTE distributor can be used. After removing power, allow at least five minutes to elapse and verify that the capacitors have discharged to a safe level before contacting internal components.

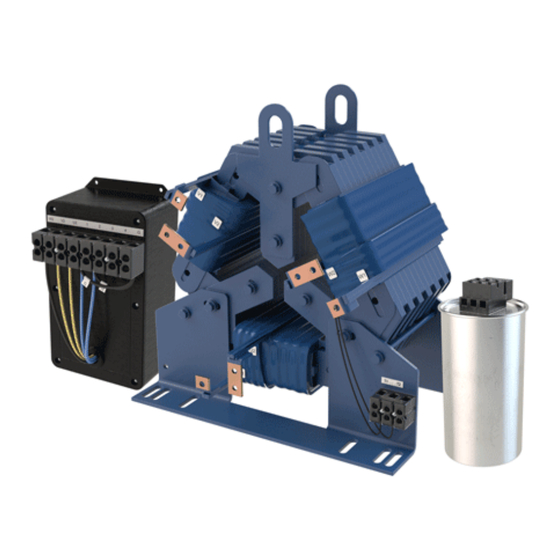

SineWave Nexus™ Technical Reference Manual 380V - 600V 2. GENERAL INFORMATION The purpose of this manual is to properly specify, size, and install the SineWave Nexus. For most current information, please refer to website: http://www.mtecorp.com/nexus-sinewave-filter/ SineWave Nexus filters transform the output of Variable Frequency Drives (VFDs) to a near perfect sinusoidal waveform for the best level of motor protection.
SineWave Nexus™ Technical Reference Manual 380V - 600V Enclosures MTE enclosures are designed to provide a degree of protection for electrical components and prevent incidental personnel contact with the enclosed equipment. Depending on the enclosure selected, these enclosures meet the requirements of NEMA 1/2 or NEMA 3R.
SineWave Nexus™ Technical Reference Manual 380V - 600V Voltage Waveforms Figure 3-1: Output Voltage before SineWave Nexus Figure 3-2: Output Voltage after SineWave Nexus Form: SWN-TRM-E February 2020 REV. 001...
SineWave Nexus™ Technical Reference Manual 380V - 600V Common Mode Voltage Waveforms Figure 3-3: Common Mode Voltage without SineWave Nexus Figure 3-4: Common Mode Voltage with SineWave Nexus Form: SWN-TRM-E February 2020 REV. 001...
4. HOW TO SELECT Selection Guide MTE’s SineWave Nexus motor protection filters are designed to provide a sine wave output voltage when driven from PWM inverters with switching frequencies from 2 kHz to 8 kHz. For drive applications, these filters eliminate the problem of motor insulation failures and they also reduce electromagnetic interference by eliminating the high dV/dt associated with inverter output wave forms.
SineWave Nexus™ Technical Reference Manual 380V - 600V Understanding the SineWave Nexus Part Number _ _ _ _ SineWave Nexus Type M = Modular G = General Purpose (NEMA 1/2) W = Weather (NEMA 3R) Current Rating 0002 is 2 Amps...
SineWave Nexus™ Technical Reference Manual 380V - 600V SineWave Nexus 380-480V, 60Hz Selection Tables Table 4-1: SineWave Nexus 380-480V Open Panel App. 3-Phase Open Common Mode 380V 480V Filter Assembly (in.) Motor Motor Part Number Capacitor Magnetics Rating (in.) (H x W x D) (H x W x D) (lbs.)
SineWave Nexus™ Technical Reference Manual 380V - 600V SineWave Nexus 380-480V, 60Hz Selection Tables Table 4-2: SineWave Nexus 380-480V Enclosed NEMA 1/2 380V 480V Filter App. NEMA 1/2 Motor Motor Part Number Enclosure Rating (lbs.) (in.) (H x W x D) 0.55...
SineWave Nexus™ Technical Reference Manual 380V - 600V SineWave Nexus 600V, 60Hz Selection Tables Table 4-4: SineWave Nexus 600V Open Panel App. Open 3-Phase Common Mode 600V 600V Filter Part Capacitor Assembly (in.) Motor Motor Magnetics Number Rating (in.) (H x W x D) (in.) (H x D)
SineWave Nexus™ Technical Reference Manual 380V - 600V SineWave Nexus 600V, 60Hz Selection Tables Table 4-5: SineWave Nexus 600V Enclosed NEMA 1/2 600V 600V Filter App. NEMA 1/2 Part Motor Motor Enclosure Number Rating (lbs.) (in.) (H x W x D) SWNG0005E 24.0 x 12.5 x 17.9...
Minimum Required Space: Open panel SineWave Nexus filters are designed for mounting within the customer’s enclosure. When determining the internal temperature rise and cooling requirements of the enclosure, include the power dissipation of the filter along with all the other components located in the panel. A general guideline is to allow a side clearance of four (4) inches and a vertical clearance of six (6) inches for proper heat dissipation and access within the enclosure.
Inductive Loads 12 VDC Resistive Loads 24 VDC Resistive Loads MTE highly recommends the use of the overtemperature switch to prevent damage to the filter in rare instances of overheating from abnormal operating conditions. Form: SWN-TRM-E February 2020 REV. 001...
SineWave Nexus™ Technical Reference Manual 380V - 600V Power Wiring Connection Input and output power wiring to the filter should be performed by authorized personnel in accordance with the NEC and all local electrical codes and regulations. Cable lugs and mounting hardware are provided by the customer.
SineWave Nexus™ Technical Reference Manual 380V - 600V Common Mode Assembly Connection Review the schematic prior to connecting unit in DC Bus Configuration. Connecting the unit incorrectly could result in failure of drive and filter components When attempting to connect the filter to the DC Bus of the drive, please consult WARNING drive manual/manufacturer for proper connection points.
Page 25
SineWave Nexus™ Technical Reference Manual 380V - 600V Wiring Checks Using Figure 5-3: Basic Schematic Diagram (p24), visually check the wired components to confirm, verify, and correct wiring. Then, with a multimeter, check phase to phase isolation using the 100 K ohm range.
SineWave Nexus™ Technical Reference Manual 380V - 600V Common Mode Assembly Connection Diagrams Figure 5-5: DC Bus Connected Configuration Figure 5-6: Ground Connected Configuration Note: Refer to the Common Mode Assembly Connection section (p20) for details on converting from the Ground Connected Configuration to the DC Bus Configuration...
8 kHz. Optimum switching frequency is at 4kHz and above. Caution MTE recommends 10 seconds as an initial starting point for motor ramp time and that customers examine the actual inrush and ratings of their drive system. Inrush current seen at the drive from the filter that can easily be overcome by changing the motor ramp time.
Page 34
SineWave Nexus™ Technical Reference Manual 380V - 600V Sequence of Operation Read and follow safety precautions. After installation, ensure that: a. All filter ground terminals are connected to ground. b. Power wiring to the utility, drive, filter and motor is in accordance with the power wiring connection diagrams shown in installation instructions section.
SineWave Nexus™ Technical Reference Manual 380V - 600V 7. TROUBLESHOOTING When properly installed, this equipment has been designed to provide maximum safety for operating personnel. However, hazardous voltages and elevated temperatures exist within the confines of the enclosure. Servicing should therefore be performed by qualified personnel only and in accordance with OSHA Regulations.
Page 36
SineWave Nexus™ Technical Reference Manual 380V - 600V Table 7-1: Troubleshooting Guide PROBLEM: Drive Overcurrent Fault Possible cause: Motor ramp-up time too short. MTE suggests a ramp time of >5-10 seconds. Consult drive manufacturers Solution: manual to configure proper parameters. Possible cause: Failed or incorrect wiring Solution: Verify all field and product wiring is correct.
Page 37
SineWave Nexus™ Technical Reference Manual 380V - 600V PROBLEM: Common Mode not filtering as expected. Possible cause: Grounding on the distribution transformer is insufficient. Change common mode assembly configuration from grounded connected to Solution: DC Bus connected. Possible cause: Ground connection was not made properly on the unit.
