Service Manual

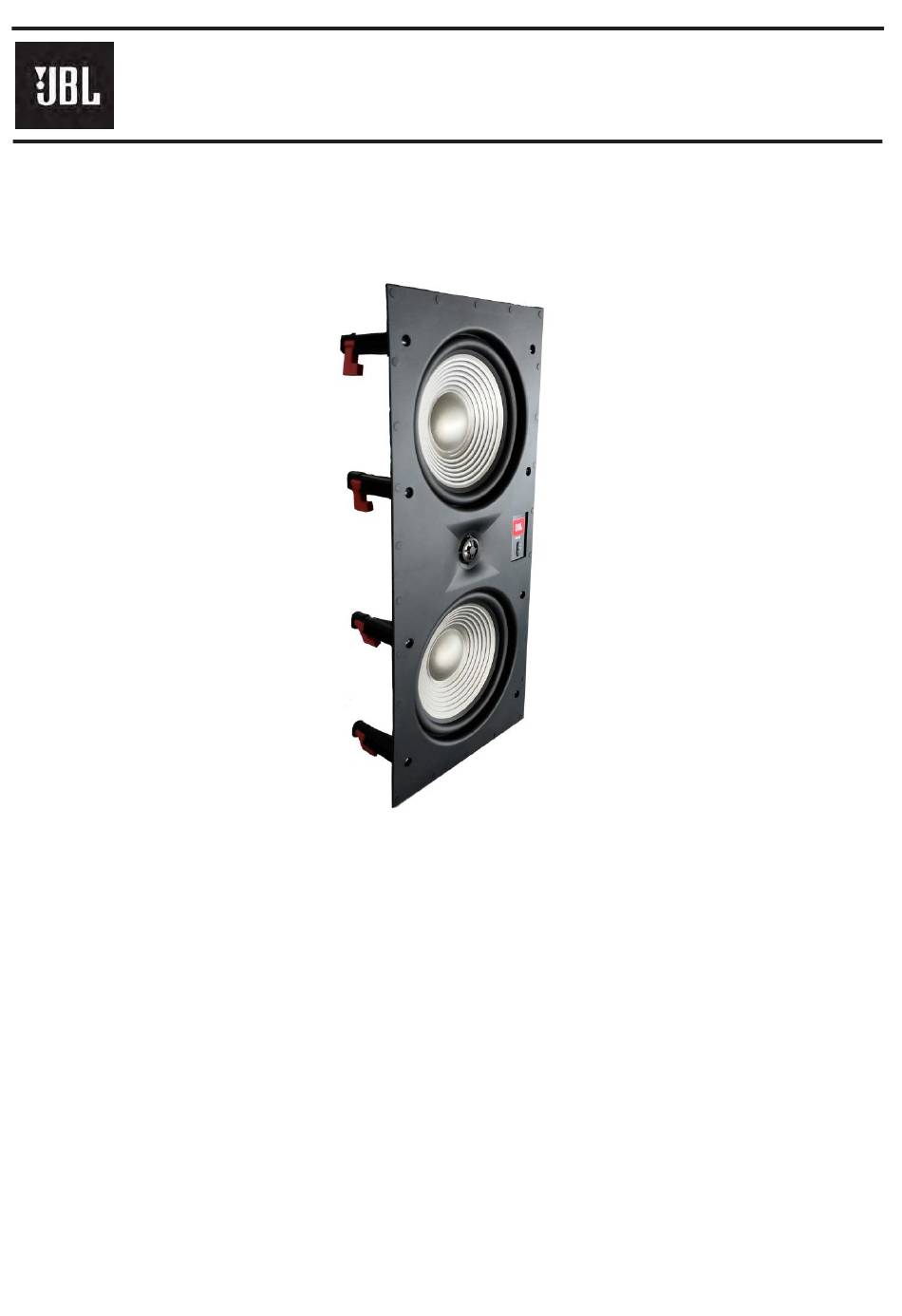

JBL STUDIO 2
ARCHITECTURAL SPEAKER
SKU: JBL Studio 2 88IW
Studio 2 88 IW
CONTENTS
Safety Instruction .................................................................................................... 2
Technical Specifications ........................................................................................... 5
Disassembly Instruction........................................................................................... 6
Circuit Diagram & PCBA Layout ............................................................................... 8
Mechanical Exploded View ..................................................................................... 10
Spare Parts List ...................................................................................................... 11
Revision List ........................................................................................................... 12
Released by Global Quality
harman/kardon, Inc.
Ver. 1.0 July./2019
8500 Balboa Blvd.
Northridge,CA 91329
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for JBL Studio 2 88 IW
Summary of Contents for JBL Studio 2 88 IW
- Page 1 Service Manual JBL STUDIO 2 ARCHITECTURAL SPEAKER SKU: JBL Studio 2 88IW Studio 2 88 IW CONTENTS Safety Instruction ....................2 Technical Specifications ................... 5 Disassembly Instruction................... 6 Circuit Diagram & PCBA Layout ................8 Mechanical Exploded View ..................10 Spare Parts List ......................
- Page 2 Important Safety Instructions Read these instructions. CAUTION Keep these instructions. Heed all warnings. Follow all instructions. RISK OF ELECTRIC SHOCK. DO NOT OPEN. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings.Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
- Page 3 ELECTROSTATICALLY SENSITIVE(ES) DEVICES Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor "chip" components.
- Page 4 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.).
- Page 5 1" (25mm) Pivoting CMMD ® Lite Tweeter © 2017 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice.
- Page 6 Disassembly instruction(main unit) Note: In some service positions the components or copper patterns of one board may risk touching its neighbouring PCB boards or metallic parts. To prevent such short‐circuit use a piece of hard paper or other insulating material between them. DISASSEMBLY INSTRUCTIONS (Main unit) Crossover disassembly Remove the grille...
- Page 7 Woofer disassembly Dog disassembly Remove 8 screws a) Remove 8 screws Remove woofer b) Remove 8 dogs...
- Page 8 Principle diagram of the crossover (Studio 2 88IW)
- Page 9 Principle diagram of the crossover (Studio 2 88IW)
- Page 10 Mechanical Exploded View (Main Unit) STUDIO2 88IW Pos. No. Part Name SAP Description Usage NT-88IW-01 Grille PC-6IC-01 Grille trim FT-88IW-01 Grille scrim PK-IW65-03 Foam gasket SR-1845-88F Dog screw MG-0750-15P Magnet SW-IC65-02 Switch cover AL-LCR5-05 Logo FP-88IW-01 Baffle PL-0023-01 Washer PK-88IW-01 Gasket on baffle PK-IW80-02 Gasket on baffle...
- Page 11 Spare Parts POR - JBL Studio 2 88IW Brand Product Name Part Number SAP Description Usage Pos. No. Studio 2 88IW 200W41704 WOOFER STUDIO2 88IW Studio 2 88IW 025D51604 TWEETER STUDIO2 88IW CROSSOVER PCB ASSEMBLY STUDIO2 88IW Studio 2 88IW...
- Page 12 REVISION LIST Version 1.0 * Initial release. July. 2019...
