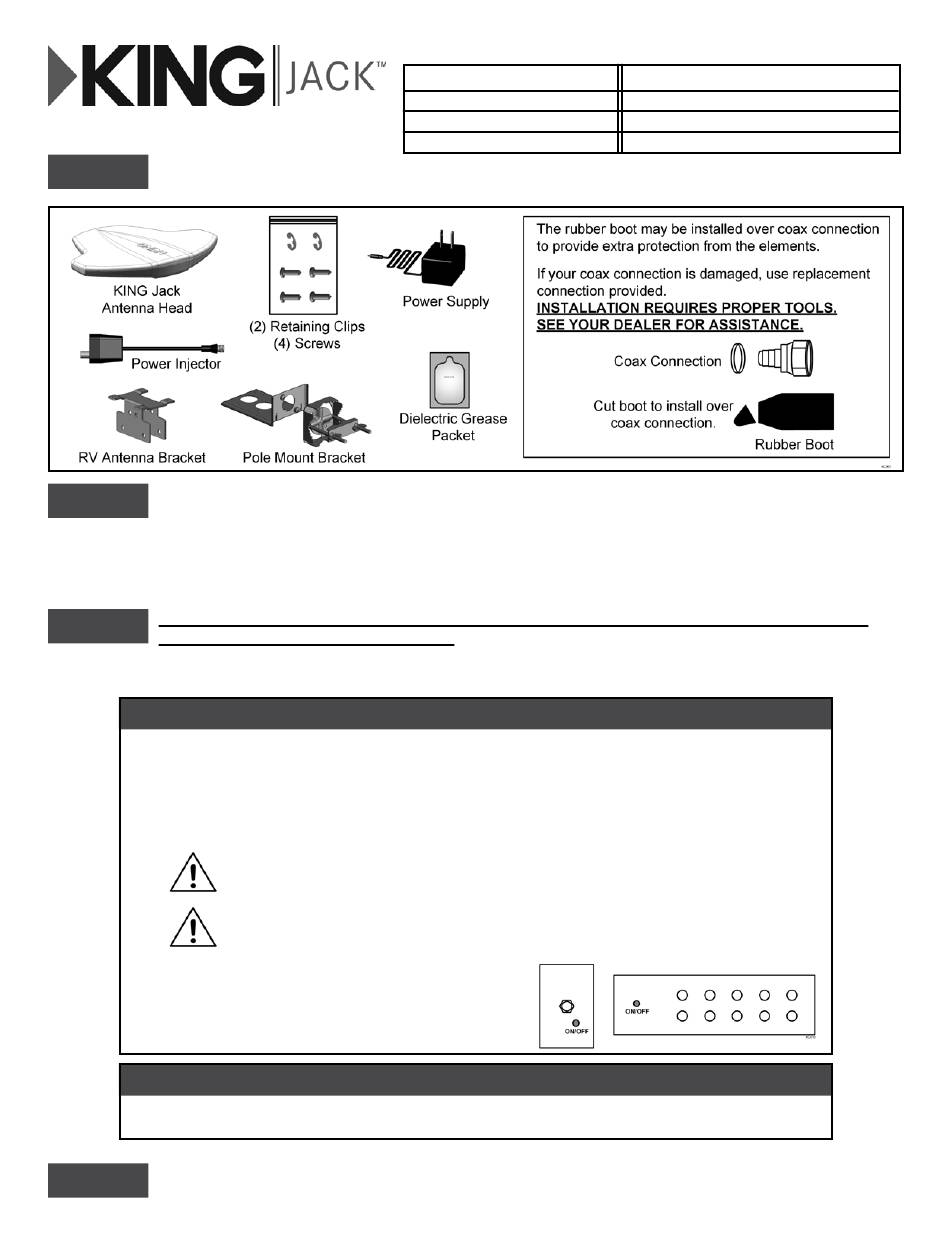

KING Jack OA8300 Manual

STEP 1: STEP 1
Verify all components and parts are included.
STEP 2:
STEP 2

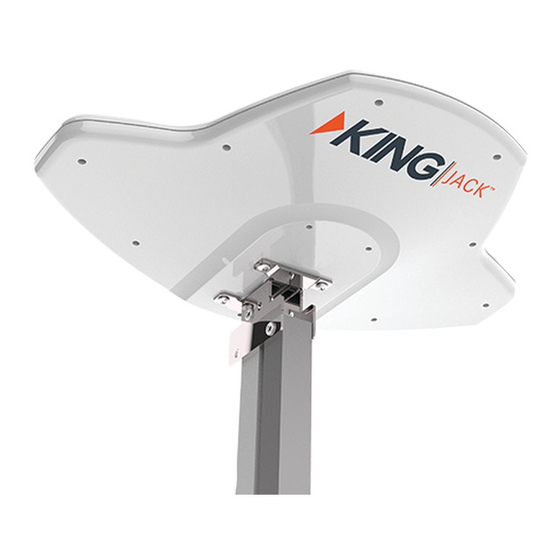

Install the KING Jack Antenna in one of two ways (page 2):
• RV Mounting: Mount to a bat wing style retractable arm using the supplied RV Antenna Bracket.
• Pole Mounting: Mount to a stationary pole (on a house for example) using the supplied Pole Mount
STEP 3:
READ THE FOLLOWING INFORMATION CAREFULLY, THEN CHOOSE A CONNECTION OPTION
STEP 3
ON PAGE 3 AND MAKE CONNECTIONS.
The KING Jack antenna is an amplified antenna that requires +12 volts power.
When using an existing power injector already in the RV
When replacing an existing amplified antenna that has an existing power injector, just replace
the antenna head assembly and verify that you have power to the KING Jack antenna when the
wall switch power injector is "ON." A red LED light on the bottom of the KING Jack antenna will
illuminate when +12 volts is present and the internal amplifier is powered. Do not use both the
existing power injector and the power injector supplied with the KING Jack Antenna!
Using two power injectors in the circuit can cause the KING Jack Antenna
When using the KING Jack antenna with the supplied power injector
Verify that any existing power injector has been disconnected.
STEP 4:
STEP 4
Read the OPERATING INSTRUCTIONS on page 4 for antenna pointing instructions.
Model OA8300
Reception Frequencies
VHF: 54-216 MHz
UHF: 470-698 MHz
FM: 87.9-107.9 MHz
Bracket. DO NOT MOUNT TO A POLE ON A VEHICLE.
power supply to overheat, possibly causing injury or severe damage.
Use either the existing power injector or the KING Jack power injector.
WARNING: DO NOT USE BOTH POWER INJECTORS!
A typical power injector for an
existing RV antenna will be a wall
plate or an A/V distribution box with
an ON/OFF type switch.
Amplified HDTV Antenna
Page 1
Power Supply: AC/DC Adaptor
Input: 120V / 60Hz / 90 mA
Output: 12V / 100mA
