AUS OA8300 08-03-17

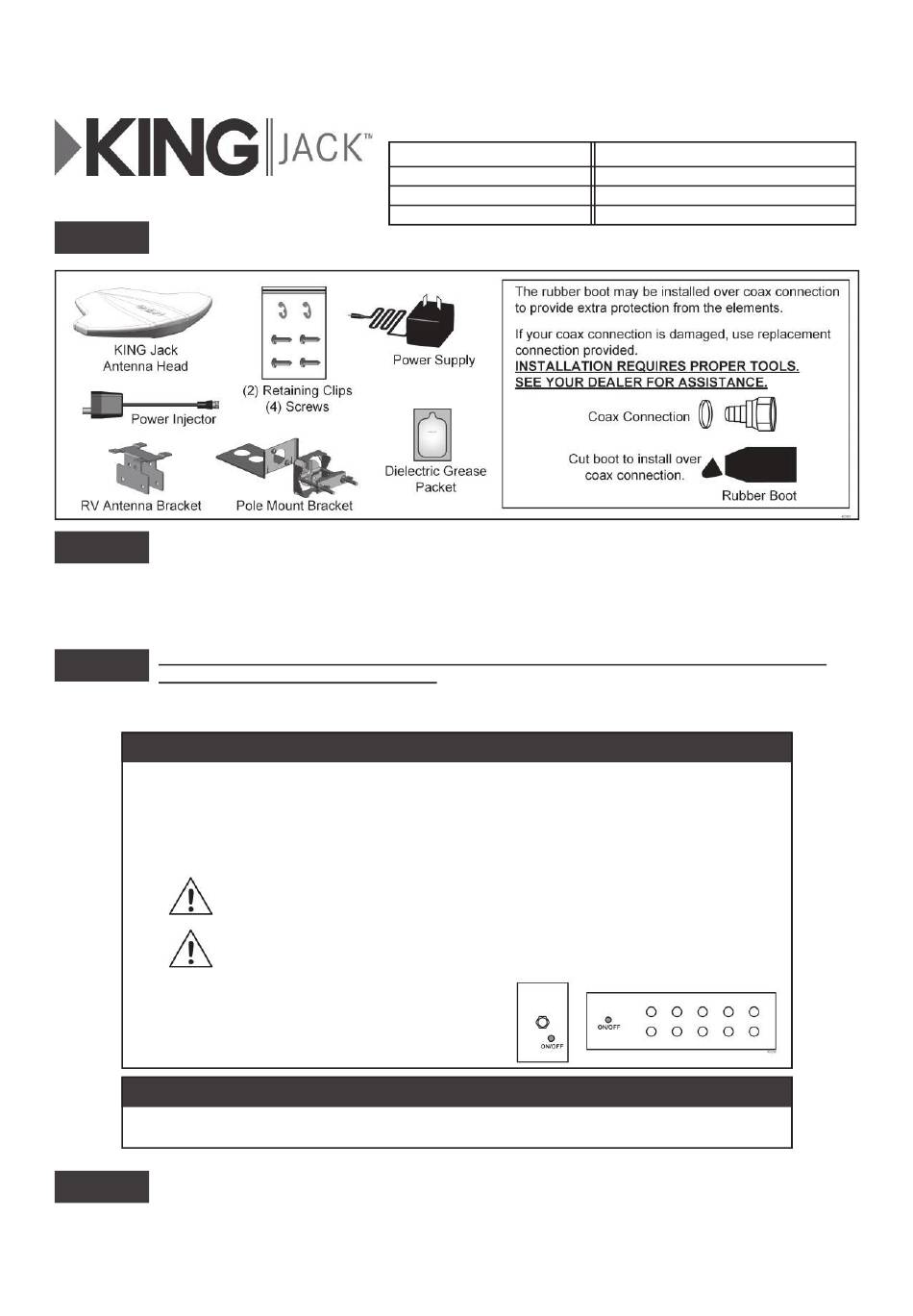

STEP 1:
STEP 1
Verify all components and parts are included.
STEP 2:
STEP 2
Install the KING Jack Antenna in one of two ways (page 2):
• RV Mounting: Mount to a bat wing style retractable arm using the supplied RV Antenna Bracket.

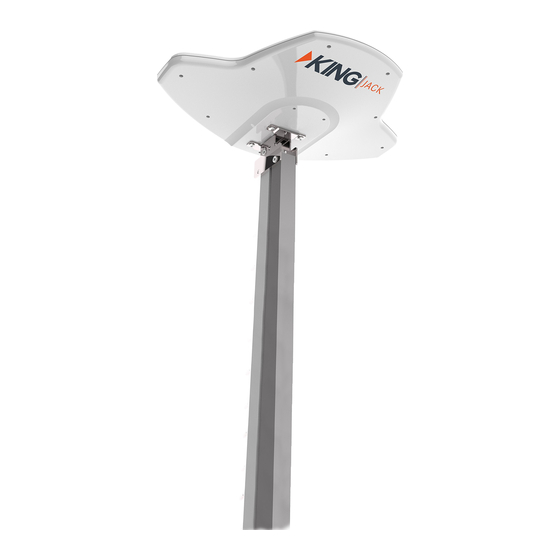

• Pole Mounting: Mount to a stationary pole (on a house for example) using the supplied Pole Mount
STEP 3:
READ THE FOLLOWING INFORMATION CAREFULLY, THEN CHOOSE A CONNECTION OPTION
STEP 3
ON PAGE 3 AND MAKE CONNECTIONS.
When replacing an existing amplifi ed antenna that has an existing power injector, just replace
the antenna head assembly and verify that you have power to the KING Jack antenna when the
wall switch power injector is "ON." A red LED light on the bottom of the KING Jack antenna will
illuminate when +12 volts is present and the internal amplifi er is powered. Do not use both the
When using the KING Jack antenna with the supplied power injector
STEP 4:
STEP 4
Read the OPERATING INSTRUCTIONS on page 4 for antenna pointing instructions.
Bracket. DO NOT MOUNT TO A POLE ON A VEHICLE.
The KING Jack antenna is an amplifi ed antenna that requires +12 volts power.
When using an existing power injector already in the RV
existing power injector and the power injector supplied with the KING Jack Antenna!
Using two power injectors in the circuit can cause the KING Jack Antenna
power supply to overheat, possibly causing injury or severe damage.
Use either the existing power injector or the KING Jack power injector.
WARNING: DO NOT USE BOTH POWER INJECTORS!
A typical power injector for an
existing RV antenna will be a wall
plate or an A/V distribution box with
an ON/OFF type switch.
Verify that any existing power injector has been disconnected.
More information https://www.caravansplus.com.au
Model AU8300
Reception Frequencies
VHF: 54-216 MHz
UHF: 470-698 MHz
FM: 87.9-107.9 MHz
Page 1
Page 1
Amplifi ed HDTV Antenna
Power Supply: AC/DC Adaptor
Input: 230-240V / 50Hz / 0.2A
Output: 12V / 100mA
Advertisement
Table of Contents
Related Manuals for KING Jack AU8300
Summary of Contents for KING Jack AU8300
- Page 1 KING Jack antenna when the wall switch power injector is “ON.” A red LED light on the bottom of the KING Jack antenna will illuminate when +12 volts is present and the internal amplifi er is powered. Do not use both the...
- Page 2 1. Turn off antenna power injector at wall switch or A/V switch and raise the existing antenna. 2. Attach the RV antenna bracket to the KING Jack antenna with the 4 supplied screws. 3. Unscrew coax cable and remove existing bat wing style antenna (if present) from the retractable arm (keep retaining pins and clips).
- Page 3 IMPORTANT! Your RV may have more than one wall plate. Do not use the power injector supplied with the KING Jack antenna if an existing power injector is present. NOTE: Illustration purposes only. Other confi gurations exist.
- Page 4 LIMITED WARRANTY Every new KING Jack HDTV Antenna is covered by the following one-year parts limited warranty from the date of original purchase: • One-year parts warranty: The customer is not responsible for the cost of replacement parts if the original part is determined to be defective under the terms of the warranty. The customer is responsible for the cost of replacement parts after one year.
