Assembly and Operating Instructions for

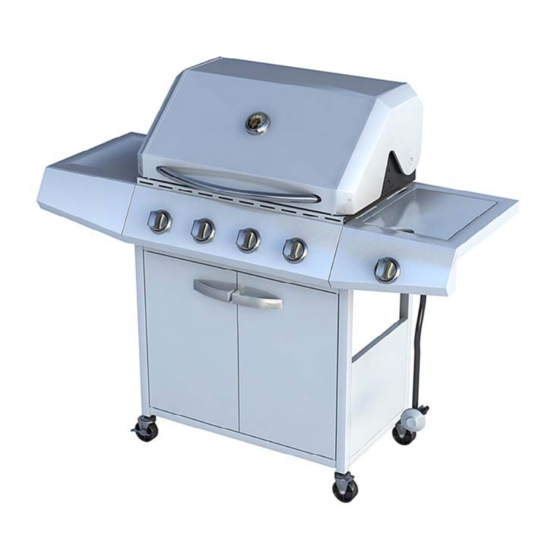

4 Burner Stainless Steel Gas BBQ
Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
Model KS10002
For outdoor use only. Not for commercial use.
Use only Propane regulator 37mbar.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
rights.
Retain these instructions for future reference.
Leak test your barbecue annually. Check the hose connections are tight and leak
test them each time you reconnect the gas bottle.
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS10002 and is the answer not in the manual?

Questions and answers

Marshall Wylie
May 12, 2025

Hello Marshall Wylie here was wondering where I can get parts for my BBQ KS10002 I need one grill grate and four heat tent plates

User image 6822263bb42bc
1 comments:
Mr. Anderson
May 20, 2025

You can find parts for the Phoenix BBQ KS10002, including a grill grate, at Grill Parts Zone. They offer stainless steel grates compatible with models like the Phoenix KS10002. For heat tent plates, compatible replacements such as porcelain steel heat plates are available from brands like Uniflasy, SHINESTAR, and Hiorucet, which fit similar models like Dyna-Glo and Uniflame. These heat plates measure about 15 inches and are sold in packs.

This answer is automatically generated

Summary of Contents for Phoenix KS10002

  • Page 1 Assembly and Operating Instructions for 4 Burner Stainless Steel Gas BBQ Photographs are not to scale. Specifications subject to change Model KS10002 without prior notice. 0359 • For outdoor use only. Not for commercial use. • Use only Propane regulator 37mbar.
  • Page 2: Parts List

    A. Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding Hardware Reference Diagram for your barbecue model. Code Part Grill assembly Warming rack Cooking grill Heat tent Grease cup Grease tray assembly...
  • Page 3 B1. Parts Diagram Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding Hardware Reference Diagram for your barbecue model.
  • Page 4 Specifications subject to change without prior notice. E5 Shoulder E3 M6*8 Bolt 4PCS E4 Shoulder Bolt 2PCS E2 M6*8 Bolt 4PCS Bolt 2pcs KS10002 E3 M6 Washer 4PCS E4 M6 Gaddi 4pcs E4 M6 Washer 4PCS E1 M6*12 Bolt 30PCS E1 M6*12 Bolt 30PCS...
  • Page 5: Tools Needed For Assembly

    C. Assembly TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Philips/cross-point screwdriver, adjustable spanner or metric spanner set. This barbecue requires two people for assembly. Please remove all packaging materials from all individual parts before assembling. Please lay out all nuts and bolts and check lengths before assembling. Whilst every care is taken during the manufacture of this product, care must be taken during the assembly in case sharp edges are present.
  • Page 6 Fig 3b Fig 3a Fix the Locking Casters (D11) to the Left Front Leg (D2) and Left Rear Leg (D1) as fig 3a. Fix the Casters (D9) to the Right Front Leg (D4) and Right Rear Leg (D3) as fig 3b. Fig 4 Fix the Cart Side Panel (D6) on the Left Front Leg (D2) and Left Rear Leg (D1) using M6*12 bolts (E1) as fig 4.
  • Page 7 Fig 5 Fix the Cart Side Panel (D6) on the Right Front Leg (D4) and Right Rear Leg (D3) using M6*12 bolts (E1) as fig 5. Fix the bolts tightly by the screwdriver. Fig 6 Fix the Door Transom (D5) on the Left Front Leg (D2) and Right Front Leg (D4) using M6*12 bolts (E1) as fig 6.
  • Page 8 Fig 7 Fix the Right Side Burner Assembly (C4) on the Right Front Leg (D4) and Right Rear Leg (D3) using M6*12 bolts (E1) as fig 7. Fix the bolts tightly by the screwdriver. Fig 8 Fix the Left Side Table Assembly (C6) on the Left Front Leg (D2) and Left Rear Leg (D1) using M6*12 bolts (E1) as fig 8.
  • Page 9 Fig 9 Fig 9a Fig 9b Fix the Left Front Leg (D2) and Left Rear Leg (D1) on the Grill Assembly (A1) using M6*12 bolt (E1) as fig Fix the Right Front Leg (D4) and Right Rear Leg (D3) on the Grill Assembly (A1) using M6*12 bolt (E1) as fig 9b.
  • Page 10 Fig 9c Fig 9d Fix the Grill Assembly (A1) on the Left Rear Leg (D1) and Left Front Leg (D2) using M6*12 bolt (E1) as fig 9c. Put the M6 Washer (E3) between the M6*12 bolt (E1) and the Grill Assembly (A1). Fix the Grill Assembly (A1) on the Right Front Leg (D4) and Right Rear Leg (D3) using M6*12 bolt (E1) as fig 9d.
  • Page 11 Fig 10b Fig 10a Loosen the pre-assembled screws from the right front door handle. Then fix the handle on the Right Front Door (D7) using those screws as fig 10a. Insert the Right Front Door (D7) on the Bottom Assembly (D10) and fix on the Door Transom (D5) using the Shoulder Bolt (E4) as fig 10b.
  • Page 12 Fig 12 Fix the Side Table Panel (C7) on the Side Table Assembly (C6) using M6*8 bolt (E2). Then fix the Side Table Panel (C7) on the main control panel of the Grill Assembly (A1) using M6*12 bolt (E1) as fig 12. Fig 13 Fix the Side Burner Panel (C8) on the Side Burner Assembly (C4) using M6*8 bolt (E2).
  • Page 13 Fig 14a Fig 14b 1. Loose 2pcs of pre-assembled screws from the side burner valve bracket on HVR of Grill Assembly (A1) as fig 14a. 2. Fix the valve on the Side Burner Panel (C8) using those 2pcs of screws.Put the Knob (C5) on the Side Burner Panel (C8) as fig 14b.
  • Page 14 Fig 15 Put the Side Burner Grate (C1) on the Right Side Burner Assembly (C4) and align with the holes as fig 15. Fig 16 Put the Heat Tent (B3), Cooking Grill (B2) and Warming Rack (B1) on the Grill Assembly (A1) as fig 16.
  • Page 15 Fig 17 Put the Grease Cup (B4) at the bottom of the Grease Tray Assembly (B5). Then put the whole Grease Tray Assembly (B5) at the bottom of the Grill Assembly (A1) as fig 17. Fig 18 Complete the assembly as fig 18.
  • Page 16: Installation

    YOU MUST HAVE THE PROPER REGULATOR D. Important Information AND BOTTLE IN ORDER FOR THE BARBECUE TO OPERATE SAFELY AND EFFICIENTLY. USE OF Please read these instructions carefully before AN INCORRECT OR FAULTY REGULATOR IS assembly and use. DANGEROUS WILL INVALIDATE WARRANTY.
  • Page 17: Operation

    applicable) should be open during preheating. G. Operation • After completion of preheating, the burner should normally be turned down to a lower position for G1. Warning best cooking results. • Before proceeding, make certain that you understand the IMPORTANT INFORMATION G5.
  • Page 18: Technical Specifications

    Model Number KS10002 serious damage to your barbecue. If this happens, the gas should be immediately turned off at the Gas Category I3P (37) bottle.
  • Page 19: Troubleshooting

    L. Troubleshooting Problem Possible Cause Solution Burner will not light using the LP gas cylinder is empty Replace with full cylinder ignition system Faulty regulator Have regulator checked or replace Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected on Reconnect wire...
