Summary of Contents for Phoenix GM1-203
-
Page 2: Operating Instructions
OPERATING INSTRUCTIONS FOR THE GAS BARBECUE GRILL Model: GM1-203 3 Burner Home WARNING FOR YOUR SAFETY FOR OUTDOOR USE ONLY (OUTSIDE ANY ENCLOSURE) Type of Gas: Butane, Propane, LPG Read this instruction carefully and ensure that your grill is properly installed, assembled, maintained and serviced in accordance to these instructions. -
Page 3: Technical Information
Technical Information: MODEL NO.: GM1-203 DESCRIPTION: 3 Burner Home 0359-18 TOTAL HEAT INPUT: 10.8 kW (786g/h) PIN:0359CO1365 GAS CATEGORY: 3B/P(30) 3B/P(50) 3B/P(37) 3+(28-30/37) Butane Propane LPG GAS MIXTURES TYPES OF GAS: GAS PRESSURE: 28-30 mbar 37 mbar 30 mbar 50 mbar... - Page 4 USE AND CHARACTERISTICS The barbecue grill is safe and easy to use. The specified gases for use are butane at 28 to 30 mbar, propane at 37 mbar, butane/propane mixtures at 30 mbar, butane/propane mixtures at 37 mbar and butane/propane mixtures at 50 mbar. Please ensure you only use your barbeque at the correct pressure the appliance is designed for.
-
Page 5: Instructions For Use
INSTRUCTIONS FOR USE Follow these instructions carefully to avoid seriously damaging your barbecue and causing injury to yourself and to property. 1. Assemble the barbecue following the assembly instructions carefully. 2. Connect the gas hose to the barbecue. Connect the regulator to the hose. 3. -
Page 6: Connecting The Gas Cylinder To The Appliance
Warning: If the burner fails to ignite, turn the control knob off (clockwise) and also turn the cylinder valve off. Wait five minutes before attempting to relight with ignition sequence. The pan max diameter is 240mm，min diameter is 120mm. CONNECTING THE GAS CYLINDER TO THE APPLIANCE This appliance is only suitable for use with low-pressure butane or propane gas and fitted with the appropriate low-pressure regulator via a flexible hose. -
Page 7: Cleaning And Care
STORAGE OF THE APPLIANCE Storage of an appliance indoors is only permissible if the cylinder is disconnected and removed from the appliance. When the appliance is not to be used for a period of time it should be stored in its original packaging in a dry dust free environment. GAS CYLINDER The maximum diameter and the maximum height of the cylinder is 310 mm and 540 mm as shown in (Fig.1). - Page 8 If the inside surface of the barbecue lid has the appearance of pealing paint, baked on grease build up has turned to carbon and is flaking off. Clean thoroughly with strong hot soapy water NEVER USE OVEN CLEANER solution. Rinse with water and allow to completely dry. INTERIOR OF BARBECUE BOTTOM Remove residue using brush, scraper and/or cleaning pad then wash with a soapy water solution.
- Page 9 PHOENIX BBQ GUARANTEE Euroactive BBQ’s agrees that if any defect in materials or workmanship appears in the product within the given guarantee after the original date of customer purchase, it will issue replacement parts. This applies only if the barbecue has been subject to: a.
- Page 10 REGISTER NOW! To benefit from the Euroactive BBQ TEN YEAR Burner Guarantee register by filling out the below form and posting to Euroactive. Only by registering within 30 days from date of purchase will the parts guarantee be valid for up to ten years.
- Page 17 Only turn H screw 50% of the way for the moment...
Need help?
Do you have a question about the GM1-203 and is the answer not in the manual?
Questions and answers

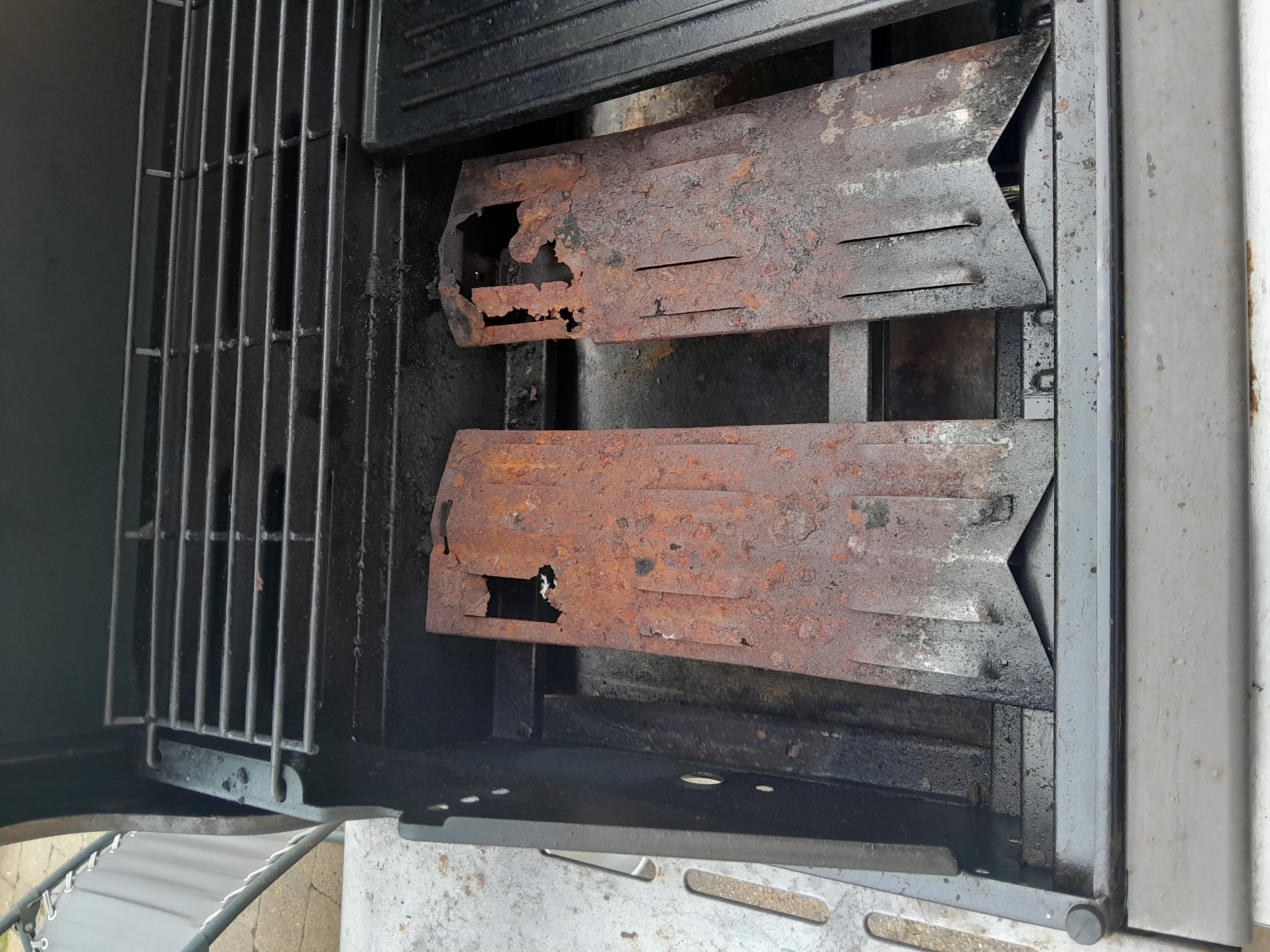

Need item no 5 x 2 please
