Rev.E 15/07/2021
USER MANUAL
Energy Storage
System
Please read this manual carefully before installing
your set and retain it for future reference.
MODEL

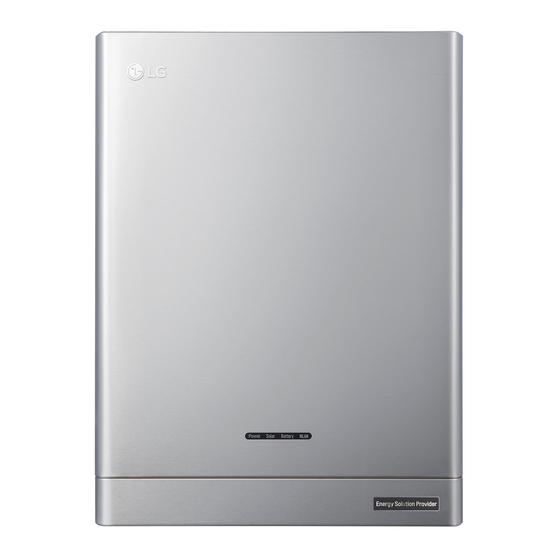

LG ESS Home 10 (D010KE1N211)
LG ESS Home 8 (D008KE1N211)
*MFL70921601*
https://www.lg.com/global/business/ess/business-resources/download
Copyright © 2019-2021 LG Electronics Inc. All Rights Reserved.

Advertisement

Table of Contents
loading

Related Manuals for LG ESS Home 10

Summary of Contents for LG ESS Home 10

  • Page 1 Energy Storage System Please read this manual carefully before installing your set and retain it for future reference. MODEL LG ESS Home 10 (D010KE1N211) LG ESS Home 8 (D008KE1N211) *MFL70921601* https://www.lg.com/global/business/ess/business-resources/download Copyright © 2019-2021 LG Electronics Inc. All Rights Reserved.

  • Page 2: Getting Started

    Electrical shock hazard. Do not touch uninsulated wires when the product cover is removed. In the event of fault, the system must not be restarted. Product maintenance of repairs must be If non LG Electronics batteries are connected to LG PCS, it will void warranty of the PCS and battery.
  • Page 3 Getting Started The contents included in this box are power conditioning system and its accessories, and the entire weight is very heavy. Serious injury may occur due to the heavy weight of the package with PCS and accessories. Therefore, special care must be taken in handling. Make sure to have at least two persons deliver and remove the package.
  • Page 4 Connecting the product to external devices could result in serious damage to your equipment. Serving of batteries should be performed or supervised by LG service person or trained installer. The battery does not discharged when the load is under the certain level.

  • Page 5: Table Of Contents

    Connecting to a Mobile Device ... . 9 Installing 'LG EnerVu Plus' App ..9 Connect via Home WLAN ... . .10 Connect directly to ESS .

  • Page 6: Led Indications

    Getting Started LED Indications Color Description Grid is not connected. Power White Grid is connected. White (Blink) PCS Fault Energy is not being generated. Solar Green Energy is being generated. White (Blink) PCS Fault Stand by Green Battery is in charging Battery Blue Battery is in discharging...

  • Page 7: Choice Of Location

    Getting Started Symbol Description Symbol Description Refer to the installation manual Caution, risk of danger or operating manual. Caution, risk of electric shock, Caution, hot surface energy storage timed discharge The relevant equipment complies with the requirements in the EU guidelines.

  • Page 8: Connection Overview

    Getting Started Connection Overview Battery 1 Grid Energy meter Battery 2 PV Array 3 PV Array 1 PV Array 2 WARNING Electrical shock hazard. Do not touch uninsulated wires when the PCS cover is removed. Before starting electrical cable connections or removing the cover, turn off the AC circuit breaker, PV switch and DC circuit breaker of the battery.

  • Page 9: Operating

    Operating Connecting to a Mobile Device To connect the system to a mobile device, the LG EnerVu Plus mobile application must be installed on your mobile device. Search and download ‘LG EnerVu Plus’ application from Apple App store or Google Play store.

  • Page 10: Connect Via Home Wlan

    Connect via Home WLAN Preparation To connect the mobile device with the system via home network, the system must be connected Run ‘LG EnerVu Plus’ app on your mobile device. connection method selection screen. The connection will automatically be proceeded and main screen appears when the connection is successful.

  • Page 11: Connect Directly To Ess

    Operating Connect directly to ESS Run ‘LG EnerVu Plus’ app on your mobile device. connection method selection screen appears. Press and hold the wireless connection button blue. next step. If the connection has not been made for 5...
  • Page 12 PCS. If the connection failed, try after turning off the mobile data option on your mobile device. Android : If the connection is successful, main iOS : If the connection is successful, run [LG...

  • Page 13: Ess Status Menu

    Operating ESS Status Menu above, it displays detailed information. The displayed values are not exact values. The values may differ from actual values. Please turn on the AP again, if there is a problem at connection with AP. Displays a notice list of system status. When there is an error occurred, error code, time and date are displayed on the list.
  • Page 14 Operating on the screen. Today’s self-consumption rate : Displays rate of the consumed energy amount from ESS today. This month’s CO2 reduction : Displays monthly amonut of CO2 reduction. Generation: Displays generated energy information. Feed-in : Displays consumed energy information. PCS : Displays PCS information.
  • Page 15 Operating Displays detailed status of energy consumed in household. Load Power : Current power consumed in household Today Total consumption : Amount of consumed energy today From PV : Amount of energy from PV to household today From Battery : Amount of energy from the battery to household today From Grid : Amount of energy from the power grid to household today...
  • Page 16 Operating Displays charging and discharging status of Battery Status : Charging/Discharging/ Standby Battery SOC: Current SOC (state of charge) level Winter Mode : Shows winter mode status. DC Power : Current output power from battery Today Charging : Amount of charged energy to the battery today.

  • Page 17: Ess Setting Menu

    Operating ESS Setting Menu screen. Language Select [ Battery Select [ [Winter mode] The minimum SOC level of winter mode can be changed by the installer only. [Backup mode] The minimum SOC level of Backup mode can be changed by the installer only. [Operation Mode] your own.

  • Page 18: Open Source

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@ lge.com.

  • Page 19: Ess Information Menu

    Operating ESS Information Menu Energy Analysis You can review the amount of energy generated, consumed, sold and purchased on this system. The statistical data of the day, week, month and year are supported. PV Graph Analyzes the energy generated and sold from PV within selected period and displays as a graph. Generated energy is marked with green and sold energy is marked with purple on the line graph.

  • Page 20: Ats Time Setting Guide

    Operating ATS time setting guide ATS Box - Version 10013677 / 10013678 After 5 seconds of recovering grid power from the outage, the PCS stops the backup mode. At the same time, supplies power to the critical load and the PCS. The PCS will be restarted in normal mode.

  • Page 21: Appendix

    It is recommended to check the operating status and connection status once a year. It should be done by technician or authorized people. Contact authorized dealer or where you purchased. Contact If you have technical problems or questions, contact installation company or LG Electronics. 1. Installation Company Address : Tel : 2.

  • Page 22: Disposing The Product

    LG Service Helpline, or other independent service providers for advice. Removal of the battery will involve dismantling of the product case, disconnection of the electrical cables/contacts, and careful extraction of the battery cell using specialized tools.

  • Page 23: Specifications

    Appendix PV Input LG ESS Home 8 LG ESS Home 10 Input Voltage Range 150 ~ 1,000 V Max. DC Power (per channel) 12 kW (6 kW) 13.5 kW (7.5 kW) Usable MPP Voltage Range 150 ~ 800 V Max. Input Current per MPPT 13 A Max.
  • Page 24 Type 10013677, Type 10013678, Type 10013679 An external ATS is required for stand alone mode. For LG Electronics’ ATS Box, you can use enwitec. For installation and connection to the ESS, refer to the ATS Box manual. Battery LGHB 7H...
