- Page 1 MOVEZ User manual MOVEZ- Z-Wave controlled motor for indoor blinds and shades...
-
Page 2: Table Of Contents
WAYS TO GET CORRECT POSITION FOR INSTALLATION ....................19 INSTALL MOUNTING PLATE .............................. 21 ATTACH MAIN DEVICE TO MOUNTING PLATE ........................22 INSTALLING BATTERY PACK .............................. 23 DISPOSAL AND RECYCLING INFORMATION ........................24 info@teptron.com | www.teptron.com | Box 1009, 432 13 Varberg... -
Page 3: Warnings And General Precautions For Safety
In these conditions always remove the batteries and use a suitable USB power adapter to power the product. Exact specification for the USB power adapter can be found in this manual. Read all safety instructions for any other products and/or accessories before using with the product. Teptron AB is not responsible for the operation of, or any damage caused by, third-party accessories or their compliance with safety and regulatory standards. -
Page 4: Regulatory And Safety Notices
European Union (EU) Declaration of Conformity with Regard to the EU Directive 1999/5/EC Teptron AB is authorized to apply the CE Mark on MOVE, model name: MOVE MZ1811, thereby declaring conformity to the essential requirements and other relevant provisions of Directive 1999/5/EC. -
Page 5: About The Product

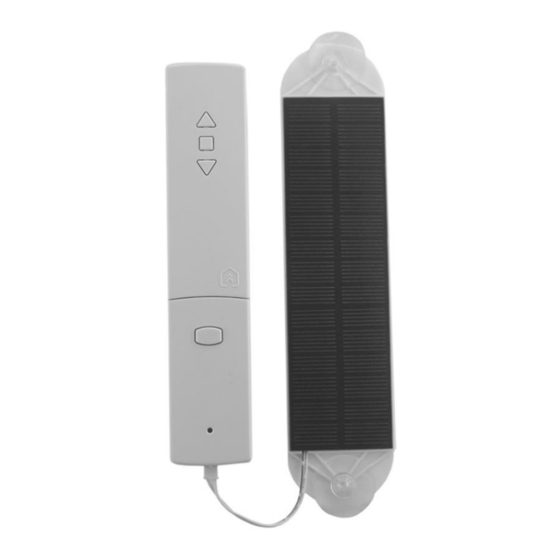

Therefore the motor can be retrofitted to nearly all different manually controlled indoor blinds and shades. No matter if its continuous cord loops, bead chain loop, bead chin with connectors or just reeling in a cord MOVEZ will be able to operate it. MOVEZ is installed enclosed wall bracket. - Page 6 Picture 2-Main device Picture 3-Parts info@teptron.com | www.teptron.com | Box 1009, 432 13 Varberg...
-
Page 7: Interoperability
1. Set the gateway into inclusion mode (See gateway’s product manual for more information). 2. Set MOVEZ into learn mode. Learn mode is set by press and holding stop button (picture 2, position 2) for 10 plus seconds. Once both red and green led indicator start blinking together (picture 2, position 5), release stop button to issue node information frame. -
Page 8: Force Resetting The Device
9 Device basic functionality MOVEZ implemented with the support of Basic Command Class so that legacy devices can be able to control MOVEZ with basic functionality. Below is the mapping shown, Basic Set = 255 maps to Multilevel Switch Set = 99 (if value of configuration parameter 03, is set to 1) Basic Set = 255 maps to Multilevel Switch Set = Last known non-zero value. -
Page 9: Multilevel Switch Command Class, Version 3
12 Supervision Command Class Implementation As this device supports S2 security class, Supervision command class is implemented for high level security reporting. Because duration field is unknown when motor running MOVEZ follow the below reporting pattern, • If motor is moving in either direction, an immediate report will be sent with, 1. -
Page 10: Configuration Parameters
14 Configuration Parameters MOVEZ support user configuration parameters so that user can set their preferences. Parameter #01 – Set motor’s up speed Size 1 byte (decimal) Range 1 to 100 Default value Description: Configures the up speed of the motor, 1=lowest and 100=highest speed. -
Page 11: Device Classification
With reliable, robust performance field-tested in thousands of homes, the Z-Wave protocol is the best choice for battery-powered door locks and many other home automation applications. info@teptron.com | www.teptron.com | Box 1009, 432 13 Varberg... -
Page 12: Local Switch Operations
18 Local switch operations It is will be possible to click on either the up or the down button (picture 2, position 1 and 3) to make MOVEZ go to the respective end positions. MOVEZ can always be stopped by clicking the stop button at the device. This is true no matter if the initial run command originates from the push/click of buttons “up”... -
Page 13: Battery Pack
21 Battery pack It is not possible to disassemble the MOVEZ battery pack. The battery pack can either be charge while still attached to the main device or detached from the main device as a standalone device. Picture 4-Battery The release button (picture 4, position 1) is used when detaching the battery pack from the MOVEZ device. -
Page 14: Calibration Of Endpoints
24 Calibration of endpoints MOVEZ is calibrated with the physical buttons (picture 2, position 1, 2 and 3). Because MOVEZ can be installed in many ways the buttons up (picture 2, position 1) and down (picture 2, position 3) can make the product on which MOVEZ is installed on run in different directions depending on installation. -
Page 15: Installation Of The Motor And The Accessories
The motor inside MOVEZ has a torque of about 1Nm and incorrect installation and/or usage can be dangerous. Make sure that the cord or bead chain of the product you intend to install MOVEZ on is compatible, do not install if it does not fit. -
Page 16: Bead Chain Installation
Many different sizes of bead chain and connectors exist and MOVEZ is designed to fit as many as possible, but compatibility to make sure MOVEZ fits the product it’s about to be installed on need to be established before installation. -
Page 17: Cord Loop Installation
27.1 Mounting cord loop to pulley The cord needs to be taut enough, so the cord doesn’t slip in the cord loop spool. Picture 7-Cord loop pulley 27.2 Attaching cord loop Picture 8-Cord loop info@teptron.com | www.teptron.com | Box 1009, 432 13 Varberg... -
Page 18: Plain Cord Installation
28 Plain Cord Installation Products that are operated by just pulling a cord need some preparation in order for MOVEZ to operate them. 1. Remove all plastic parts from the cord 2. After removing the plastic parts make a knot on the end of the cord Picture 9-Preparing cord 28.1 Mounting cord to the spool... -
Page 19: Ways To Get Correct Position For Installation
Option 1 Use a template to mark-up the location for the device. Figure 12-Mounting plate mark-up Option 2 Use the mounting plate to mark-up the location of the device. Picture 13-Mounting plate info@teptron.com | www.teptron.com | Box 1009, 432 13 Varberg... - Page 20 The wall mounting plate used to attach the MOVEZ to the wall. Picture 14- Mounting plate Use screws and anchor to attach mounting plate to wall. Picture 15- Fastener info@teptron.com | www.teptron.com | Box 1009, 432 13 Varberg...
-
Page 21: Install Mounting Plate
Picture 16-Fixing Mounting plate Attach the bead chain to main device pulley as shown on picture below. Picture 17-Attaching main device info@teptron.com | www.teptron.com | Box 1009, 432 13 Varberg... -
Page 22: Attach Main Device To Mounting Plate
31 Attach main device to mounting plate Push main device towards the mounting plate to attach the main device to the wall mounting plate. Picture 18-Fixing main device Picture 19-Fixed main device info@teptron.com | www.teptron.com | Box 1009, 432 13 Varberg... -
Page 23: Installing Battery Pack
Make sure to alien the battery pack to main device and push it from underneath. Battery pack connection should line up with main device connection. Picture 20-Attaching battery pack Picture 21-Attached battery pack info@teptron.com | www.teptron.com | Box 1009, 432 13 Varberg... -
Page 24: Disposal And Recycling Information
MOVEZ must be disposed of separately from household waste. When MOVEZ reaches its end of life, contact local authorities to learn about disposal and recycling options, or simply drop it off at your local Teptron retail store or return it to Teptron.
