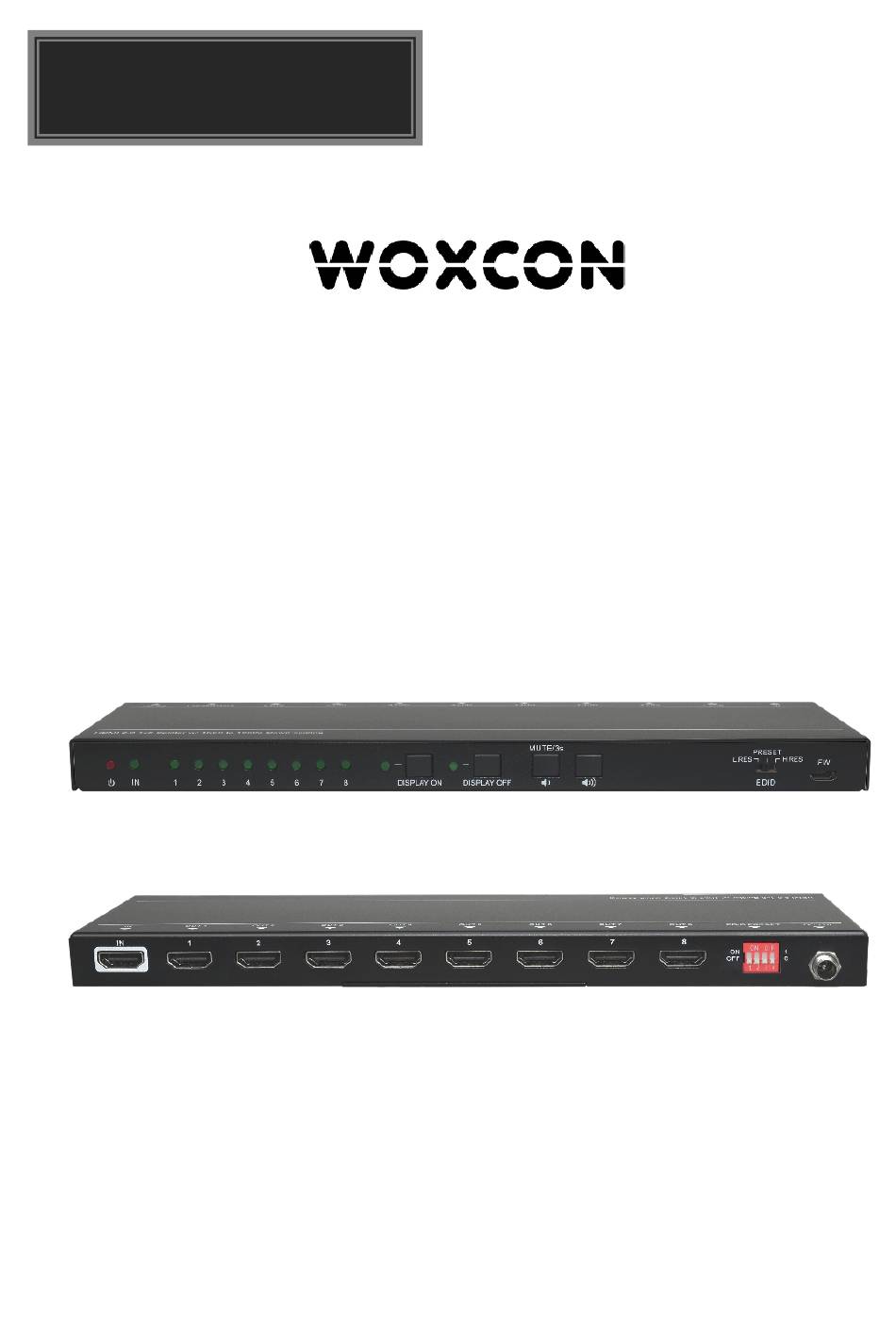

- Page 1 User Manual SUH8E-H2 HDMI 2.0 1x8 Splitter with 4K to 1080p Down-scaling All Rights Reserved Version: SUH8E-H2_2019V1.4...
-
Page 2: Safety Precaution
Statement Thanks for purchasing this product, please read this user manual carefully before using this product. In the constant effort to improve our product, we reserve the right to make functions or parameters changes without notice or obligation. Safety Precaution Do not dismantle the housing or modify the module to avoid electrical shock or burn. -
Page 3: Product Introduction
Product Introduction Thanks for choosing the HDMI 2.0 1x8 Splitter, which can distribute one HDMI input to eight outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080p 3D and multichannel audio formats. Except passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the rear panel. -
Page 4: Rear Panel
③ OUTPUT LEDs: The LED illuminates green when there is HDMI output on the corresponding channel. ④ DISPLAY ON Button and LED: Press the button to turn on displays. The LED blinks green when press this button to send control signal. ⑤... -
Page 5: Edid Management
EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, since the displays with different capabilities are connected to the splitter, the 3-pin DIP switch on the front panel and the 4-pin DIP switch on the rear panel can be used in combination to set the EDID to a fixed value to ensure the compatibility in video resolution. - Page 6 0101 Obtains EDID from the display connected to the HDMI output port 6. 0110 Obtains EDID from the display connected to the HDMI output port 7. 0111 Obtains EDID from the display connected to the HDMI output port 8. 1000 720p LPCM 1001...
-
Page 7: Firmware Upgrade
Video Resolution Down-scaling The product supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display, shown in the below chart. Input Output Color Resolution Refresh Downscale 1080p Specs Space 3840x2160 4:4:4 Support 1080p@60Hz 4:4:4 3840x2160... -
Page 8: System Connection
System Connection The following diagram illustrates the typical input and output connection of the splitter: HDMI: HDBaseT: 4K@60 4:4:4 HDR Down Scaling 4K/60 Display 4K/60 Blu-ray 4K/60 Display 1080p Display HDMI 2.0 Tx HDMI 2.0 Rx 4K/60 Display 4K/60 Display... -
Page 9: Technical Specification
Technical Specification Video Input Input (1) HDMI Input Connector (1) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version Supported Video Output Output (8) HDMI Output Connector (8) Female type-A HDMI HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard Supported...
