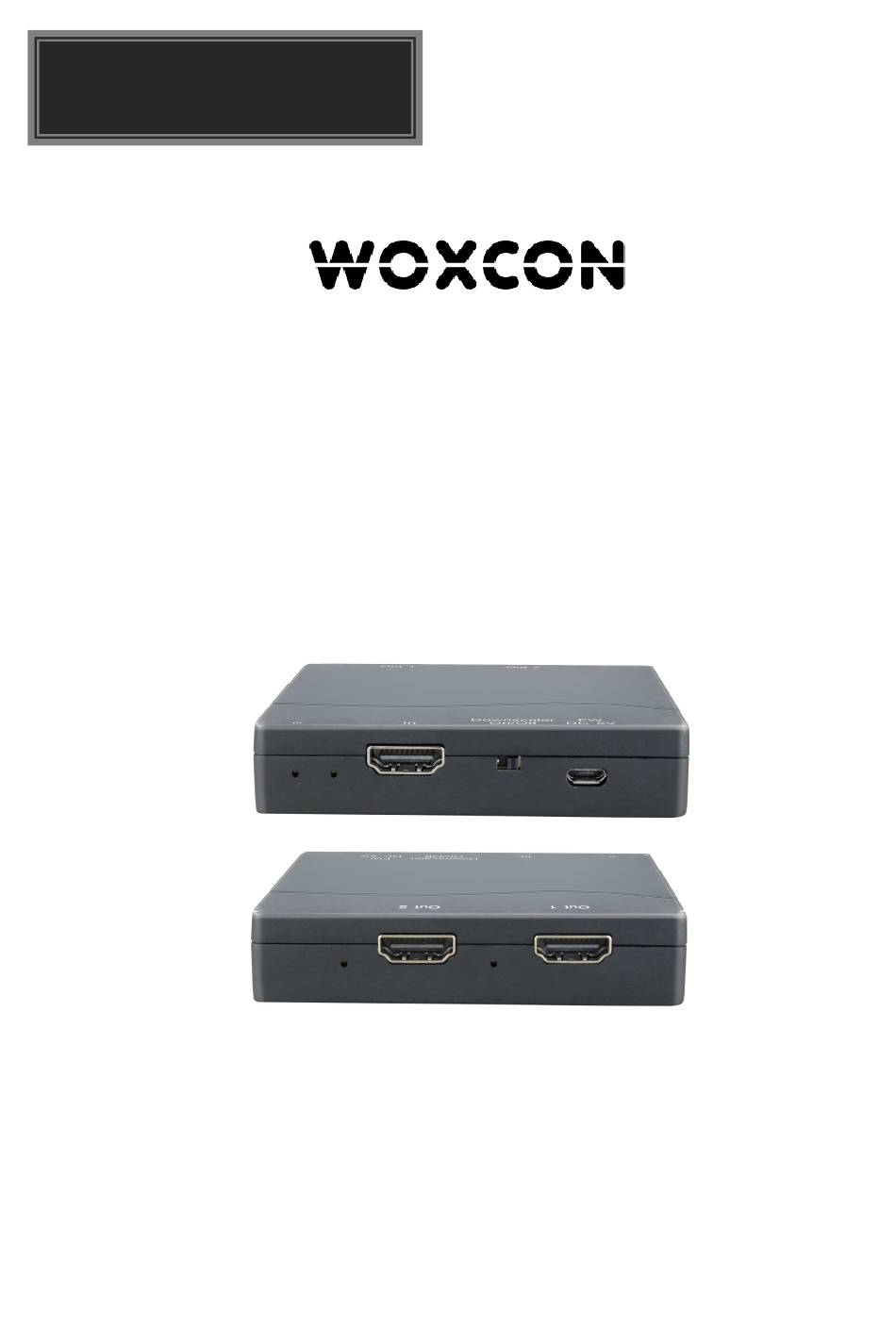

- Page 1 User Manual CE-DA12-H2 1x2 HDMI 2.0 Splitter All Rights Reserved Version: CE-DA12-H2_2019V1.0...
- Page 2 Statement Thanks for purchasing this product, please read this user manual carefully before using this product. In the constant effort to improve our product, we reserve the right to make functions or parameters changes without notice or obligation. Safety Precaution Do not dismantle the housing or modify the module to avoid electrical shock or burn.
- Page 3 Product Introduction Thanks for choosing the 1x2 HDMI 2.0 Splitter, which can distribute one HDMI input to two outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4 and supports passing EDID information from the display, there is a built-in Down-scaling setting can be selected by the 2-pin DIP switch on the front panel.
- Page 4 Control Control Part (1) Micro-USB port General 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 10m, HDMI 2.0 Cable Length 1080p ≤ 15m Operation Temperature -10℃ ~ +55℃ Storage Temperature -25℃ ~ +70℃ Relative Humility 10%-90% Power Supply Input:100V~240V AC; Output: 5V DC 1A Power Consumption 1.8W Dimension (W*H*D)
- Page 5 Panel Description ① POWER LED: The LED illuminates red when power is applied. ② INPUT LED: The LED illuminates blue when there is HDMI input. ③ INPUT: Type-A female HDMI input port to connect the HDMI source. ④ SCALER ON/OFF: Turn on or off the down-scaling function. ⑤...
- Page 6 Firmware Upgrade Please follow the below steps to upgrade firmware by the Micro-USB port: 1) Connect the splitter to the PC with USB cable. 2) Power on the splitter, and then the PC will automatically detect a U-disk named of “BOOTDISK”.
- Page 7 Panel Drawing 85.00 mm Out 1 Out 2 Downscaler On/Off DC 5V...
