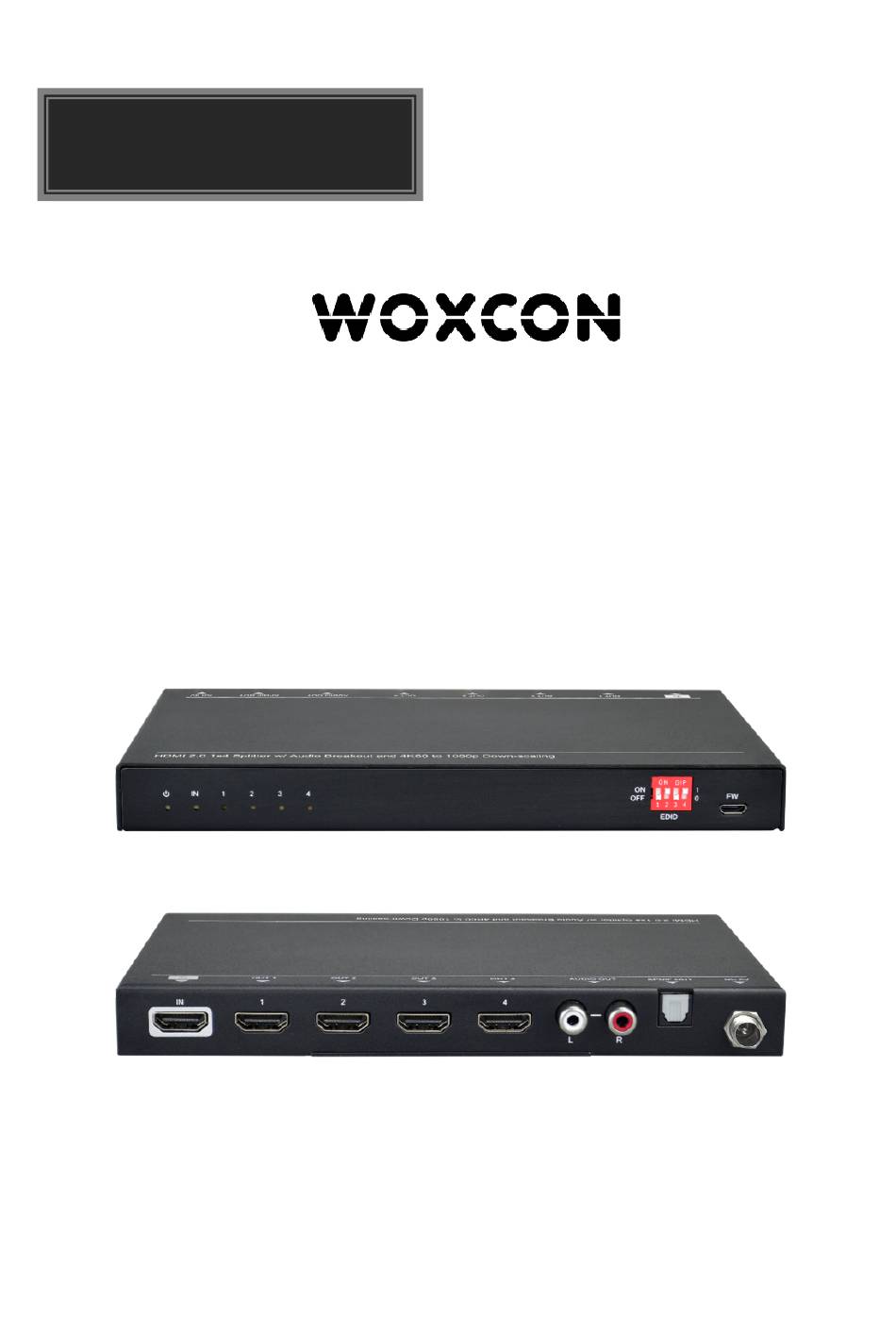

- Page 1 User Manual SUH4AU-H2 HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling All Rights Reserved Version: SUH4AU-H2_2019V1.1...
- Page 2 HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling Preface Read this user manual carefully before using the product. Pictures are shown in this manual for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment.
-
Page 4: Table Of Contents
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling Table of Contents 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Packing List ......................2 2. Specification ........................ 3 3. Panel Description ......................5 3.1 Front Panel ......................5 3.2 Rear Panel ...................... -
Page 5: Product Introduction
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 1. Product Introduction Thanks for choosing the one input to four output HDMI2.0 Splitter. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080p 3D and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the front panel. -
Page 6: Packing List
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 1.2 Packing List 1x HDMI 2.0 1x4 Splitter 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x Power Adapter (5V DC 1A) 1x User Manual Note: Please contact your distributor immediately if any damage or defect in the components is found. -
Page 7: Specification
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 2. Specification Video Input Input (1) HDMI Input Connector (1) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 HDMI Standard HDCP Version 2.2, 1.4 compliant Video Output Output (4) HDMI Output Connector... - Page 8 HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling clipping) Frequency Response <±0.5dB 20Hz ~ 20KHz Deviation Output Load Capability 1KΩ and higher (supports 10x paralleled 10KΩ loads) Stereo Channel Separation >70dB@1KHz Control Control Part (1) EDID 4-pin DIP switch, (1) Micro-USB port General Bandwidth 18Gbps...
-
Page 9: Panel Description
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 3. Panel Description 3.1 Front Panel ① Power LED: The LED illuminates red when power is applied. ② INPUT LED: The LED illuminates blue when there is an input signal present. ③... -
Page 10: System Connection
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 4. System Connection 4.1 Usage Precautions Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and safe. -
Page 11: Dip Switch Operation
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 5. DIP Switch Operation 5.1 EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. -
Page 12: Hdcp Mode
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 1080p LPCM 1080p DTS/Dolby 3840x2160@30Hz LPCM 3840x2160@30Hz DTS/Dolby 3840x2160@60Hz LPCM 3840x2160@60Hz DTS/Dolby 5.2 HDCP Mode Put switch 4 on “ON” position to select HDCP Active mode, or to “OFF” for HDCP Passive mode. -
Page 13: Video Resolution Down-Scaling
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 6. Video Resolution Down-scaling The product supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display, shown in the below chart. Input Output Color... -
Page 14: Firmware Upgrade
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 7. Firmware Upgrade Please follow the below steps to upgrade firmware by the Micro-USB port: 1) Connect the splitter to the PC with USB cable. 2) Power on the splitter, and then the PC will automatically detect a U-disk named of “BOOTDISK”. -
Page 15: Panel Drawing
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 8. Panel Drawing 190.0 mm... -
Page 16: Troubleshooting & Maintenance
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 9. Troubleshooting & Maintenance Problems Potential Causes Solutions The connecting cables may Check whether the cables not be connected correctly are connected correctly and Colour losing or no video or it may be broken. -
Page 17: Customer Service
HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080p Down-scaling 10. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice.
