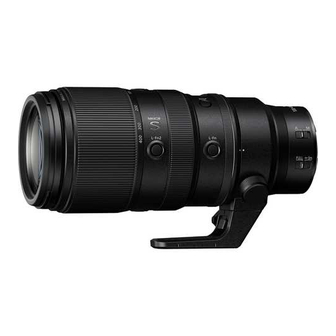

NIKKOR Z 100-400mm f/4.5-5.6 VR S
Reference Guide
• Read this document thoroughly before using the product.
• To ensure proper use of the product, be sure to read "For Your Safety" (page 5).
• After reading this document, keep it readily accessible for future reference.
© 2021 Nikon Corporation
SB1L01(11)
En
7MMA7611-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NIKKOR and is the answer not in the manual?

Questions and answers

Related Manuals for Nikon NIKKOR

Summary of Contents for Nikon NIKKOR

  • Page 1 NIKKOR Z 100-400mm f/4.5-5.6 VR S Reference Guide • Read this document thoroughly before using the product. • To ensure proper use of the product, be sure to read “For Your Safety” (page 5). • After reading this document, keep it readily accessible for future reference.

  • Page 2: Table Of Contents

    Table of Contents Introduction........... . . Before You Begin.
  • Page 3 Notices............. . 41 Table of Contents...

  • Page 4: Introduction

    The latest version of the camera firmware can be downloaded from the Nikon Download Center at the URL below. https://downloadcenter.nikonimglib.com/ No reproduction in any form of this document, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

  • Page 5: For Your Safety

    For Your Safety To prevent damage to property or injury to yourself or to others, read “For Your Safety” in its entirety before using this product. After reading these safety instructions, keep them readily accessible for future reference. WARNING: Failure to observe the precautions marked with this icon could result in death or severe injury.
  • Page 6 WARNING Keep dry. Do not handle with wet hands. Failure to observe these precautions could result in fire or electric shock. Do not use this product in the presence of flammable dust or gas such as propane, gasoline or aerosols. Failure to observe this precaution could result in explosion or fire.
  • Page 7 CAUTION Do not leave the lens pointed at the sun or other strong light sources. Light focused by the lens could cause fire or damage to product’s internal parts. When shooting backlit subjects, keep the sun well out of the frame. Sunlight focused into the camera when the sun is close to the frame could cause fire.

  • Page 8: Using The Lens

    Using the Lens Parts of the Lens: Names and Functions The parts of the lens are listed below. 1 2 3 Lens hood mounting mark Use when attaching the lens hood. “Attaching and Removing the Lens Hood” (p.27) Zoom ring Rotate the ring to zoom in or out.
  • Page 9 Focal length mark Determine the approximate focal length when zooming the lens in or out. Focus ring Use for manual focus. • When focusing using autofocus, you can adjust focus manually by rotating the ring while the shutter-release button is pressed halfway; after focusing, press the shutter-release button the rest of the way down to shoot.
  • Page 10 Lens info panel View focus distance, depth of field, and other information. “The Lens Info Panel” (p.23), “Panel Options” (p.25) Control ring Rotate to adjust a setting such as [Aperture] or [Exposure compensation] assigned using the camera. For more information, see the description of [Custom control assignment], [Custom controls], or [Custom controls (shooting)] in the documentation provided with the camera.
  • Page 11 10 11 12 Tripod collar ring rotation index Use when rotating the camera to shoot in landscape (“wide”) or portrait (“tall”) orientation. “Using the Tripod Collar” (p.29) Tripod collar ring “Using the Tripod Collar” (p.29) Lens mounting mark Use when mounting the lens on the camera. “Attachment and Removal”...
  • Page 12 13 14 Rubber lens-mount gasket Helps prevent the ingress of water droplets or dust along the surfaces where the lens and camera meet when the lens is mounted on the camera. There is no guarantee that the gasket is completely proof against the ingress of water droplets or dust in all circumstances.
  • Page 13 L-Fn2 button (×4) Press to perform a function assigned using the camera. For more information, see the description of [Custom control assignment], [Custom controls], or [Custom controls (shooting)] in the documentation provided with the camera. L-Fn button Press to perform a function assigned using the camera. For more information, see the description of [Custom control assignment], [Custom controls], or [Custom controls (shooting)] in the documentation provided with the camera.
  • Page 14 Lens rotation index (90°) Use when rotating the camera to shoot in landscape (“wide”) or portrait (“tall”) orientation. “Using the Tripod Collar” (p.29) Tripod collar ring rotation index (90°) Use when rotating the camera to shoot in landscape (“wide”) or portrait (“tall”) orientation.
  • Page 15 Tripod collar ring attachment screw Fix the tripod collar ring in place. “Using the Tripod Collar” (p.29) Security slot (for anti-theft cable) Attach a third-party anti-theft cable. For more information, see the documentation provided with the cable. Tripod collar mounting foot “Using the Tripod Collar”...
  • Page 16 Focus limit switch Choose the autofocus range. • FULL: Choose to focus on subjects at any distance between 0.75 m (2.46 ft) and ∞. • ∞ – 3 m: Focus is limited to distances of 3 m (9.85 ft) and more. Select this option for faster focusing if your subject will always be at distance of at least 3 m (9.85 ft).
  • Page 17 24 25 26 Lens hood Lens hoods block stray light that would otherwise cause flare or ghosting. They also serve to protect the lens. “Attaching and Removing the Lens Hood” (p.27) Lens hood alignment mark Use when attaching the lens hood. “Attaching and Removing the Lens Hood”...
  • Page 18 28 29 30 Tripod collar Use when attaching a tripod to the camera on which the lens is mounted. “Using the Tripod Collar” (p.29) Tripod collar lock release Use when removing the tripod collar from the tripod collar mounting foot. “Using the Tripod Collar”...
  • Page 19 Lens cap (front cap) Lens cap (rear cap) Parts of the Lens: Names and Functions...

  • Page 20: Attachment And Removal

    Attachment and Removal Attaching the Lens Turn the camera off, remove the body cap, and detach the rear lens cap. Attachment and Removal...
  • Page 21 Position the lens on the camera body, keeping the mounting mark on the lens aligned with the mounting mark on the camera body ( ), and then rotate the lens counterclockwise ( ) until it clicks into place. Attachment and Removal...
  • Page 22 Removing the Lens Turn the camera off. Press and hold the lens release button ( ) while turning the lens clockwise ( Attachment and Removal...

  • Page 23: The Lens Info Panel

    The Lens Info Panel The lens Info panel lights when the lens is attached to a camera and the camera is • Press the lens display button to cycle the display as shown: Focus distance Minimum focus distance index Depth of field Focal length Aperture Shows the approximate minimum focus distance at the current focal length.
  • Page 24 Aperture is displayed only when the camera is in mode A or M. The display for other modes is shown in the illustration. • The panel turns off automatically when the camera standby timer expires or if no lens operations are performed for about 10 seconds. Press the display button to reactivate the display.

  • Page 25: Panel Options

    Panel Options Follow the steps below to choose the units for focus distance from meters (m) or feet (ft) or adjust the brightness of the lens Info panel. Press and hold the display button to view settings. • Unit or brightness selection options will be displayed. The currently selected item will flash.
  • Page 26 Brightness Rotate the control ring in the “+” (brighter) or “−” (darker) direction. Choose from 6 levels of brightness. To turn the lens info panel off, rotate the ring in the “−” direction until the icon changes to • Press the display button to save changes and toggle the display. •...

  • Page 27: Attaching And Removing The Lens Hood

    Attaching and Removing the Lens Hood Attaching the Lens Hood • Align the lens hood mounting mark with the lens hood alignment mark ( and then rotate the lens hood ( ) until the mounting mark is aligned with the lens hood lock mark ( Lens hood alignment mark Lens hood mounting mark...
  • Page 28 • The lens hood can be reversed and mounted on the lens when not in use. Removing the Lens Hood • Keeping the lens hood lock release button pressed ( ), rotate the lens hood in the direction shown ( ) and remove it from the lens ( Lens hood lock release button •...

  • Page 29: Using The Tripod Collar

    Using the Tripod Collar Attach tripods to the tripod collar, not to the camera. Be sure to securely tighten the tripod collar lock screw. Failure to observe this precaution may result in the lens unexpectedly separating from the tripod, causing injury. Attaching the Tripod Collar Align the slot on the tripod collar with the tripod collar mounting foot ( ) and...
  • Page 30 Rotating the Camera After slightly loosening the tripod collar ring attachment screw ( ), rotate the camera ( ) to align the lens rotation index with the tripod collar ring rotation index that matches the desired orientation (landscape or portrait) and then tighten the screw ( Using the Tripod Collar...
  • Page 31 Removing the Tripod Collar After fully loosening the tripod collar lock screw ( ), keep the tripod collar lock release pressed ( ) while sliding the collar from the mounting foot ( Using the Tripod Collar...

  • Page 32: Vibration Reduction (Vr)

    Vibration Reduction (VR) The lens supports vibration reduction. Vibration reduction settings can be adjusted from the camera. See the documentation provided with the camera for details. Vibration reduction allows shutter speeds slower than would otherwise be the case, expanding the range of shutter speeds available. Vibration Reduction •...

  • Page 33: Precautions For Use

    • We recommend that you place the lens in its case to protect it from scratches during transport. • Nikon will not be held liable in the event that the lens is stolen or damaged while a third-party anti-theft cable is attached to the security slot.

  • Page 34: Lens Maintenance

    Lens Maintenance • Removing dust is normally sufficient to clean the glass surfaces of the lens. • When cleaning the fluorine-coated front lens element: Smudges, fingerprints, and other oily stains can be removed using a soft, clean cotton cloth or third-party lens cleaning tissue; clean from the center outwards using a circular motion.

  • Page 35: Technical Notes

    Technical Notes Cameras with AF-Assist Illuminators The lens or lens hood may block the light from the camera AF-assist illuminator. • For the information on using the lens with cameras that have built-in AF-assist illuminators, visit the site below. https://downloadcenter.nikonimglib.com/ Cameras with AF-Assist Illuminators...

  • Page 36: Using The Lens On Cameras With A Built-In Flash

    Using the Lens on Cameras with a Built-in Flash Shadows will be visible in photos where light from the built-in flash is obscured by the lens or lens hood. Remove the lens hood before shooting. Note, however, that depending on the distance to the subject, and in the case of zoom lenses also on the lens focal length, shadows may appear even when the lens hood is removed.

  • Page 37: Accessories

    Accessories Supplied Accessories • LC-77B Lens Cap (front cap) • LF-N1 Lens Cap (rear cap) • HB-103 Lens Hood • CL-C3 Lens Case Using the Lens Case • The case is intended to protect the lens from scratches, not from falls or other physical shocks.
  • Page 38 Other Compatible Accessories • 77 mm filters • Z TELECONVERTER TC-1.4×/TC-2.0× Filters • Use only one filter at a time. • Remove the lens hood before attaching filters. You will also need to remove the lens hood before rotating circular polarizing filters. Teleconverters Depending on the subject, ambient lighting conditions, and the focus point selected, the camera may be unable to focus using autofocus or the focus...

  • Page 39: Specifications

    Specifications Mount Nikon Z mount Focal length 100 – 400 mm Maximum aperture f/4.5 – 5.6 25 elements in 20 groups (including 6 ED elements, 2 super-ED elements, elements with Nano Crystal and Lens construction ARNEO coats, and a fluorine-coated front lens element) FX format: 24°20′ – 6°10′...
  • Page 40 Approx. 1435 g (3 lb 2.7 oz) collar) Weight (without Approx. 1355 g (2 lb 15.8 oz) tripod collar) Nikon reserves the right to change the appearance, specifications, and performance of this product at any time and without prior notice. Specifications...
  • Page 41 Notices Notices for Customers in the U.S.A. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 42 ● Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Nikon Corporation may void the user’s authority to operate the equipment. Nikon Inc., 1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A.
