NEW BRUNSWICK SCIENTIFIC Innova CO-48 Assembly Instructions Manual

Hide thumbs Also See for Innova CO-48:
1
2
3
4
5
6
7

Advertisement

Table of Contents

New Brunswick Scientific
Innova
CO-48
®
Stacking Frame
P0628-6720
Assembly Instructions
Revision A
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Innova CO-48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NEW BRUNSWICK SCIENTIFIC Innova CO-48

Summary of Contents for NEW BRUNSWICK SCIENTIFIC Innova CO-48

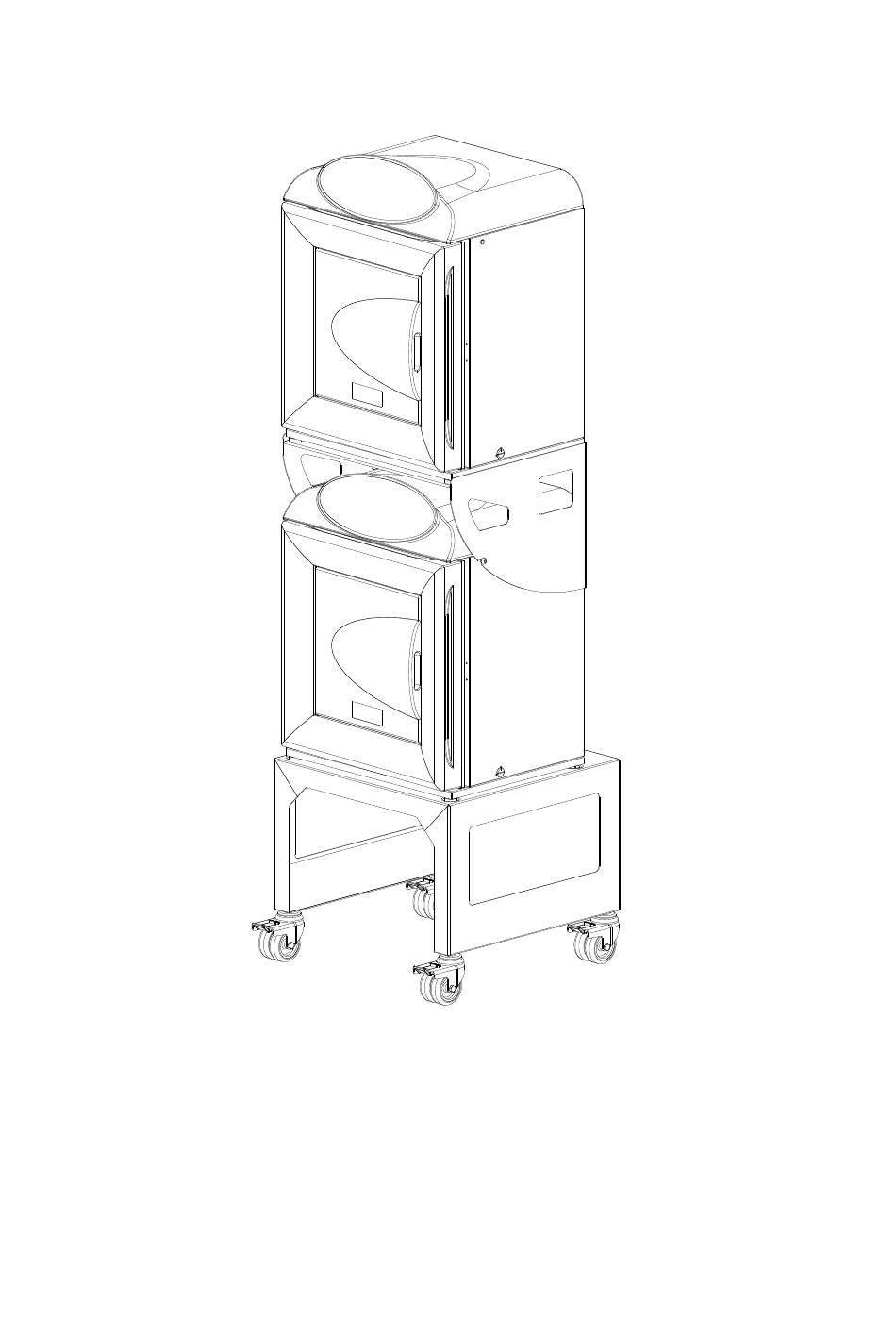

  • Page 1 New Brunswick Scientific Innova CO-48 ® Stacking Frame P0628-6720 Assembly Instructions Revision A...
  • Page 2 Innova CO-48 - Base Stand Assembly Instructions 1) Remove components from packaging. 2) Identify Base Stand, Castors, M10 Lock - Nuts and Washers. M10 Washer x 4 Locking M10 Bolt x 4 Castor x 4 Base Stand x 3) Assemble bolts and washers to castors, making sure that the washer is placed inside the castor (shown below).
  • Page 3 5) Turn base right way up and place on castors. 6) With the help of a second person place a Innova CO-48 incubator onto the base- stand making sure that the feet are located in the embossed areas (shown below).
  • Page 4 Top Stand Bracket Assembly Instructions 8) Identify Top Stand Bracket, M8x16 Button Head Screws, Anti-Slip rubber pads (supplied with MiniGalaxy) and Hex Key. Anti-Slip Pads x Top Stand M8x16 Button Hex Key Bracket x 1 Head Screw x 5mm AF 9) Remove the black blanking plug from either side of the bottom incubator.
  • Page 5 11) Slide the Top Stand Bracket forward until the slots locate on the screws (shown below). 12) Partially screw the remaining M8x16 Button Head Screws into the threaded holes in the rear of the bottom incubator (shown below). M8x16 Button Head Screw 13) Fully tighten the four screws on the rear of the incubator followed by the sides.
  • Page 6 15) With the help of a second person, place the remaining MiniGalaxy on the Top Stand Bracket by sliding it in from the front (Shown Below). 16) Adjust the height of the feet on the top MiniGalaxy to prevent any rock on the unit.
  • Page 7 Specifications Innova CO-48 – Stacked Dimensions All dimensions in mm Stacking System - Shipping Weights and Dimensions Packaged Dimensions WxDxH (mm): 530x540x350 Packaged Weight: 17kg Volumetric Weight: 17kg...
