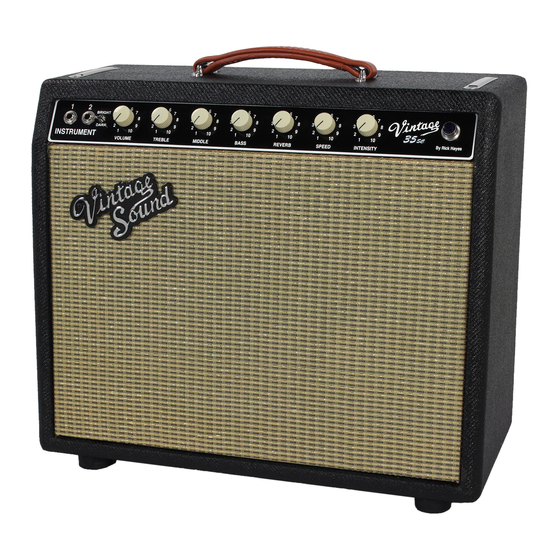

- Page 1 Vintage 35sc Manual Model: V35sc www.vintagesoundamps.com...
-
Page 2: Specifications
Specifications Power Output 35 Watts Output Tubes 2 - 6L6 Preamp Tubes 1 - 12AT7; 3 - 12AX7 Rectifier 1 - 5AR4/GZ34 Controls Front Panel: Volume.Treble.Middle.Bass.Reverb.Speed.Intensity Rear Panel: Dwell Control on Rear Panel Configurations 1x12 Cabinet Head & Matching 1x12 Speaker Cabinet Colors Assorted colors available Dimensions &... - Page 3 15) Avoid placing any liquids on or near the amplifier that may splash or drip such as those contained in bottles, cans, glasses, etc. 16) Vintage Sound amplifiers are capable of producing very high sound pressure levels which can cause temporary or permanent hearing damage dropped.
-
Page 4: Front Panel
15. FUSE SLO-BLOW - The fuse protects the amp from electrical faults. Replace only with a 1 amp slo blow fuse. If the amp repeatedly blows the fuse, contact your dealer or Vintage Sound Amps. 16. ON - This switch turns the AC power ON and OFF. When the switch is OFF, the amplifier is completely shut down 17. - Page 5 damage to the amplifier. When using only the internal speaker jack, a speaker impedance load of 8ohms (minimum) should be used to avoid distortion or damage to the amplifier. 19. EXT SPKR – This is an auxillary speaker jack used to add an additional speaker cabinet to your amplifier.
-
Page 7: Made In Usa
MODEL: SERIAL NUMBER: INPUT VOLTAGE: MADE IN USA... -
Page 8: Ec/Eu Declaration Of Conformity
. v i n t a g e s o u n d a m p s . c o m EC/EU DECLARATION OF CONFORMITY We declare that the Vintage 35sc is designed in conformity with the European Directives: 2014/30/EU...
