Summary of Contents for Vintage Sound 40mvp

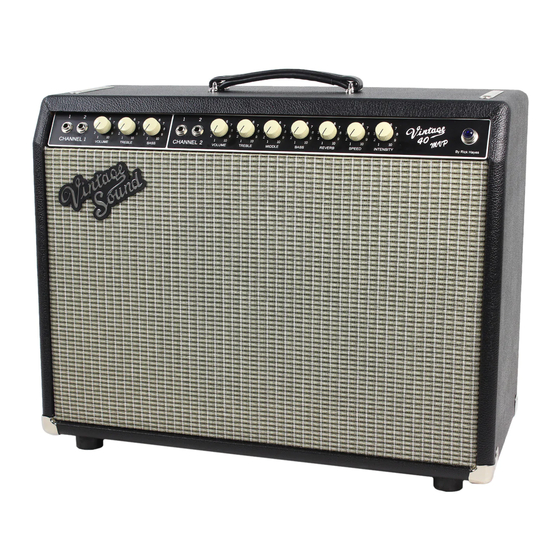

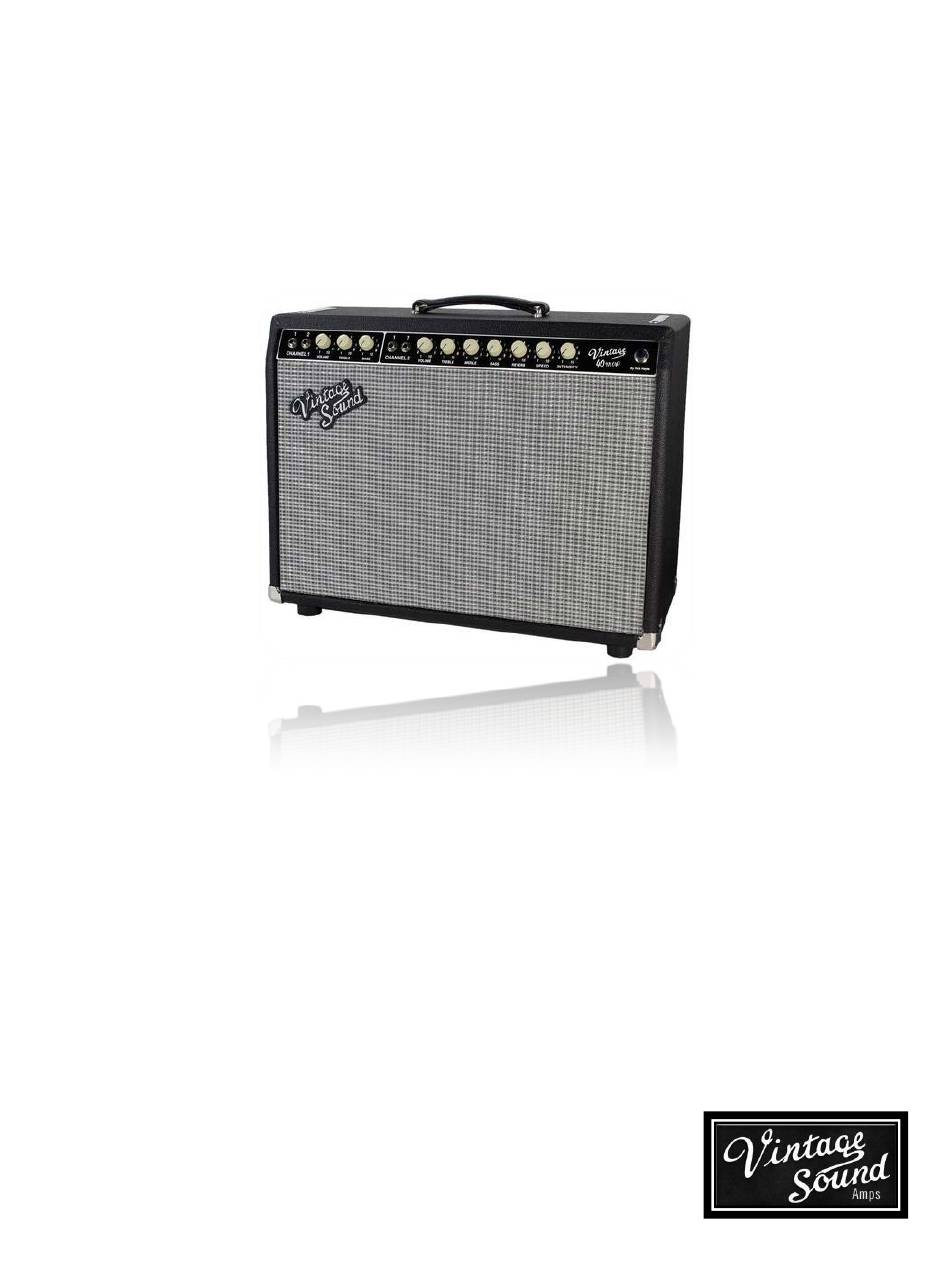

- Page 1 Vintage 40mvp Manual Model: V40mvp www.vintagesoundamps.com...
- Page 3 15) Avoid placing any liquids on or near the amplifier that may splash or drip such as those contained in bottles, cans, glasses, etc. 16) Vintage Sound amplifiers are capable of producing very high sound pressure levels which can cause temporary or permanent hearing damage dropped.
-
Page 4: Specifications
Channel 1: Voume.Treble.Bass Channel 2: Volume.Treble.Middle.Bass.Reverb.Speed.Intensity Rear Panel: Dwell Control on Rear Panel All Vintage 40mvp Amplifier HEADS have the same chassis configurations with a Configurations multi-tap output transformer and 2.4.8 ohm selector switch for use with a variety of cabinet and speaker combinations. -
Page 5: Front Panel
19. SOLID STATE/TUBE RECTIFIER CONTROL: Switchable from solid state to tube rectifier 20. FUSE SLO-BLOW - The fuse protects the amp from electrical faults. Replace only with the same rating and type (2.0 Amp Slo-Blow). If the amp repeatedly blows the fuse contact your dealer or Vintage Sound Amps. - Page 6 21. ON - This switch turns the AC power ON and OFF. When the switch is OFF, the amplifier is completely shut down 22. STANDBY - When the switch is in the STANDBY position, the amplifier is off; however, the tube filaments are left on as to eliminate warm-up time, provided that the POWER SWITCH (item B) is ON.
-
Page 7: Made In Usa
MODEL: SERIAL NUMBER: INPUT VOLTAGE: MADE IN USA... -
Page 8: Ec/Eu Declaration Of Conformity
. v i n t a g e s o u n d a m p s . c o m EC/EU DECLARATION OF CONFORMITY We declare that the Vintage 40mvp is designed in conformity with the European Directives: 2014/30/EU...
