Summary of Contents for Vintage Sound Tweed 30

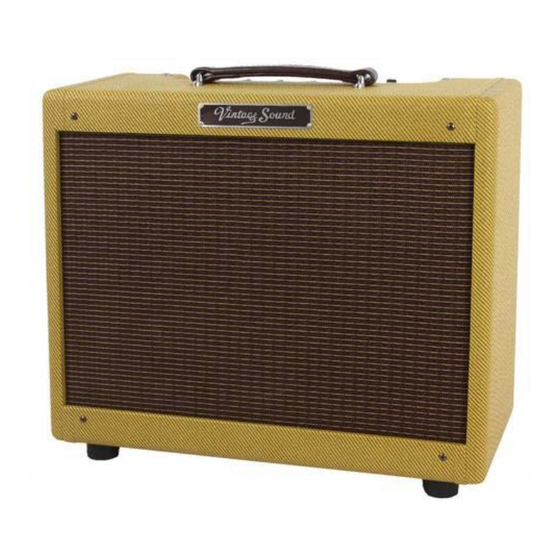

- Page 1 Tweed 30 Manual Model: T30 www.vintagesoundamps.com...
-
Page 2: Specifications
Specifications Power Output 30 Watts Output Tubes 2 - 6V6 Preamp Tubes 1 - 12AX7; 1 – 12AY7 Rectifier 1 – 5Y3 Controls Control Panel: Tone.Volume.Volume. Tweed Channel Plexi Channel 1x12 Cabinet Configurations Colors Lacquered Tweed Black Lacquered Tweed Dimensions & Weight Combination Amp: Height: 16.5”... - Page 4 15) Avoid placing any liquids on or near the amplifier that may splash or drip such as those contained in bottles, cans, glasses, etc. 16) Vintage Sound amplifiers are capable of producing very high sound pressure levels which can cause temporary or permanent hearing damage dropped.
-
Page 5: Front Panel
FRONT PANEL ON - This switch turns the AC power ON and OFF. When the switch is OFF, the amplifier is completely shut down FUSE SLO-BLOW - The fuse protects the amp from electrical faults. Replace only with the same rating and type (2.0 Amp Slo-Blow). -
Page 7: Ec/Eu Declaration Of Conformity
. v i n t a g e s o u n d a m p s . c o m EC/EU DECLARATION OF CONFORMITY We declare that the Tweed 30 is designed in conformity with the European Directives: 2014/30/EU... -
Page 8: Made In Usa
MODEL: SERIAL NUMBER: INPUT VOLTAGE: MADE IN USA...
