STEERING SYSTEMS
STEERING ACCESSORIES
INSTALLER: THESE INSTRUCTIONS CONTAIN IMPORTANT SAFETY INFORMATION
AND MUST BE FORWARDED TO MARINE CRAFT OWNER.
XPA1012B, XPA1012P

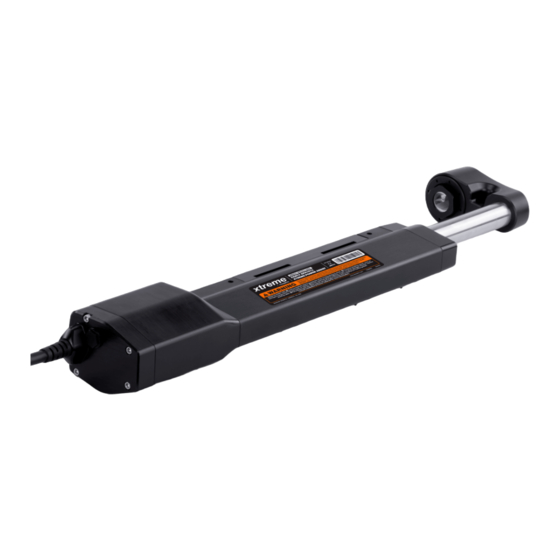

XPA Xtreme Electronic Power Assist
EN
Installation and Operation Manual . . . . . . . .2
REVISION 1 Form No. IS-XPA1012 11/21 | ©2021 Dometic Corporation
Advertisement
Table of Contents
Related Manuals for Dometic XPA1012B
Summary of Contents for Dometic XPA1012B
- Page 1 AND MUST BE FORWARDED TO MARINE CRAFT OWNER. XPA1012B, XPA1012P XPA Xtreme Electronic Power Assist Installation and Operation Manual . . . . . . . .2 REVISION 1 Form No. IS-XPA1012 11/21 | ©2021 Dometic Corporation...
-
Page 2: Table Of Contents
1 Explanation of Symbols and documentation, may be subject to changes and updates. For up-to- date product information, please visit www.dometic.com. Safety Instructions Contents This manual has safety information and instructions to help you eliminate or reduce the risk of accidents and Contents . -
Page 3: Supplemental Directives
• Read and understand these instructions before installing this product. Model XPA1012B is intended for OEM boat builders. Model XPA1012P is intended for aftermarket customers. • The installation must comply with all applicable local... -
Page 4: General Information
A four-bolt hole mounting pattern is required on the outboard engine. 1 XPA Length at Full Extension The XPA is designed to accept all single cable Dometic rotary or rack and pinion steering cables. 12.0 in. (30 cm) Shown with a 33.0 in. (84 cm) Width Transom... -
Page 5: Installation Requirements
XPA Xtreme Electronic Power Assist General Information 3.3 Installation Requirements This section provides information relevant to installing the XPA based on the engine model. The table continues on the next page. Split Body Cable Plastic Bracket Dimension Retraction Clevis Manufacturer Year Model Spacer... - Page 6 General Information XPA Xtreme Electronic Power Assist Split Body Cable Plastic Bracket Dimension Retraction Clevis Manufacturer Year Model Spacer Adapter Cable Fasteners Spacers Sleeve Shims Spacer Suzuki 2019 - DF150A – Required Thin x 2 1/4-28 10.2 in. Black Current 7/8 in.
-
Page 7: Preinstallation
XPA Xtreme Electronic Power Assist Preinstallation 4 Preinstallation 5 Installation This section describes how to prepare for installation and WARNING: ELECTRICAL SHOCK, AND/OR verify that there is sufficient clearance in the splashwell LOSS OF STEERING CONTROL HAZARD. for the XPA to operate. Failure to obey the following warnings could result in death or serious injury: 1. -
Page 8: Attaching The Mounting Bracket
WARNING: LOSS OF STEERING CONTROL HAZARD. If fasteners do not fully seat against the mounting bracket, stop installation and contact Dometic Technical Support. Failure to obey this warning could result in death or serious injury. Some engines may require body spacer shims to extend the mounting bracket forward. - Page 9 XPA Xtreme Electronic Power Assist Installation 5.2.2 Attaching the Mounting Bracket on 3. Attach the mounting brackets according to the engine model. BRP Engines – For BRP engines, go to “Attaching the Mounting Bracket on BRP Engines” on page 9. – For all other engines, go to “Attaching the Mounting Bracket on non-BRP Engines”...
-
Page 10: Attaching The Retraction Spacers
Installation XPA Xtreme Electronic Power Assist 5.3 Attaching the Retraction Spacers 5.5 Mounting the XPA 7 Attaching the Retraction Spacers 9 Mounting the XPA Retraction Spacers Steering Cable Ram Anti-Seize Nuts Studs Washers 1. Determine if the engine requires retraction spacers. See “Installation Requirements”... -
Page 11: Securing The Engine Link Arm
XPA Xtreme Electronic Power Assist Installation 1. Apply a waterproof marine grease to the shoulder Sensor Housing Steering Cable Ram area above the threads on the engine link arm. Flats Clevis Nut 2. Insert the engine link arm into the XPA sensor Clevis Sleeve Clevis Pin housing. -
Page 12: Wiring The Electrical Connections
Installation XPA Xtreme Electronic Power Assist 5.7 Wiring the Electrical The XPA is designed to operate on a 12 VDC power source . Typical power source connections include: Connections – Direct to batteries WARNING: ELECTRICAL SHOCK, FIRE, – To battery switches. (Never switch the negative EXPLOSION, AND/OR LOSS OF STEERING wire.) CONTROL HAZARD. -
Page 13: Operation
Failure to obey this warning could result in death or serious injury. This section provides safety information for use when operating a boat equipped with Dometic controls and steering. General: • Know and obey all applicable federal, state, and municipal laws and regulations that govern boating in your area. -
Page 14: Troubleshooting
4. Manually override the XPA to the center position. 5. Wait one minute, then turn on ignition. 6. If problem persists, contact Dometic Technical Support. 1. If under way, safely bring the boat to a stop. The XPA can be manually Long pulse 3.5 second... -
Page 15: Maintenance
XPA Xtreme Electronic Power Assist Maintenance 8 Maintenance 10.1 United States and Canada LIMITED WARRANTY AVAILABLE AT DOMETIC.COM/ WARNING: ELECTRICAL SHOCK, FIRE, EN-US/TERMS-AND-CONDITIONS-CONSUMER/ EXPLOSION, AND/OR LOSS OF STEERING WARRANTY. CONTROL HAZARD. Always disconnect the unit from power before IF YOU HAVE QUESTIONS, OR TO OBTAIN A COPY cleaning and/or servicing. -
Page 16: All Other Regions
Warranty Information XPA Xtreme Electronic Power Assist 10.3 All Other Regions The statutory warranty period applies. If the product is defective, please contact the manufacturer’s branch in your region or your retailer (see the back of this instruction manual for the web addresses to locate your region or retailer). - Page 17 XPA Xtreme Electronic Power Assist...
- Page 18 XPA Xtreme Electronic Power Assist...
- Page 19 XPA Xtreme Electronic Power Assist...
- Page 20 CONTACT US dometic.com/en-us/terms-and-conditions-consumer/contact-us A complete list of Dometic companies, which comprise the Dometic Group, can be found in the public filings of: DOMETIC GROUP AB Hemvärnsgatan 15 SE-17154 Solna Sweden...
