Backyard GBC1856W-C Owner's Manual

Outdoor lp gas barbecue grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

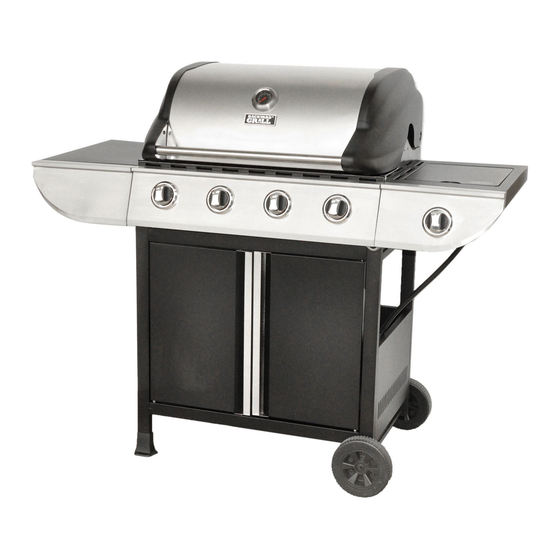

Outdoor LP Gas Barbecue Grill
Model No. GBC1856W-C

Table of Contents

. . . . . . . . . . . . . . . . . . . .
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . 13
Installing Natural Gas Line . . . . . . . . . . . . . . . . . . . 13
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . 16
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
.
The use and installation must conform with local
codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA B149.1, or
Propane Storage and Handling Code, B149.2, or the
Standard for Recreational Vehicles, ANSI A 119.2/NFPA
1192, and CSA Z240 RV Series, Recreational Vehicle
Code, as applicable .
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION . PLEASE READ AND KEEP FOR
FUTURE REFERENCE .
If you are assembling this unit for someone else, give
this manual to him or her to read and save for future
reference .
OWNER'S MANUAL
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or
other flammable liquids or vapors in
the vicinity of this or any other
appliance.
2. An LP cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance.
Never operate this appliance
unattended.
FOR YOUR SAFETY:
For Outdoor Use Only!
Page 2
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance, immediately call your
gas supplier or your fire department.
Failure to follow these instructions
could result in fire or explosion
which could cause property damage,
personal injury or death.
Natural gas conversion kit (model no.
VFK1702W-C) available at Walmart or
www.Walmart.ca
Manufactured in China for: RevoAce Inc . Limited
Hong Kong, China
1 .800 .694 .0013 • service@revoace .com
8:00 am to 4:00 pm central time, Monday to Friday .
GBC1856W-C-OM-EF-F100
WARNING
DANGER
WARNING
DANGER
(outside any enclosure)
.
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GBC1856W-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard GBC1856W-C

Summary of Contents for Backyard GBC1856W-C

  • Page 1: Table Of Contents

    OWNER’S MANUAL Outdoor LP Gas Barbecue Grill Model No. GBC1856W-C WARNING FOR YOUR SAFETY: 1. Do NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance. 2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

  • Page 2: Important Safeguards

    FOR YOUR SAFETY W WARNINGS: 1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. 2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment. 3. Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.
  • Page 3 IMPORTANT SAFEGUARDS W LP gas cylinder needed to operate. Only cylinders marked “propane” may be used. W The LP gas cylinder must be constructed and marked in accordance with the Specifications for LP-gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/ CSA-B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods;...
  • Page 4 IMPORTANT SAFEGUARDS assemble or safely operate the appliance. f. Strong odors, colds, sinus congestion, etc. may prevent the detection of propane. Use caution and common sense when testing for leaks. g. Do NOT use grill until any and all leaks are corrected. LP: If you are unable to stop a leak, disconnect the LP gas supply.
  • Page 5 IMPORTANT SAFEGUARDS cleaned, a grease fire can occur that may damage the product. W Do NOT place empty cooking vessels on the appliance while in operation. W The outdoor cooking gas appliance shall not be used under overhead combustible construction. W Use caution when placing anything on the grill while the appliance is in operation.

  • Page 6: Expanded View & Hardware

    Expanded View...
  • Page 7 Parts List Warming Rack G1646-010 Grease Cup B0219-H08 Lid Handle* G1747-010 Front Cart Frame G1756-01U Temperature Gauge B0104-J10 Rear Cart Frame G1756-02U Brand Plate* B0109-LD0 Left Cart Frame G1856-010 Lid* G1856-010 Left Door G1762-03U Cooking Grid (3) G1646-020 Base G1856-050 LP Gas Tank Retainer Bolt* B0315-010 Heat Plate (4)

  • Page 8: Assembly Instructions

    Assembly Instructions Attach Left & Right Cart Frame DO NOT RETURN TO PLACE OF PURCHASE. Please have your owner’s manual and model number available for reference . Note: The model number is printed on a label which can be found on the inside door, back or side of the cart assembly . Assembly Tips: 1 .
  • Page 9 Attach Front Cart Frame Attach Magnet and LP Gas Tank Block Wire Attach Doors Attach Temperature Gauge...
  • Page 10 Attach Grill Body Assembly Attach Left Side Shelf Note: Leave 5 mm of bolt threads exposed . Secure Left Side Shelf Attach Right Side Shelf Note: Leave 5 mm of bolt threads exposed .
  • Page 11 Attach Side Burner Valve and Side Control Knob Secure Right Side Shelf Bezel Attach Side Burner, Side Burner Grid and Igniter Wire Attach Control Knobs...
  • Page 12 Insert Grease Tray and Grease Cup Insert Heat Plate and Cooking Grid Insert Warming Rack Natural gas conversion kit (model no. VFK1702W-C) available at Walmart or www.Walmart.ca.

  • Page 13: Installing Lp Gas Tank

    Installing LP Gas Tank To operate, you will need one precision-filled standard grill LP gas tank with external valve threads . CAUTION 20 lb W LP gas tank must be properly disconnected and 9 Kg removed prior to moving this grill. 12.2 in.

  • Page 14: Operating Instructions

    Operating Instructions Checking for Leaks Figure 1：Main Burners Burner Connections Burner/ Venturi Tube Make sure the regulator hose and valve connections are securely fastened to the burner and the tank . Visually check the connection between the burner/venturi tube and orifice . Make sure the burner/venturi tube fits over the orifice .
  • Page 15 Operating Instructions (Continued) Push and turn any control knob to (HIGH) . The burner should light . If it does not, repeat up to Figure 5 three times . If ignition does not occur in 5 seconds, turn burner control knob “ OFF,” wait 5 minutes, and repeat lighting procedure .

  • Page 16: Cleaning And Care

    Operating Instructions (Continued) W CAUTION: Do NOT lean on the side burner shelf. W CAUTION: Attempting to light the burner with the lid closed may cause an explosion. Lighting Open lid . Check for obstructions of airflow to the burners . Spiders, insects and webs can clog the burner/venturi tube . A clogged burner tube can lead to a fire .
  • Page 17 Cleaning and Care (Continued) Figure 8 Before Each Use: Burner Flame Conditions Keep the grill area clean and free from any combustible materials, gasoline, and other flammable vapors and liquids . Use this chart to see if your burners need to be cleaned .
  • Page 18 Cleaning and Care (Continued) 12 . Replace cooking grid(s) . 13. LP: Connect LP gas tank per “Installing LP Gas Tank” section . NG: Connect NG main line per “Installing Natural Gas Line” section . 14 . Perform leak test per “Checking for Leaks” section . Before Storing LP: Turn LP gas tank valve to “CLOSED .”...

  • Page 19: Limited Warranty

    Limited Warranty RevoAce Inc . Limited (“RA”) warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled, maintained, and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year for all remaining parts from the date of purchase, all parts in such product shall be free from defects in material and workmanship .

  • Page 20: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention/Cure LP: Make sure regulator is securely attached to the LP gas tank per LP gas tank valve is closed “Installing LP Gas Tank,” then turn LP gas tank valve to “OPEN” NG main valve is closed NG: Make sure regulator and NG main line are securely attached per “Installing Natural Gas Line,”...
  • Page 21 Troubleshooting (Continued) Problem Possible Cause Prevention/Cure New burner may have residual manufacturing Burn grill for 15 minutes on (HIGH) with the lid closed oils Flame is yellow Spider webs or insect nest in venturi Clean venturi or orange Food residue, grease, etc . on burners Clean burner Poor alignment of valve to burner/venturi tube Ensure burner/venturi tube is properly engaged with valve...
