Backyard GBC1707WT-C Owner's Manual

Outdoor lp gas barbecue grill
Hide thumbs

Advertisement

Quick Links

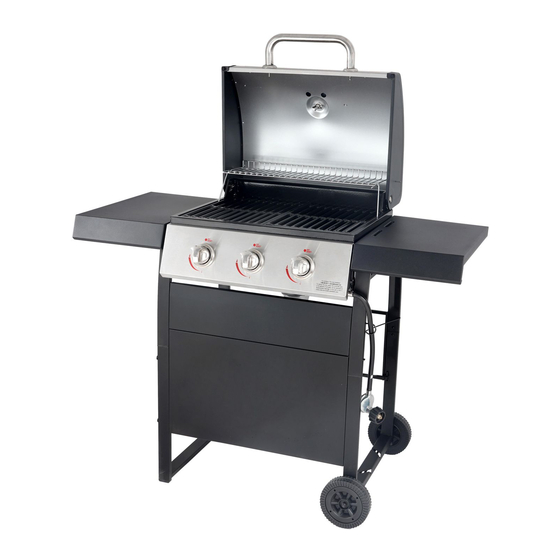

Outdoor LP Gas Barbecue Grill
Model No. GBC1707WT-C

Table of Contents

. . . . . . . . . . . . . . . . . . . .
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . 15
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
The use and installation must conform with local
.
codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA B149.1, or
Propane Storage and Handling Code, B149.2, or the
Standard for Recreational Vehicles, ANSI A 119.2/NFPA
1192, and CSA Z240 RV Series, Recreational Vehicle
Code, as applicable .
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION . PLEASE READ AND KEEP FOR
FUTURE REFERENCE .
If you are assembling this unit for someone else, give
this manual to him or her to read and save for future
reference .
OWNER'S MANUAL
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or
other flammable liquids or vapors in
the vicinity of this or any other
appliance.
2. An LP cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance.
Never operate this appliance
unattended.
FOR YOUR SAFETY:
For Outdoor Use Only!
Page 2
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance, immediately call your
gas supplier or your fire department.
Failure to follow these instructions
could result in fire or explosion
which could cause property damage,
personal injury or death.
Natural gas conversion kit (model no.
VFK1702W-C) available at Walmart or
www.Walmart.ca
Manufactured in China for: RevoAce Inc . Limited
Hong Kong, China
1 .800 .694 .0013 • service@revoace .com
8:00 am to 4:00 pm central time, Monday to Friday .
GBC1707WT-C-OM-EF-F100
WARNING
DANGER
WARNING
DANGER
(outside any enclosure)
.
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GBC1707WT-C and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard GBC1707WT-C

Summary of Contents for Backyard GBC1707WT-C

  • Page 1: Table Of Contents

    OWNER’S MANUAL Outdoor LP Gas Barbecue Grill Model No. GBC1707WT-C WARNING FOR YOUR SAFETY: 1. Do NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance. 2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
