Summary of Contents for Vicoustic VicBooth Ultra

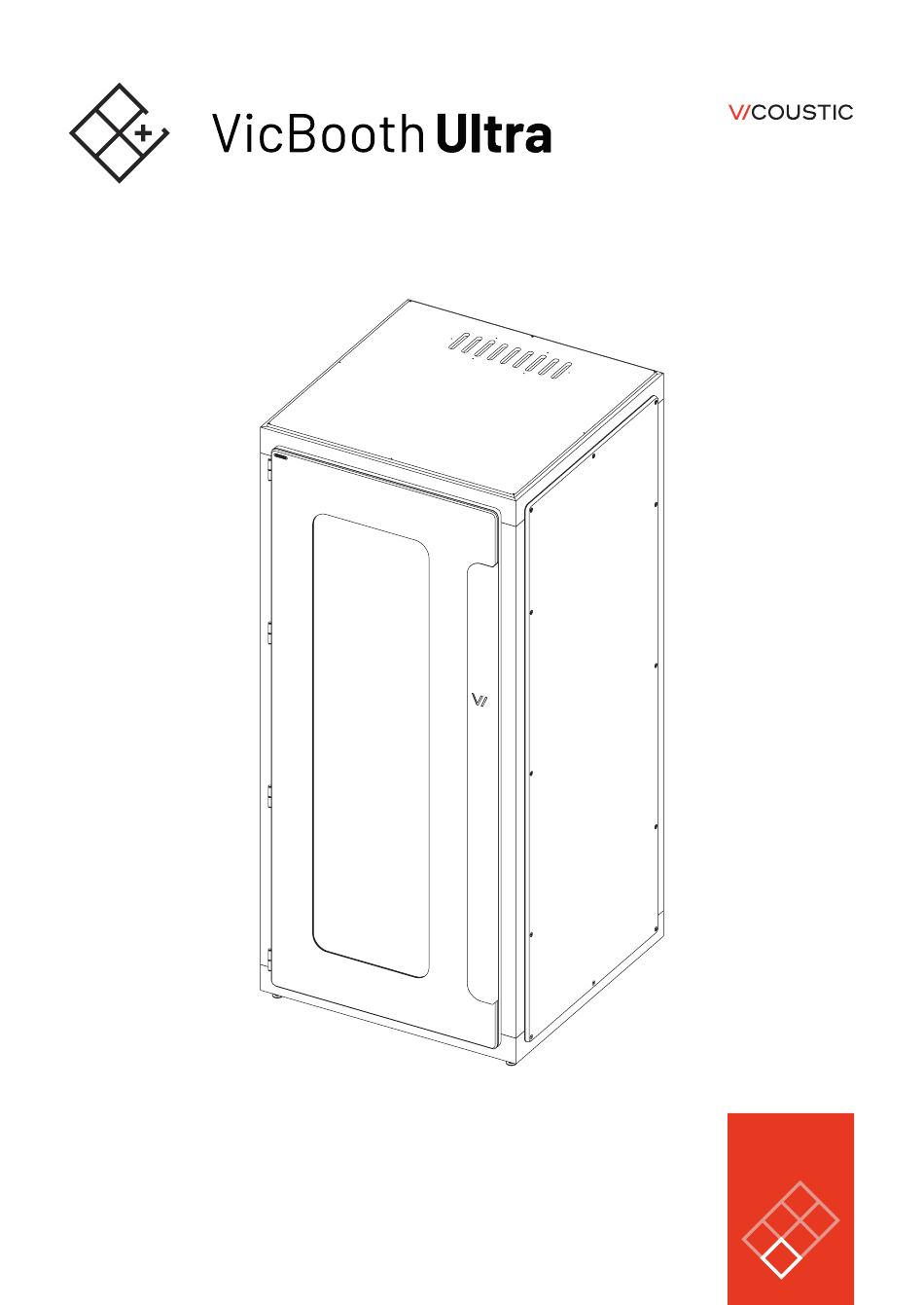

- Page 1 Installation Manual...
-
Page 2: Material Needed
Material Needed Included Ceiling | 1 uni. Door | 1 uni. Lateral | 3 uni. Floor | 1 uni. Structure | 4 uni. 32 uni. 16 uni. 16 uni. 18 uni. 48 uni. 18 uni. 6 uni. 6 uni. 4 uni. 8 uni. - Page 3 The precise leveling of the floor structure is crucial for the correct assembly and operation of the VicBooth Ultra - use a bubble level. Make sure the floor structure is in its final position - once assembled, the VicBooth Ultra should not be moved.
- Page 4 Insert wooden dowels (A) in the floor structure according to the diagram. Step’ s Material Screw the metal fittings (B) in the floor structure according to the diagram. Step’ s Material...
- Page 5 Insert the locking cams (C) in the Structure Pillars and insert the wooden dowels (A) in the top end of the structure pillars. Step 1 Step’ s Material 1 uni. Step 2...
- Page 6 Fit the Structure Beams on the floor structure according to the diagram and rotate the locking cams (C) by hand using a screwdriver - make sure the beams are completely inserted before rotating the locking cams to the locked position. Step’...
- Page 7 Remove the top covers and the ceiling panels from the ceiling structure - the PET and Vicycle layers stay attached to the top cover. Screw the metal fittings (B) in the ceilling structure according to the diagram. Step’ s Material...
- Page 8 Fit the ceiling structure on top of the structure beams according to the diagram and rotate the locking cams (C) by hand using a screwdriver - make sure the structures are completely inserted before rotating the locking cams to the locked position. Step’...
- Page 9 Make sure the holes are aligned before placing the screws (You can use two screwdrivers to help align the holes in the center of the panel). We advise one person to align the panels with the help of the screwdrivers and the other one to fasten the screws.
- Page 10 Carefully separate the door frame from the door. Fit the door frame using the 45mm screws (H) on the top and lower ends, and the 31mm screws (G) on the sides. Use the flat heads (E) and the 4mm Hex Keys (X). Step’...
- Page 11 Use the spacer provided to ensure even spacing of the door frame. Tighten the bolts following the order of fixing the screws as described in the diagram and the indications concerning the type of screws to be used. You can also use the metal spacer as a bottle opener. Fit the door by carefully sliding the hinges down into the hinge shaft on the Door Frame.
- Page 12 In some cases, due to the unevenness of the floor, slight bend can occur on the door frame. It may be necessary to loosen and/or tighten some fixing screws on the door frame so that it stays as parallel as possible to the door and guarantees perfect contact between the two surfaces.
- Page 13 Place the top cover on the ceiling structure according to the diagram. Fit the ceiling panels using the “J” screws. Step’ s Material...
- Page 14 Fit the ceiling panel using the “I” screws and flat washers - make sure the ventilation slots are aligned with the slots on the underside of the top panels. Step’ s Material Under no circumstances should the ventilation grids on the floor and ceiling be covered or obstructed.
- Page 15 If you need to insert a cable into VicBooth Ultra, you must do so from the inside out. Lift the cable entry cover and force the plug through the layers of PET so that it runs out through the cutout made for this purpose.
- Page 16 Get exclusive content on VicBooth Ultra For post-sale support, including warranty service or repair, register your VicBooth Ultra at: vicbooth.vicoustic.com/register. With your registration you will have access to the latest news, exclusive promotions and special offers. Main Office, R&D & Logistics Avenida do Pólo 3, Nº...
