Vicoustic VicBooth Ultra Installation Manual

Hide thumbs Also See for VicBooth Ultra:

Download this manual

Installation Manual

Ventilation

Unit

Need help?

Do you have a question about the VicBooth Ultra and is the answer not in the manual?

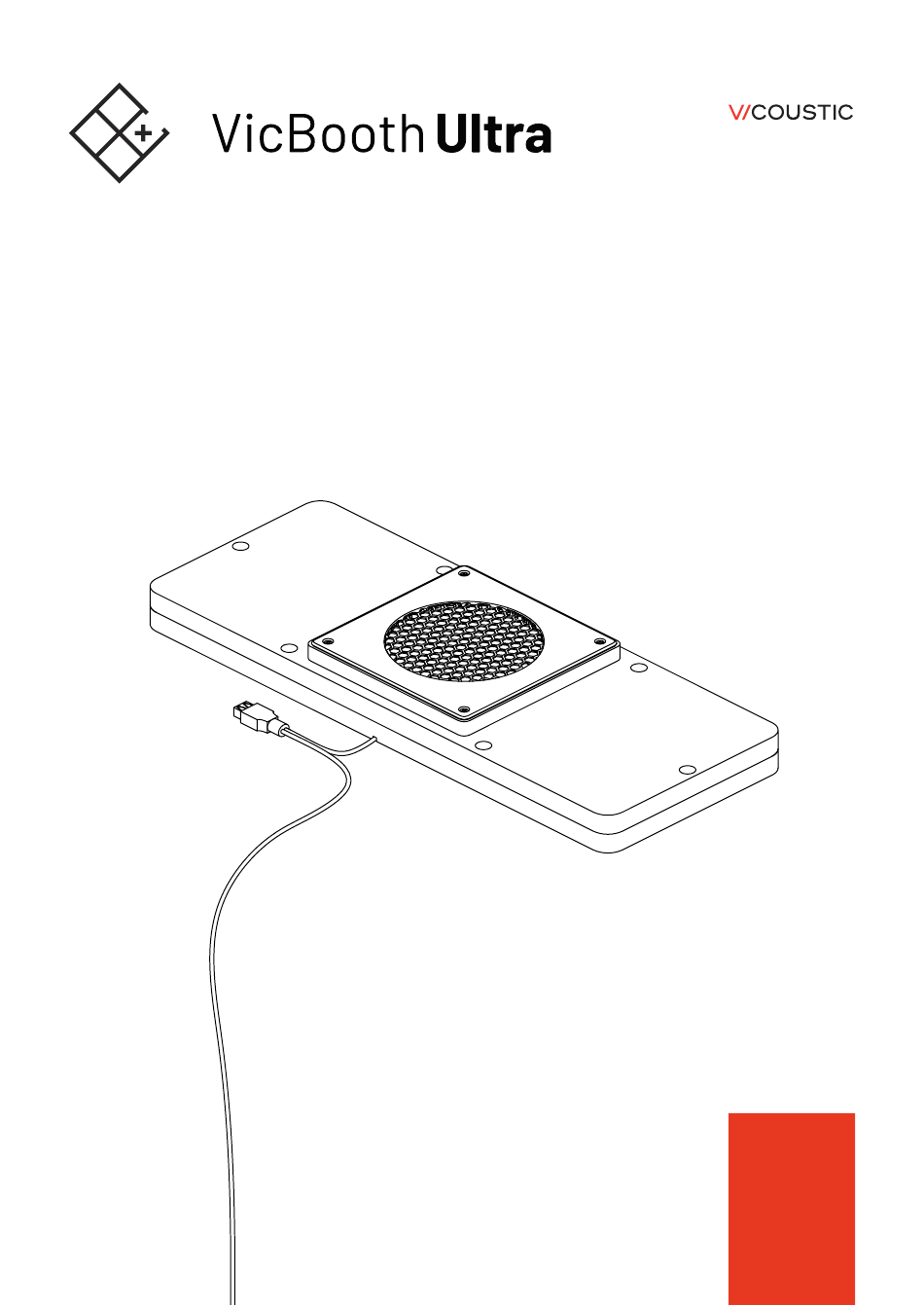

Page 1 Installation Manual Ventilation Unit...
Page 2: Material Needed
Material Needed Included USB extension cable (3m) | 1 uni. Insulation Seal | 1 uni. Ventilation unit | 1 uni. USB power adapter | 1 uni. Remote control electrical outlet | 1 uni. Fixing screws | 6 uni. Not included 6mm Phillips Screwdriver...
Page 3 Start by placing the Insulation seal on the ceiling of the VicBooth Ultra. Place the Ventilation unit aligned with the Insulation seal and the fixing holes.
Page 4 Fix the Ventilation unit using the included screws (P) and a 6mm Phillips Screwdriver. Step’ s Material 6mm Phillips Screwdriver...
Page 5 Connect the included USB extension. Step’ s Material Connect the Remote Control Electrical Outlet and the USB power adapter to a wall socket. You can switch the fan ON and OFF from inside the cabin using the remote control. Step’ s Material...
Page 6 We recommend that the speed controller should be set to the maximum speed (H).
Page 7 Multiple ventilation units can be connected in series using the included USB connection. We recommend connecting up to 3 units using the same USB power adapter.
