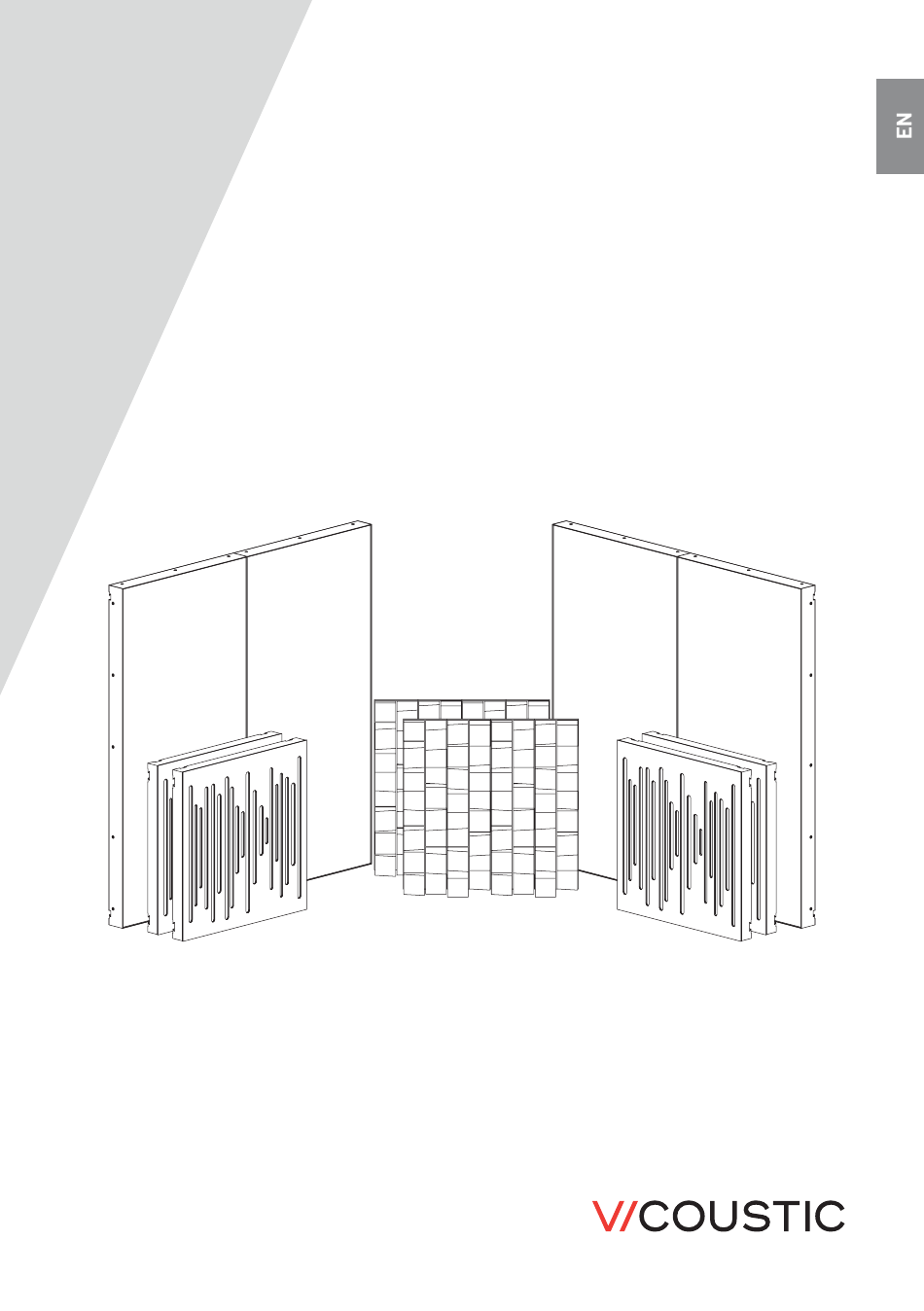

- Page 1 VicAudiophile VMT Kit Installation Manual...
-
Page 3: Material Needed
MATERIAL NEEDED Included VicSpacer x4 Flat Panel VMT x4 VicPET Wool x8 Multifuser 64 x2 G1_Velcro Hook G2_Velcro Loop VicFix J Profile 80mm | 3.14" x4 VicFix Corner 2+2 VicFix J Profile 595mm | 23.4" x6 VicPattern Ultra x4 Not Included 6mm Phillips Screwdriver Level Measuring Tape... - Page 4 VicSpacer Installation Wall Installation Mark the drill holes of the VicSpacers according to the diagram. In the case of installing two or more units, pay attention to the spacing between units. The dimensions marked between VicSpacers are for use of only one metal joint between them.
- Page 6 Ceilling Installation Mark the drill holes of the VicSpacers according to the diagram. In the case of installing two or more units, pay attention to the spacing between units. The dimensions marked between VicSpacers are for use of only one metal joint between them.
- Page 7 Cut the velcro tape G1 with the lenght of the plywood strips and apply it on the side indicated in the diagram . In case of fixing the VicSpacer with screws, we recommend that the velcro be applied after the panel is installed. Steps Material...
- Page 8 Flat Panel VMT Installation Apply the FlatPanel VMT. (Wall and Ceilling) If you need a stronger attachment of the Flat Panel VMT to the VicSpacer, use the Velcro G2 (hook) supplied with the product. Apply Velcro G2 over the Velcro G1 already affixed to the VicSpacer, remove the adhesive protector and press the Flat Panel VMT to ensure an even and precise adherence.
- Page 9 VicFix Corner Installation 406 mm | 15.984"...
- Page 10 VicPattern and Multifuser Wood MKII 64 Wall Installation Define where you want to install the panels and start marking the drill holes for fixing the profiles to the wall. 257,5 mm 80 mm...
- Page 12 Turn the panels on their back and apply the silicone drops as indicated in the diagram. Steps Material...
- Page 13 Please note: It is recommended to apply a blocking element such as a L profile or a small screw to avoid the end panels to slide off the VicFix J profile.
- Page 16 Rua Quinta do Bom Retiro Nº 16, Armazém 9 2820-690 Charneca da Caparica, Portugal T (+351) 212 964 100 Info and Sales E sales@vicoustic.com www.vicoustic.com © Vicoustic, 2021 | V2 No parts of this document might be copied and/or published without written consent of Vicoustic.
