Summary of Contents for Gentec TFT3500
- Page 1 INSTALLATION MANUAL FLOSTOP VALVES Knee Operated Valve TFT3500 Foot Operated Valve TFT3600 / TFT3700 Straight Shower Valve TFT1010 Adjustable Shower Valve TFT1010ADJ Shower Control Valve TFT1015KIT Shower Mixer Control Valve TFT1016KIT...
-
Page 2: Table Of Contents
Contents Product Features Product Range Technical Drawings Unit Components Wall Mounted Showers Installation Outlet Installation Knee Valve Installation Pedal Valve Installation Single Temp Straight Valve Time Adjustment Instructions Maintenance Product Warranty... -
Page 3: Product Features
Flostop Valves by Gentec The FLOSTOP Soft close, timed flow product range is anti-vandal and has been designed to withstand heavy use in any commercial application for over 1.000.000 cycles of operation. The hydraulically operated time flow tapware will enhance your facility by providing high-level hygiene and extensive energy and water savings. -
Page 4: Product Range
Product Range TFT3600 / TFT3600 KIT FLOOR / WALL MOUNTED FOOT OPERATED VALVE * KIT WITH SPOUT AVAILABLE TFT1010 TFT1010ADJ SINGLE TEMPERATURE STRAIGHT VALVE SINGLE TEMPERATURE STRAIGHT VALVE WITH ADJUSTABLE CARTRIDGE... - Page 5 TFT3500 / TFT3500KIT KNEE OPERATED VALVE * KIT WITH SPOUT AVAILABLE TTFT1016KIT TFT1015 KIT SHOWER MIXER VALVE WITH IN-WALL SINGLE TEMPERATURE SHOWER VALVE WITH IN-WALL STAINLESS STEEL BOX. STAINLESS STEEL BOX. www.gentecaustralia.com.au...
-
Page 6: Technical Drawings
Technical Drawings TFT3500 KNEE OPERATED VALVE G1/ 2" G1/ 2" 30.5 37.5 64.5 10:05 am TFT1010 TFT1010ADJ SINGLE TEMPERATURE STRAIGHT SHOWER SINGLE TEMPERATURE STRAIGHT SHOWER VALVE VALVE WITH ADJUSTABLE CARTRIDGE 37.5 G1/2” 37.5 *Pressure exceding 450 kPa will void warranty... - Page 7 TFT3600 / TFT3700 FLOOR / WALL MOUNTED FOOT OPERATED VALVE 50.5 G1 / 2" 186.6 G 1/2" 182.5 53.5 GENTECH AUSTRALIA PTY. LTD. TFT1015KIT SINGLE TEMPERATURE SHOWER VALVE SHOWER MIXER VALVE WITH IN-WALL STAINLESS STEEL BOX. WITH IN-WALL STAINLESS STEEL BOX. G 1/2”...
-
Page 8: Unit Components
Unit components KNEE OPERATED VALVE TFT1015KIT *Pressure exceding 450 kPa will void warranty... - Page 9 KNEE OPERATED VALVE Description Description Headvalve Holder Fixing Screws Plastic Lever Flange Flat Brass Spacer Wall plugs Spring Strainer Cartridge Important Note Flow Cup For the Maintenance Valve Body Instructions see Pag. 17. STRAIGHT SHOWER VALVE OPERATION REQUIREMENTS TFT1015KIT Description Pressure / Temperature Value Min Continuous Flow...
-
Page 10: Wall Mounted Showers Installation
Installation Instructions WALL-MOUNTED SHOWER KITS TFT1015 KIT, TFT1016 KIT Water Outlet Before connecting water to the valve, ensure to flush the line and remove all debris from the line. All fixtures must be installed with isolation valves and accessible. Water Inlet Working pressure must be between 150 and All screwed fittings connected to the 450kPa. - Page 11 For the TFT1016KIT only, screw in We recommend to have the shower levers for hot and cold controls and use mounted at 2.1 meters high. Gentec Lockseal to secure. Connect hot (left) offers two options for shower heads and cold (right) water on each side of the fixed head and adjustable head mixer.
-
Page 12: Outlet Installation
Installation Instructions Important Note for all units Please flush out new pipe work prior to Tapware must installed connecting the new tapware. requirements AS/NZS 3500 qualified plumber. Your mixer comes to All tapware should be installed with you already factory assembled and tested. isolation valves. -
Page 13: Knee Valve Installation
KNEE OPERATED VALVE TFT3500, TFT3500KIT Knee Valve Installation Screw the flange and knee valve into Place the flat brass nipple spacer on place using the necessary screws to the spring. Ensure the nipple is facing mount firmly onto the wall. -
Page 14: Pedal Valve Installation
Installation Instructions FOOT OPERATED VALVES TFT3600, TFT3700 Foot Valve Installation Use the 4 mounting screws to screw the pedal valve into place. Choose the position that suits better (floor or wall mounted) Figure 3 Figure 1 Convert the pedal valve from floor mounted to wall mounted: Remove the screw on the pedal lever. -
Page 15: Single Temp Straight Valve

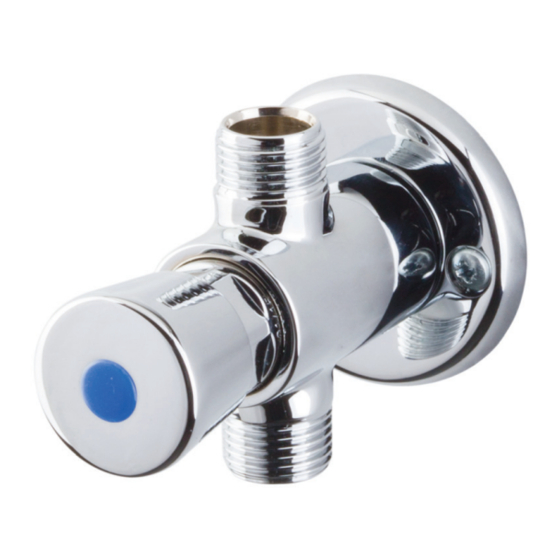

SINGLE TEMPERATURE STRAIGHT VALVES TFT1010, TFT1010ADJ Flush the new pipe prior to installation Install the strainer. Screw the valve body to the flange Connect the water inlet and outlet. Push into the button the colour indicator for hot or cold water. Note Measure and mark the two holes using The difference between the TFT1010... -
Page 16: Time Adjustment Instructions
TFT3600, TFT1015KIT, TFT1016KIT • To adjust the timing you will need to use the allen key provided (1.2mm) Fixed Timing Adjustment Please contact GENTEC before changing • Turning the screw in clockwise will flow cups reduce the run time. Our Flostop range is available in the following... -
Page 17: Maintenance
Maintenance SPARE PARTS Gaco Code Description TFT9010 Cartridge to fit TFT1010 Undo the stopper TFT9069 Adjustable Cartridge Set aside the crown ring Set aside the head valve from the stem TFT9300 Knee Operated Wand Remove the washer Gaco from the head TFT9304 Knee Operated Cartridge valve and replace with the new washer... -
Page 18: Product Warranty
Warranty GENTEC PRODUCT QUALITY WARRANTY You have purchased a quality product from GENTEC to be turned off; Australia Pty Ltd ABN 581 552 50285 ). This product 2.2.7 include pictures of the alleged defect; in a is covered by a 10 year replacement product reasonable time. - Page 19 4.3.1 an act, default, omission or representation other reasonably foreseeable loss or damage. made by some other person, excluding Gentec You are also entitled to have the Goods repaired or its manufacturer (for example, damage...
- Page 20 Warranty the Principal in relation to specific Goods. 5.3 The address for any notice to be delivered to the Principal is as follows: 4.5 However, nothing in this clause will prevent You from exercising any rights which You may have under the Competition and Consumer Act 2010 or any other law which cannot by law be excluded or modified by agreement.
