Step 12; Step 13 - ABB ACH580-01 PxR Frame R2 Instructions Manual

REPLACEMENT INSTRUCTIONS | ACH580-01 PXR UL TYPE 1/ 12, R2/R3/R4
Step Instruction
12

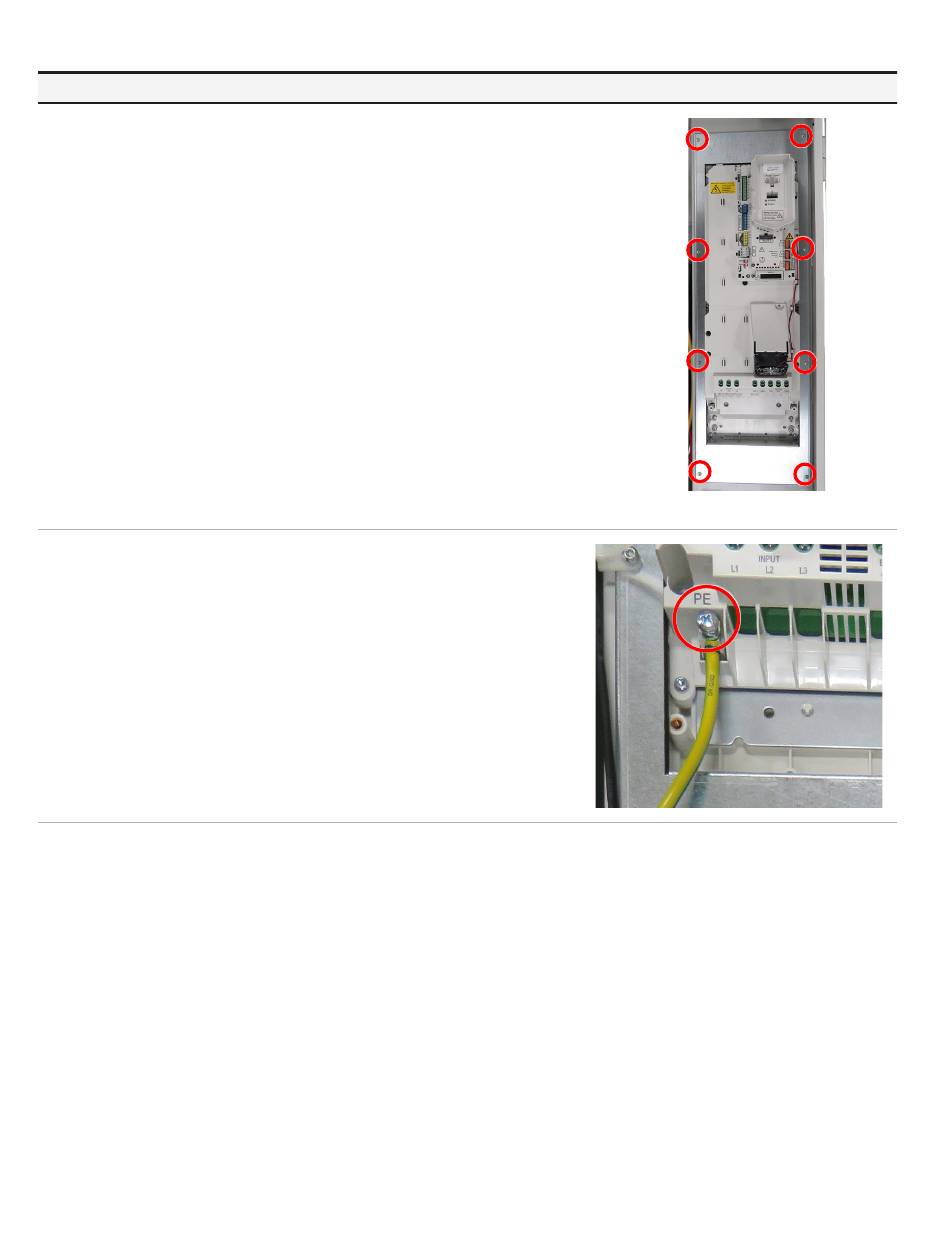

Place collar around drive. Using a T20 bit, secure the drive using the
M4x20 screws that were removed earlier.
Using a T20 bit, torque to 14 in-lb (1.5 Nm).
13
Secure the ground wire to the drive.
R2 & R3 Frame: Using a PZ3 bit, torque to 14 in-lb (1.5 Nm).
R4 Frame: Using a PZ3 bit, torque to 26 in-lb (2.9 Nm).
Diagram
6
