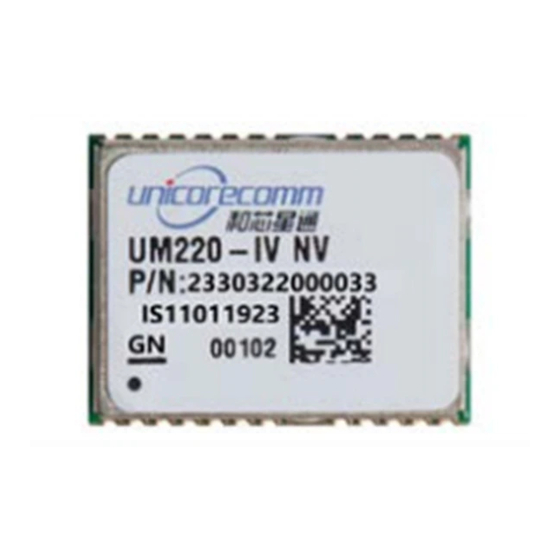

- Page 1 INSTALLATION AND OPERATION USER MANUAL WWW.UNICORECOMM.COM UM220-IV NV-GN Automotive Grade Multi-GNSS Positioning Module Copyright© 2009-2021, Unicore Communications, Inc. Data subject to change without notice.
- Page 2 Revision History Version Revision History Date Primary.《Unicorecomm UM220-IV NV-GN user manual》 Ver. 1.0 .0 Dec.2017 Version 1.0 Alpha release. Update definition name and performance Ver. 1.0.1 Oct.2018 parameter of pins Alpha release. Update reflow soldering information; Update Ver. 1.0.2 product label description;...
- Page 3 Installation: Containing the list of the product package and the details of product installation Technical Specification: Offering technical specifications of the product Hardware Specification: Offering all the information of hardware interface of the product Mechanical Features: Offering UM220-IV NV-GN dimensions, layout, and top views.
-
Page 4: Table Of Contents
Contents 1 INTRODUCTION ..........1 VERVIEW ............................1 EATURES ..........................2 NTERFACE ............................3 2 PRODUCT INSTALLATION ........4 NSTALLATION REPARATION ......................4 ARDWARE NSTALLATION ....................... 5 3 TECHNICAL SPECIFICATIONS ....... 6 LECTRICAL PECIFICATIONS ......................6 PERATION ONDITION ........................6 IMENSIONS ............................ -
Page 5: Introduction
QZSS signal and support AGNSS. When connected to network, the positioning speed will be improved by UNICORECOMM’s assist data service. UM220-IV NV-GN is compact in size and uses SMT pads to support fully automatic integration of standard discharge and reflow soldering, especially suitable for low cost and low power consumption fields. -
Page 6: Key Features
UM220-IV NV-GN User Manual 1.2 Key Features Power Voltage +2.8~3.6 VDC Power Consumption 90mW RF Input Input VSWR ≤2.5 Input Impedance 50Ω Antenna Gain 15～30dB Physical Characters Dimension 16.0*12.2*2.4mm Weight 0.8g Environment Operating Temperature -40℃ ~ +85℃ Storage Temperature -45℃ ~ +90℃... -
Page 7: Interface
Figure 1-2 Structure Chart UART UM220-IV NV-GN module COM1 is the primary serial port, which supports data transfer and firmware upgrade function. The signal input/output level is LVTTL. The default baud rate is 115200bps, which is adjustable, and can be configured up to 460800bps. During design in, please ensure that COM1 is connected to a PC or an external processor for firmware upgrades. -
Page 8: Product Installation
UM220-IV NV-GN User Manual 2 Product Installation 2.1 Installation Preparation UM220-IV NV-GN Modules are Electrostatic Sensitive Devices and require special precautions when handling. Follow the steps in section 2.2 in the correct order Electrostatic discharge (ESD) may cause damage to the device. All operations mentioned in this chapter should be carried out on an antistatic workbench, wear an antistatic wrist strap and use a conductive foam pad. -
Page 9: Hardware Installation
UM220 EVK; Step 4：Connect the PC to the EVK serial port through direct serial cable; Step 5：Power the evaluation board and initialize the UM220-IV NV-GN; Step 6：Run the uSTAR Step 7：Control the receiver through uSTAR to display constellations view, log messages, and... -
Page 10: Technical Specifications
UM220-IV NV-GN User Manual 3 Technical Specifications 3.1 Electrical Specifications Absolute Maximum Ratings Item Unit Condition Power Supply(VCC) -0.5 VCC Ripple Vrpp Digital IO -0.5 Vcc +0.2 Storage Temperature Tstg ℃ □Level 1 □Level 2 ■Level 3 □TBD 3.2 Operation Condition... -
Page 11: Pin Definition (Top View)
Figure 3-1 Mechanical Layout 3.4 Pin Definition (Top View) Figure 3-2 UM220-IV NV-GN Top View Name Electrical level Description For reset, Low level active, if you do not use nRESET LVTTL the pin, please leave it hanging AADET_N LVTTL Antenna detection... -
Page 12: Pcb Packaging
Main power — Ground 3.5 PCB Packaging Figure 3-3 UM220-IV NV-GN Recommended PCB Packaging (unit: mil, in brackets: mm) In the design of PCB solder, make sure the area of the UM220-IV NV-GN modules are fully covered with solder layer... -
Page 13: Hardware Design
4 Hardware Design 4.1 Design in Considerations To make UM220-IV NV-GN work normally, please properly connect the following: Connect all the GND pins to ground. Connect the RF_IN signal to the antenna, and the line will keep 50Ω impedance matching ... -
Page 14: Avoid Power Connection
5ms can also reset the UM220-IV NV-GN. > 5ms nRESET Figure 4-1 UM220-IV NV-GN Reset Requirement 4.4 Antenna If UM220-IV NV-GN uses s +3V active antenna, it is suggested to use the VCC_RF pin output to power the antenna through a feed inductor. -
Page 15: Serial Port
VCC_RF Figure 4-2 UM220-IV NV-GN Active Antenna +3V Solution If the UM220-IV NV-GN uses an active antenna other than +3V, the bias voltage V_BIAS required by the antenna is supplied to the antenna through a feed inductor. Figure 4-3 UM220-IV NV-GN Active Antenna (Other Than +3V) Solution If UM220-IV NV-GN uses a passive antenna, the antenna should be directly connected to RF_IN pin, while VCC_RF can be suspended. -
Page 16: Disassembly
6.1 Product Label Description 6.2 Package Description The UM220-IV NV-GN module is packaged in vacuum sealed aluminum foil anti-static bag with desiccant and moisture-proof agent. When using reflow welding process to weld modules, please strictly comply with IPC standard to conduct humidity control on modules. - Page 17 Check the humidity indicator card before soldering. The 30% indication is blue for normal conditions, as shown in figure 6-2. Bake modules firstly before soldering if the 30% indication turns pink, as shown in figure 6-3. The UM220-IV NV-GN modules are rated at MSL level 3. For more MSL information, please visit www.jedec.org.
-
Page 18: Clean
UM220-IV NV-GN User Manual Figure 6-3 The 30% Indication Is Pink The shelf life of UM220-IV NV-GN is one year. 7 Clean Do not use alcohol or other organic solvents to clean, or it may lead to fluid residues seeping into the shielding shell, causing mildew and other problems. - Page 19 和芯星通科技（北京）有限公司 Unicore Communications, Inc. 北京市海淀区丰贤东路7号北斗星通大厦三层 F3, No.7, Fengxian East Road, Haidian, Beijing, P.R.China, 100094 www.unicorecomm.com Phone: 86-10-69939800 Fax: 86-10-69939888 info@unicorecomm.com www.unicorecomm.com...
