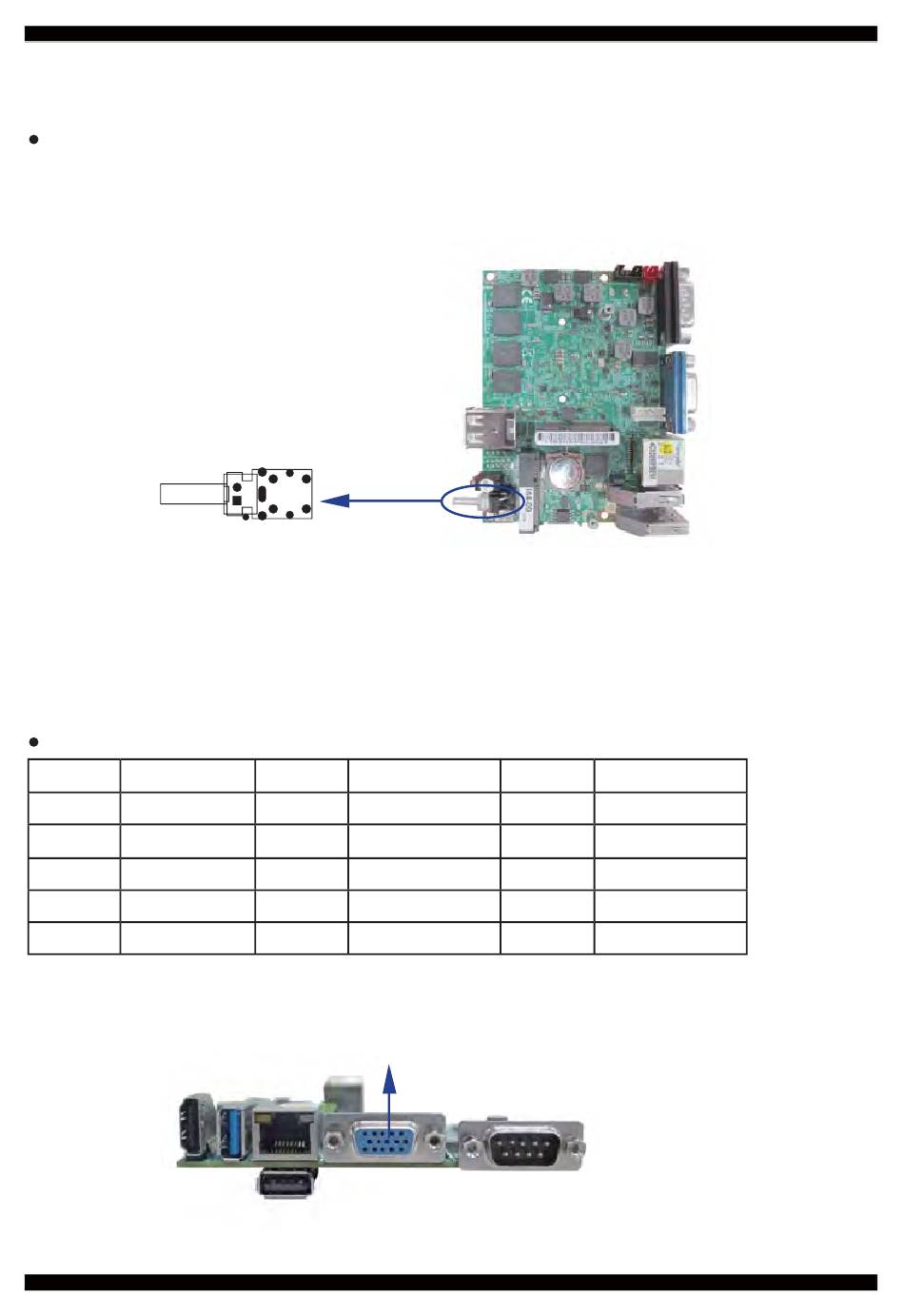

3-6 Power Button and LEDs

SWP11: Power Button and Power LED (Blue LED)

3-7 Display interface

CG1: VGA Connector (DB15 pin )
PIN NO. Description
1 RED
2 GREEN
3 BLUE
4 NC
5 GND
SWP11
pin1
PIN NO. Description
6 GND
7 GND
8 GND
9 NC
10 GND
CG1
PIN NO. Description
11 NC
12 DDC DATA
13 H-SYNC
14 V-SYNC
15 DDC CLOCK
