1-3 Installing the Mini PCI-e Card

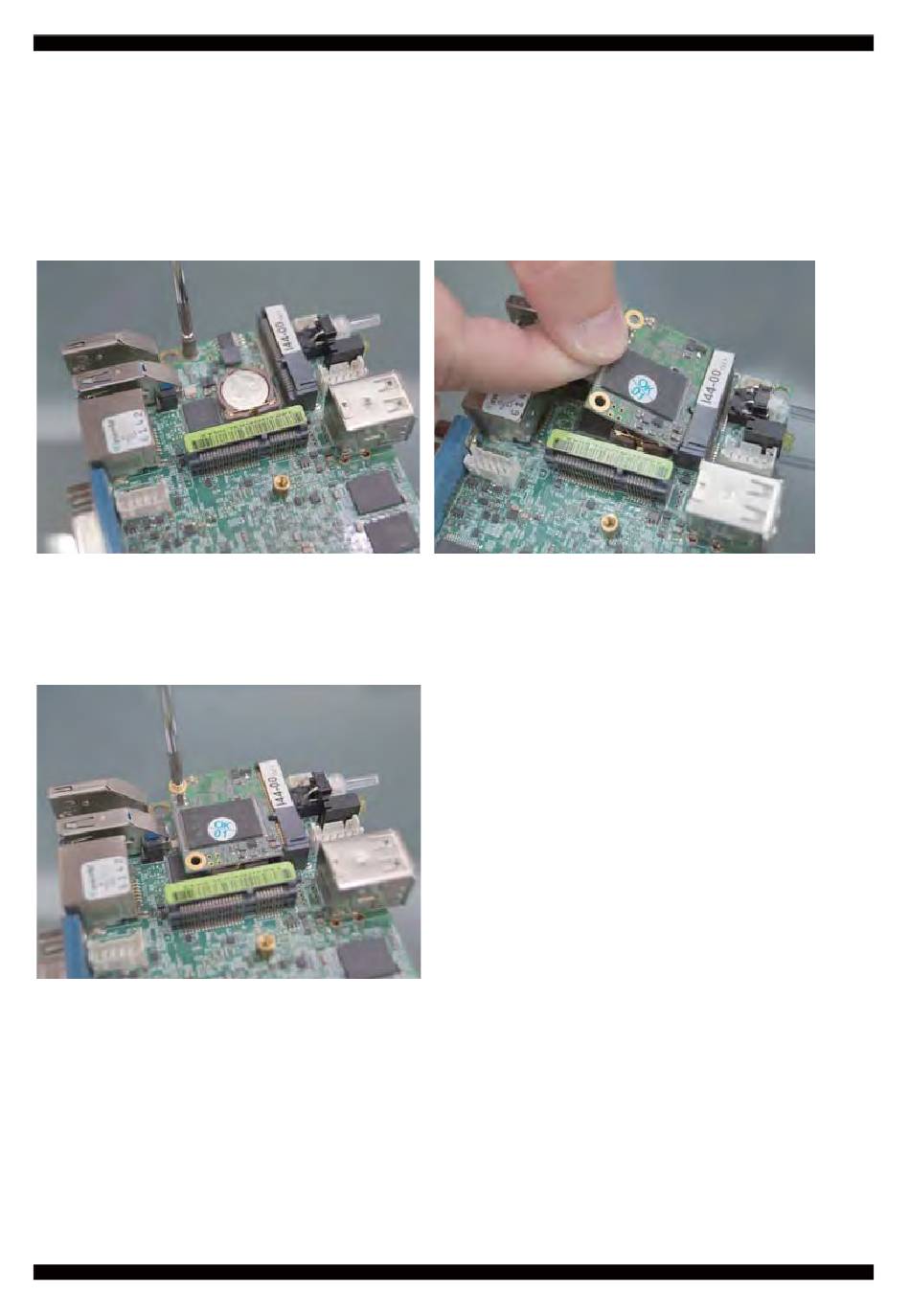

1. Unfasten the round-headed M2*6
screw for half size Mini PCI-e.
3. Fasten a round-headed M2*6 screw.
2. Install a mSATA card at the angle of 45°.
(The half size Mini PCI-e slot supports mSATA)
