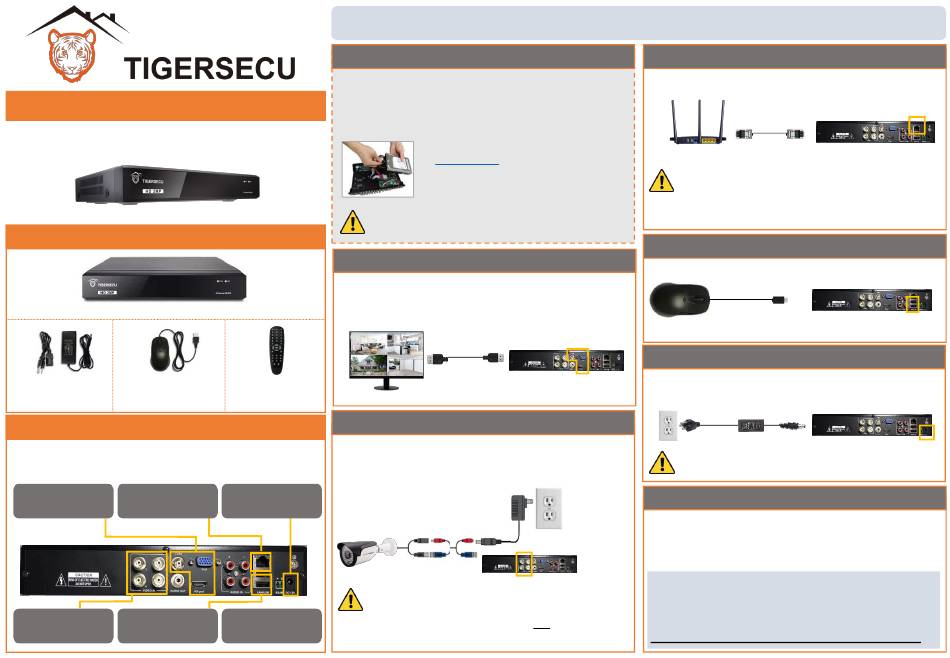

Tigersecu TS-2MP-302T04 Quick Start Manual

Super HD 1080P DVR Series
Quick Start Guide
Package Contents

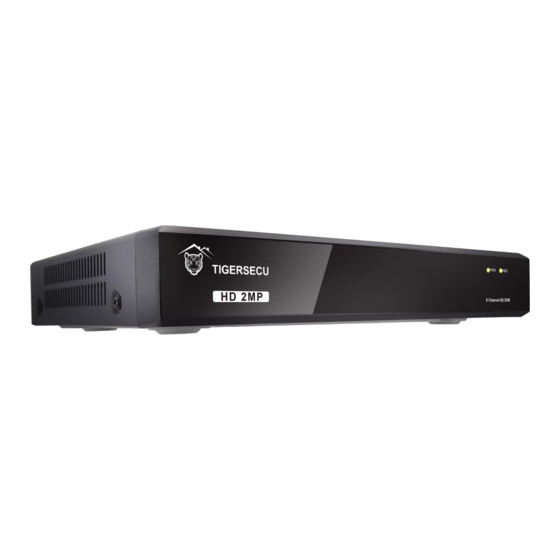

Super HD 1080P Security DVR
DVR Power Supply USB Mouse
*only for use with DVR
Set Up Your DVR
See the steps below (expanded instructions on the right) to
complete the initial setup of the DVR:
STEP 1: STEP 3:
Connect monitor Connect router
STEP 2: STEP 4:
Connect cameras Connect mouse
(Optional) Install/replace hard drive
Skip this step if you have a DVR with pre-installed hard
disk drive (HDD). Install a surveillance HDD (WD purple
hard drive is recommended) to record video footage. Or
upgrade your HDD to add extra recording space.
Ensure DVR is powered off and power adapter is
disconnected before installing/replacing HDD.
STEP 1: Connect monitor
Connect the DVR to a TV or desktop computer monitor
using an HDMI, VGA, or CVBS cable (not included). Multiple
monitors may be connected to the DVR at the same time.
Remote Control
Monitor
STEP 2: Connect cameras
Test your cameras prior to selecting a permanent
mounting location by temporarily connecting the
cameras and cables to your DVR.
STEP 5:
Connect power
Wired
Camera BNC Cable
This DVR works with 2MP (1920 x 1080 pixels) HD-
TVI, AHD, CVI, and ONVIF 2.0+ IP cameras, and
STEP 6:
analog cameras. This DVR does not work with SDI
Startup Wizard
cameras.
Front and back panels shown are for illustration only.
Your DVR's back panel may appear different, with the same ports in different locations.
• See the Installation chapter of the
User Manual for detailed instructions.
• Format HDD during STEP 6 Startup
Wizard.
++
DVR
Camera
power
supply
(not included)
```
DVR
STEP 3: Connect router
Connect the DVR to your router using an Ethernet cable
(not included).
Router
High speed internet connection and a router (not
included) are required to enable remote viewing
and receive firmware updates. Internet is not
required for local viewing.
STEP 4: Connect mouse
Connect the included mouse to a USB port on the DVR.
Wireless mouse (not included) is also supported.
STEP 5: Connect power
Use the included power adapter to connect the DVR to an
electrical outlet.
The Power Supply included with the DVR is
designed ONLY for use with the TIGERSECU DVR.
STEP 6: Startup Wizard
The TIGERSECU Startup Wizard will begin when you first
power up your DVR. The Startup Wizard will help you
configure core DVR settings.
After completing the Startup Wizard, create a new DVR
password at Configuration Menu > User. Record your
password below and store in a secure place:
DVR
