Summary of Contents for LG W2220P-BF

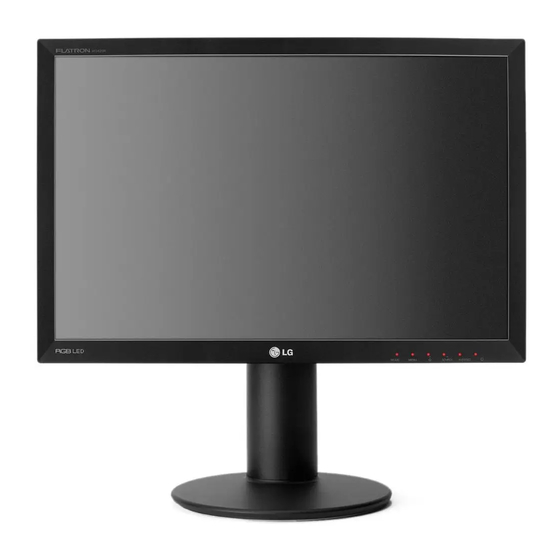

- Page 1 User's Guide W2220P ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. ee the label attached on the product and give the information to your dealer when you ask for service.
-
Page 2: Important Precautions
Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. - Page 3 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
-
Page 4: On Cleaning
Important Precautions On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. - Page 5 Accessories !!! Thank for selecting LGE products !!! Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. User's Guide/Cards DVI-D Signal Cable (This feature is not available in all countries.) NOTE This accessories may look different from those shown here.
-
Page 6: Connecting The Display
Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices are turned off. Connecting the stand base Place the monitor with its front facing downward on a cushion or soft cloth. Assemble the stand base into the standbody in the correct direction as shown in the picture. -
Page 7: Removing The Stand Base
Connecting the Display Removing the stand base Place the monitor with its front facing downward on a cushion or soft cloth. While pressing the latches, push the stand base in the direction of the arrow to separate from the stand body. IMPORTANT This illustration depicts the general model of connection. - Page 8 Connecting the Display Swivel Range : 355˚ Height Range : maximum 4.33 inches (110.0 mm) WARNING You do not need to replace the Locking pin after it is removed, to adjust its height. ERGONOMIC It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees.
-
Page 9: Using The Pivot Function
Connecting the Display Using the Pivot function -The pivot function allows you to rotate the screen 90 degrees clockwise. Lift the monitor to its highest height to utilize the Pivot function. . Landscape & Portrait : You can rotate the panel 90 Please be cautious and avoid contact between the monitor head and the Stand Base when rotating the screen to access the Pivot function. - Page 10 Connecting the Display Connecting with the PC/AV equipment Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connect signal input cable of the signal cable. Connect DVI-D Cable Connect D-SUB Cable Connect HDMI Cable NOTE...
- Page 11 Connecting the Display Put the power cord and cables into the cable holder. Cable Holder Press the Power Button ( power is turned on, the 'Self Image Setting Function' is executed automatically. (Only for D-SUB input) NOTE ‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.
-
Page 12: Front Panel Controls
Control Panel Functions Front Panel Controls MODE Button Use this button to move to items in MODE (MOVIE, TEXT, PHOTO, USER, sRGB). For more information, refer to page 16. MENU Button Use this button to enter or exit the On Screen Display. OSD LOCKED/UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed. - Page 13 Control Panel Functions Buttons (SOURCE Hot key) AUTO/SET Button Power Button Power Indicator Use these buttons to select or adjust functions in the On Screen Display. To adjust the headphone/earphone volume. Press the AUTO/SET button to MUTE ON and press it once again to MUTE OFF.
-
Page 14: On Screen Display (Osd) Control Adjustment
On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. -
Page 15: On Screen Display(Osd) Selection And Adjustment
On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu MODE MOVIE TEXT PHOTO USER sRGB BRIGHTNESS PICTURE CONTRAST GAMMA BLACK LEVEL COLOR COLOR TEMP (PRESET) 5700K 6500K 7500K 8500K 9300K... - Page 16 On Screen Display(OSD) Selection and Adjustment TRACKING HORIZONTAL VERTICAL CLOCK PHASE SHARPNESS LANGUAGE SETUP OSD POSITION (HORIZONTAL / VERTICAL) WHITE BALANCE OVERSCAN POWER INDICATOR 4:3 IN WIDE FACTORY RESET NOTE The order of icons may differ depending on the model (14~21). Adjusts the position of the DSUB screen...
- Page 17 On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you press the MODE button on the front of the monitor. Menu Name Icons Sub-menu Name Main menu Description MOVIE It is a mode that the screen is adjusted to the best to view the videos.
- Page 18 On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Main Menu MENU Menu Name...
- Page 19 On Screen Display(OSD) Selection and Adjustment Main menu PICTURE D-SUB/DVI-D input HDMI Input MENU : Exit : Decrease : Increase : Select another sub-menu Sub menu Description BRIGHTNESS To adjust the brightness of the screen. To adjust the contrast of the screen. CONTRAST GAMMA Set your own gamma value.
- Page 20 On Screen Display(OSD) Selection and Adjustment Main menu COLOR PRESET Mode USER Mode MENU : Exit : Decrease : Increase SET : Select another sub-menu Use the button to go to sub- menu. MENU : Exit : Move SET : Select another sub-menu Sub menu Description Select either PRESET or USER to adjust...
- Page 21 On Screen Display(OSD) Selection and Adjustment Main menu TRACKING MENU : Exit : Decrease : Increase : Select another sub-menu Sub menu Description HORIZONTAL To move image left and right. VERTICAL To move image up and down. To minimize any vertical bars or CLOCK stripes visible on the screen background.
- Page 22 On Screen Display(OSD) Selection and Adjustment Main menu SETUP D-SUB input HDMI input MENU : Exit : Adjust : Adjust : Select another sub-menu NOTE If this does not improve the screen image, restore the factory default settings. If necessary, execute the white balance function again.
-
Page 23: Troubleshooting
Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the display connected? Is the power indicator light on? Is the power on and the power indicator red? Is the power indicator blinking? Do you see an "OUT OF RANGE"... -
Page 24: Display Image Is Incorrect
Troubleshooting Display image is incorrect Display Position is incorrect. On the screen background, vertical bars or stripes are visible. Any horizontal noise appearing in any image or characters are not clearly portrayed. IMPORTANT Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed. -
Page 25: The Audio Function Is Not Working
Troubleshooting Display image is incorrect The screen color is mono or abnormal. The screen blinks. Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message? Have you installed the display driver? The Audio function is not working Picture OK & No sound. •... -
Page 26: Specifications
Specifications 22.0 inches (55.867 cm) Flat Panel Active matrix-TFT LCD Display Anti-Glare coating Visible diagonal size : 55.867 cm 0.282 x 0.282 mm (Pixel Pitch) Sync Input Horizontal Freq. Vertical Freq. Input Form Signal Input Video Input Input Form Resolution Recommend Plug&Play DDC 2B... -
Page 27: Preset Modes (Resolution)
Specifications Preset Modes (Resolution) Display Modes (Resolution) VESA VESA VESA VESA VESA 1024 x 768 VESA 1024 x 768 VESA 1152 x 864 1280 x 1024 VESA 1280 x 1024 VESA 1680 x 1050 VESA 1680 x 1050 VESA HDMI VEDIO INPUT Display Modes (Resolution) 480P 576P... -
Page 28: Installing The Wall Mount Plate
Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. Kensington Security Slot Connected to a locking cable that can be purchased separately at most computer stores. After moving the product to face downward, make sure to place it on a soft cloth or a cushion to avoid surface damage. - Page 29 Digitally yours...
