- Page 1 Order Number : GETEC-C1-09-161 FCC Class B Certification Page 1 / 1 Test Report Number : GETEC-E3-09-085 APPENDIX G : USER’S MANUAL EUT Type: LCD Monitor FCC ID.: BEJW2220PU...

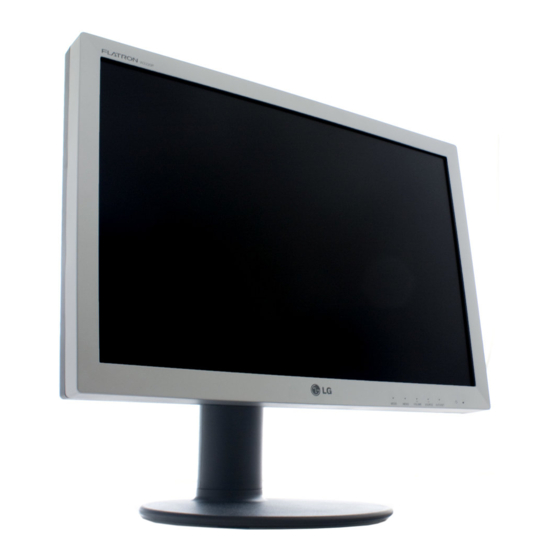

- Page 2 User's Guide W2220P ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. ee the label attached on the product and give the information to your dealer when you ask for service.
- Page 3 Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
- Page 4 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
- Page 5 Important Precautions On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching.
- Page 6 Accessories !!! Thank for selecting LGE products !!! Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Power Cord User's Guide/Cards (Depending on the country) DVI-D Signal Cable 15-pin D-Sub Signal Cable (This feature is not available (To set it up, this signal cable may in all countries.)
- Page 7 Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices are turned off. Connecting the stand base Place the monitor with its front facing downward on a cushion or soft cloth. Check the direction of the stand base(FRONT, REAR) and assemble to the stand body.
-
Page 8: Removing The Stand Base
Connecting the Display Removing the stand base Place the monitor with its front facing downward on a cushion or soft cloth. While pressing the latches, push the stand base in the direction of the arrow to separate from the stand body. IMPORTANT This illustration depicts the general model of connection. - Page 9 Connecting the Display Swivel Range : 355˚ Height Range : maximum 4.33 inches (110.0 mm) 110.0 mm * Please be sure to remove the Locking pin to adjust the height. WARNING You do not need to replace the Locking pin after it is removed, to adjust its height. ERGONOMIC It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees.
-
Page 10: Using The Pivot Function
Connecting the Display Using the Pivot function -The pivot function allows you to rotate the screen 90 degrees clockwise. Lift the monitor to its highest height to utilize the Pivot function. . Landscape & Portrait : You can rotate the panel 90 clockwise. - Page 11 Connecting the Display Connecting with the PC/AV equipment Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connect signal input cable and power cord in order, then tighten the screw of the signal cable.
- Page 12 Connecting the Display Put the power cord and cables into the cable holder. Cable Holder Press the Power Button ( ) on the front panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically. (Only for D-SUB input) NOTE ‘...
-
Page 13: Front Panel Controls
Control Panel Functions Front Panel Controls MODE Button Use this button to move to items in MODE (MOVIE, TEXT, PHOTO, USER, sRGB,). For more information, refer to page 20. MENU Button Use this button to enter or exit the On Screen Display. OSD LOCKED/UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed. -
Page 14: Auto Image Adjustment
Control Panel Functions Use these buttons to select or adjust functions in the Buttons On Screen Display. To adjust the headphone/earphone volume. Press the AUTO/SET button to MUTE ON and press it once again to MUTE OFF. (Only for HDMI input) MUTE OFF VOLUME Use the... -
Page 15: Screen Adjustment
On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. - Page 16 On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. : D-SUB(Analog signal) input DSUB : DVI-D(Digital signal) input : HDMI input HDMI Main menu Sub-menu Supported signals Description MODE MOVIE It is a mode that the screen is DSUB...
- Page 17 On Screen Display(OSD) Selection and Adjustment TRACKING HORIZONTAL Adjusts the position of the DSUB screen VERTICAL CLOCK DSUB Adjusts the clarity and stability of the screen PHASE SHARPNESS DSUB HDMI LANGUAGE SETUP DSUB Additional settings OSD POSITION HDMI (HORIZONTAL / VERTICAL) WHITE BALANCE DSUB OVERSCAN...
- Page 18 On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you press the MODE button on the front of the monitor. Menu Name MODE MENU : Exit : Move Icons SET : Select Sub-menu Name MOVIE Main menu Description MOVIE It is a mode that the screen is adjusted to the...
- Page 19 On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears.
-
Page 20: Black Level
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description PICTURE D-SUB/DVI-D input BRIGHTNESS To adjust the brightness of the screen. PICTURE BRIGHTNESS To adjust the contrast of the screen. CONTRAST CONTRAST GAMMA Set your own gamma value. GAMMA : 1.8 ~ 2.6 On the monitor, high gamma values display whitish images and low gamma... - Page 21 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description COLOR PRESET Mode COLOR Select either PRESET or USER to adjust COLOR TEMP COLOR TEMP PRESET the screen color. 6500K GREEN Select the preset color temperature. PRESET BLUE 5700K-6500K: Yellow screen color. 6500K-7500K: Red screen color.
- Page 22 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description TRACKING TRACKING HORIZONTAL To move image left and right. HORIZONTAL VERTICAL To move image up and down. VERTICAL To minimize any vertical bars or CLOCK TRACKING stripes visible on the screen background.
- Page 23 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description SETUP To choose the language in which the control LANGUAGE SETUP names are displayed. LANGUAGE ENGLISH OSD POSITION To adjust position of the OSD window on the HORIZONTAL screen. POSITION VERTICAL WHITE...
-
Page 24: No Image Appears
Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the • Check and see if the power cord is connected display connected? properly to the power outlet. Is the power indicator •... -
Page 25: Display Image Is Incorrect
Troubleshooting Display image is incorrect Display Position is • Press the AUTO/SET button to automatically incorrect. adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display. - Page 26 Troubleshooting Display image is incorrect The screen color is • Check if the signal cable is properly connected mono or abnormal. and use a screwdriver to fasten if necessary. • Make sure the video card is properly inserted in the slot. •...
-
Page 27: Dimensions And Weight
Specifications 22.0 inches (55.867 cm) Flat Panel Active matrix-TFT LCD Display Anti-Glare coating Visible diagonal size : 55.867 cm 0.282 x 0.282 mm (Pixel Pitch) Sync Input Horizontal Freq. 30 - 83 kHz (Automatic) Vertical Freq. 56 - 75 Hz (Automatic) Input Form Separate Sync. -
Page 28: Preset Modes (Resolution)
Specifications Preset Modes (Resolution) - D-sub(Analog) / DVI-D(Digital) INPUT Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz) 720 X 400 31.468 640 x 480 31.469 VESA 640 x 480 37.500 VESA 800 x 600 37.879 VESA VESA 800 x 600 46.875 VESA 1024 x 768... - Page 29 Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. After moving the product to face downward, make sure to place it on a soft cloth or a cushion to avoid surface damage.
-
Page 30: Fcc Compliance Statement
Regulatory Information cont. respecte toutes les exigences du Règlement sur le FCC Compliance Statement matériel brouilleur du Canada. This equipment has been tested and found to comply NOTICE within the limits of a Class B digital device pursuant to Part The regulations are applied only to the products with the 15 of the FCC Rules. - Page 31 Regulatory Information cont. Why do we have environmentally labelled computers? visual ergonomics. In many countries, environmental labelling has become an established method for encouraging the adaptation of Below you will find a brief summary of the ecological goods and services to the environment. With the growing requirements met by this product.
- Page 32 Congratulations! Information for Environmental Preservation The display you have just purchased carries the TCO’03 LGE. announced the 'LG Declaration for a Cleaner Displays label. Environment' in 1994, and this ideal has served as a This means that your display is designed,manufactured guiding managerial principle ever since.
- Page 33 à la fois les aspects Informationen zur Erhaltung der Umwelt économiques et sociaux de nos activités, tout en Im Jahr 1994 verkündete LGE die 'LG Declaration for a respectant l’environnement. Cleaner Environment' (LG Erklärung für eine sauberere Umwelt).
- Page 34 La LGE. ha annunciato nel 1994 la cosiddetta 'LG Declaration for a Cleaner Environment' (Dichiarazione di Promocionamos actividades orientadas a la conservación LG a favore di un ambiente più pulito), un ideale che da del medio ambiente y desarrollamos nuestros productos allora funge da principio ispiratore della gestione específicamente para que se ajusten a la filosofía que...
- Page 35 'ƒÂÍ·‡ˆË˛ LG ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚', het milieu ÍÓÚÓ‡ˇ Ò ÚÂı ÔÓ ÒÎÛÊËÚ ÓÒÌÓ‚Ì˚Ï ÔË̈ËÔÓÏ LGE. publiceerde in 1994 de 'LG Declaration for a Cleaner ÛÔ‡‚ÎÂÌˡ. Õ‡ ÓÒÌÓ‚Â ˝ÚÓÈ ‰ÂÍ·‡ˆËË Ï˚ ÒÏÓ„ÎË Environment' (de LG-verklaring met betrekking tot een Ô‰ÔËÌˇÚ¸ ‰ÂÈÒڂˡ, Ó·ÂÒÔ˜˂‡˛˘ËÂ...
- Page 36 ÔËÂÏÎÂÏÓ„Ó ÏÂÚÓ‰‡. «‡ ·ÓΠÔÓ‰Ó·ÌÓÈ ËÌÙÓχˆËÂÈ ÔÓ Ì‡¯ÂÈ ÔÓ„‡ÏÏ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ó·‡˘‡ÈÚÂÒ¸ Í (EPA applied model only) ÏÂÒÚÌÓÏÛ ÔÓÒÚ‡‚˘ËÍÛ ËÎË Ô‰ÒÚ‡‚ËÚÂβ ÍÓÔÓ‡ˆËË LG. is a set of power-saving guidelines NERGY issued by the U.S. Environmental Protection Ã˚ ÓËÂÌÚËÛÂÏÒˇ ̇ Ó·ÂÒÔ˜ÂÌË ˝ÍÓÎӄ˘ÂÒÍÓÈ...
- Page 37 Regulatory Information cont. WEEE un bidone della spazzatura barrato da una croce (for Europe ) significa che il prodotto è coperto dalla direttiva europea 2002/96/EC. 2.Tutti i prodotti elettrici ed elettronici dovrebbero essere smaltiti separatamente rispetto alla raccolta differenziata municipale, mediante impianti di raccolta specifici designati dal governo o dalle autorità...
- Page 38 Regulatory Information cont. 4.Wilt u meer informatie over de verwijdering van eller de lokale myndigheder. uw oude toestel? Neem dan contact op met uw 3.Korrekt bortskaffelse af dit gamle apparat er med gemeente, de afvalophaaldienst of de winkel til at forhindre mulige skadevirkninger på miljøet waar u het product hebt gekocht.
- Page 39 Regulatory Information cont. Portuguese Hungarian Slovak Polish Czech Croatian...
- Page 40 Regulatory Information cont. Estonian Latvian Lithuanian...
- Page 41 Digitally yours...
