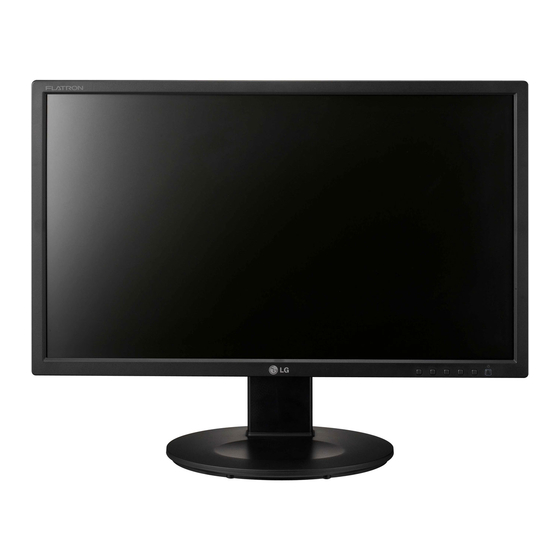

LG W1946T User Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. Monitor
  5. W1946T
  6. User manual
LG W1946T User Manual

LG W1946T User Manual

Hide thumbs Also See for W1946T:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Downloaded from ManualMonitor.com Manuals
M
ake sure to read the Important Precautions before using the
product. Keep the User's Guide(CD) in an accessible place for future
reference.
S
ee the label attached on the product and give the information to
your dealer when you ask for service.
User's Guide
W1946T
W1946TN
W2046T
W2246T
W2346T
W1946S
W1946SN
W2046S
W2246S
W2346S

Advertisement

Table of Contents
loading

Related Manuals for LG W1946T

Summary of Contents for LG W1946T

  • Page 1 User’s Guide W1946T W1946TN W2046T W2246T W2346T W1946S W1946SN W2046S W2246S W2346S ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. ee the label attached on the product and give the information to your dealer when you ask for service.

  • Page 2: Important Precautions

    Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
  • Page 3 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

  • Page 4: On Cleaning

    Important Precautions On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching.
  • Page 5 (This feature is not available in all attached to this product before countries.) shipping out.) (Only W1946T/W1946TN/W2046T/ W2246T/W2346T NOTE This accessories may look different from those shown here. User must use shielded signal interface cables (D-sub 15 pin cable, DVI-D cable) with ferrite cores to maintain standard compliance for the product.

  • Page 6: Connecting The Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand Place the monitor with its front facing downward on a soft cloth. Assemble the Stand Body into the Assemble the Stand Base(Front, product in the correct direction as shown in...

  • Page 7: Disassembling The Stand

    Connecting the Display Disassembling the stand Place the monitor face Down on the Put a cushion or soft cloth on aflat cushion or soft cloth. surface. Change your lock on the product as it follows and turn it in the arrow direction. If you can't release the stand base even the locking knob is at a release position, Please push the indicated knob down and retry it.
  • Page 8 Connecting the Display Pull out the Stand to remove. Pushing the PUSH button, Take the stand body from hinge body. Good Position Bad Position Warning: You can hurt your finger. Downloaded from ManualMonitor.com Manuals...

  • Page 9: Positioning Your Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display -After installation, adjust the angle as shown below. Adjust the position of the panel in various ways for maximum comfort. Tilt Range : -5˚...

  • Page 10: Connecting With The Pc

    Connecting the Display W1946T/W1946TN/W2046T/W2246T/W2346T Connecting with the PC Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connect signal input cable and power cord in order, then tighten the screw of the signal cable.
  • Page 11 Connecting the Display W1946S/W1946SN/W2046S/W2246S/W2346S Connecting with the PC Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connect signal input cable and power cord in order, then tighten the screw of the signal cable.

  • Page 12: Using The Cable Holder

    Connecting the Display Using the cable holder (This feature is not available in all models.) W1946T/W1946TN/W2046T Cable holder W1946S/W1946SN/W2046S Cable holder Downloaded from ManualMonitor.com Manuals...

  • Page 13: Control Panel Functions

    Control Panel Functions Front Panel Controls W1946T/W1946TN/W2046T/W2246T/W2346T W1946S/W1946SN/W2046S/W2246S/W2346S MENU Button OSD LOCKED/UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. The message "OSD LOCKED" should appear.
  • Page 14 This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode). The best display mode is W1946S/W1946SN/W1946T/W1946TN : 1360 x 768 W2046S/W2046T : 1600 x 900 W2246S/W2346S/W2246T/W2346T : 1920 x1080 When two input signals are connected, you can select the INPUT Button input signal (D-SUB/DVI) you want.

  • Page 15: On Screen Display (Osd) Control Adjustment

    On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls.

  • Page 16: On Screen Display(Osd) Selection And Adjustment

    On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. : D-SUB(Analog signal) input DSUB : DVI-D(Digital signal) input DVI-D Main menu Sub-menu Supported input Description To adjust the brightness, contrast BRIGHTNESS PICTURE DSUB...
  • Page 17 On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears.
  • Page 18 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description To adjust the brightness of the screen. BRIGHTNESS To adjust the contrast of the screen. CONTRAST SHARPNESS To adjust the clearness of the screen. Exit : Exit : Decrease : Increase : Select another sub-menu : Restart to select sub-menu...
  • Page 19 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description W1946T/W1946TN/W2046T/W2246T/W2346T HORIZONTAL To move image left and right. To move image up and down. VERTICAL To minimize any vertical bars or CLOCK stripes visible on the screen background. The horizontal screen size will also change.
  • Page 20 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description LANGUAGE To choose the language in which the control names are displayed. Use this function to set the power POWER indicator on the front side of the monitor INDICATOR to ON or OFF.
  • Page 21 On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MODE Button, then the main menu of the OSD appears.
  • Page 22 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description NORMAL Select this when you want to use the product in the most general using environment. MOVIE Select this when you are watching a video or movie. INTERNET Select this when you are working on the document (Word etc.) DEMO This is used for advertising in the store.
  • Page 23 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description WIDE Switch to full screen mode according to input image signal. Change the input image signal ratio to ORIGINAL original. * This function works only if input resolution is lower than monitor ratio (16:9).

  • Page 24: Troubleshooting

    Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the • Check and see if the power cord is connected display connected? properly to the power outlet. Is the power indicator •...

  • Page 25: Display Image Is Incorrect

    Troubleshooting Display image is incorrect Display Position is • Press the AUTO button to automatically adjust incorrect. your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display.
  • Page 26 Troubleshooting Display image is incorrect The screen color is • Check if the signal cable is properly connected mono or abnormal. and use a screwdriver to fasten if necessary. • Make sure the video card is properly inserted in the slot. •...

  • Page 27: Specifications

    Specifications W1946T/W1946TN Display 47.0 cm (18.5 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 47.0 cm 0.300 x 0.300 mm (Pixel pitch) Horizontal Freq. 30 kHz to 61 kHz (Automatic) Sync Input Vertical Freq. 56 Hz to 75 Hz (Automatic) Input Form Separate Sync.
  • Page 28 Specifications W1946S/W1946SN Display 47.0 cm (18.5 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 47.0 cm 0.300 x 0.300 mm (Pixel pitch) Horizontal Freq. 30 kHz to 61 kHz (Automatic) Sync Input Vertical Freq. 56 Hz to 75 Hz (Automatic) Input Form Separate Sync.
  • Page 29 Specifications W2046T Display 50.8 cm (20.0 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 50.8 cm 0.2766 x 0.2766 mm (Pixel pitch) Horizontal Freq. 30 kHz to 83 kHz (Automatic) Sync Input Vertical Freq. 56 Hz to 75 Hz (Automatic) Input Form Separate Sync.
  • Page 30 Specifications W2046S Display 50.8 cm (20.0 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 50.8 cm 0.2766 x 0.2766 mm (Pixel pitch) Horizontal Freq. 30 kHz to 83 kHz (Automatic) Sync Input Vertical Freq. 56 Hz to 75 Hz (Automatic) Input Form Separate Sync.
  • Page 31 Specifications W2246T Display 54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 54.6 cm 0.248 x 0.248 mm (Pixel pitch) Horizontal Freq. 30 kHz to 83 kHz (Automatic) Sync Input Vertical Freq. 56 Hz to 75 Hz (Automatic) Input Form Separate Sync.
  • Page 32 Specifications W2246S Display 54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 54.6 cm 0.248 x 0.248 mm (Pixel pitch) Horizontal Freq. 30 kHz to 83 kHz (Automatic) Sync Input Vertical Freq. 56 Hz to 75 Hz (Automatic) Input Form Separate Sync.
  • Page 33 Specifications W2346T Display 58.4 cm (23 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 58.4 cm 0.266 x 0.266 mm (Pixel pitch) Horizontal Freq. 30 kHz to 83 kHz (Automatic) Sync Input Vertical Freq. 56 Hz to 75 Hz (Automatic) Input Form Separate Sync.
  • Page 34 Specifications W2346S Display 58.4 cm (23 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size : 58.4 cm 0.266 x 0.266 mm (Pixel pitch) Horizontal Freq. 30 kHz to 83 kHz (Automatic) Sync Input Vertical Freq. 56 Hz to 75 Hz (Automatic) Input Form Separate Sync.

  • Page 35: Preset Modes (Resolution)

    Specifications Preset Modes (Resolution) W1946T/W1946TN/W1946S/W1946SN Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz) 31.468 720 x 400 31.469 640 x 480 37.500 640 x 480 37.879 800 x 600 46.875 800 x 600 49.725 832 x 624 48.363 1024 x 768 60.123...
  • Page 36 Specifications W2246T/W2346T/W2246S/W2346S Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz) 31.468 720 x 400 31.469 640 x 480 37.500 640 x 480 37.879 800 x 600 46.875 800 x 600 48.363 1024 x 768 60.123 1024 x 768 67.500 1152 x 864 63.981 1280 x 1024...

  • Page 37: Installing The Wall Mount Plate

    Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. Place the monitor with its front facing downward on a soft cloth. Separate the stand by pushing the PUSH button. Good Position Bad Position Warning: You can hurt your finger.
  • Page 38 Digitally yours Downloaded from ManualMonitor.com Manuals...
