Operating Instructions
1 General Information....................................................................................................... 2
1.1 General Safety Notes .............................................................................................. 2
1.2 Intended Use ........................................................................................................... 2
1.3 Conformity with EU Regulations .............................................................................. 2
1.4 EX Approval ............................................................................................................ 2
2 Transportation and Storage .......................................................................................... 2
3 Installation and Commissioning .................................................................................. 2
3.1 Mechanical Installation ............................................................................................ 2
3.2 Electrical Connection .............................................................................................. 3
4 Operation ........................................................................................................................ 4
4.1 Adjusting of contacts ............................................................................................... 4
4.2 Zero-point correction ............................................................................................... 5
4.3 Maintenance / Service ............................................................................................. 5
5 Disassembly ................................................................................................................... 6
LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany
Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com

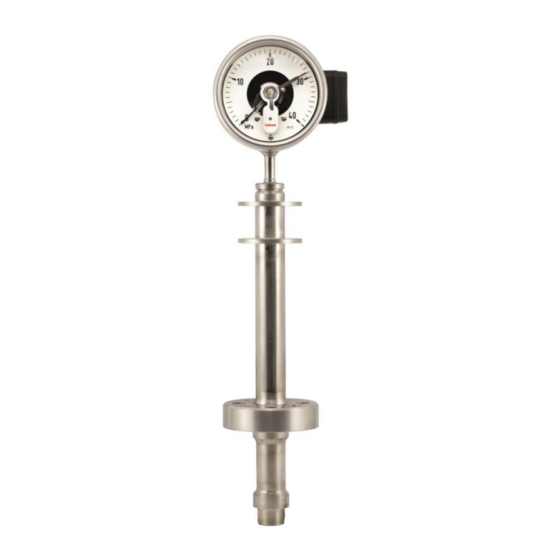

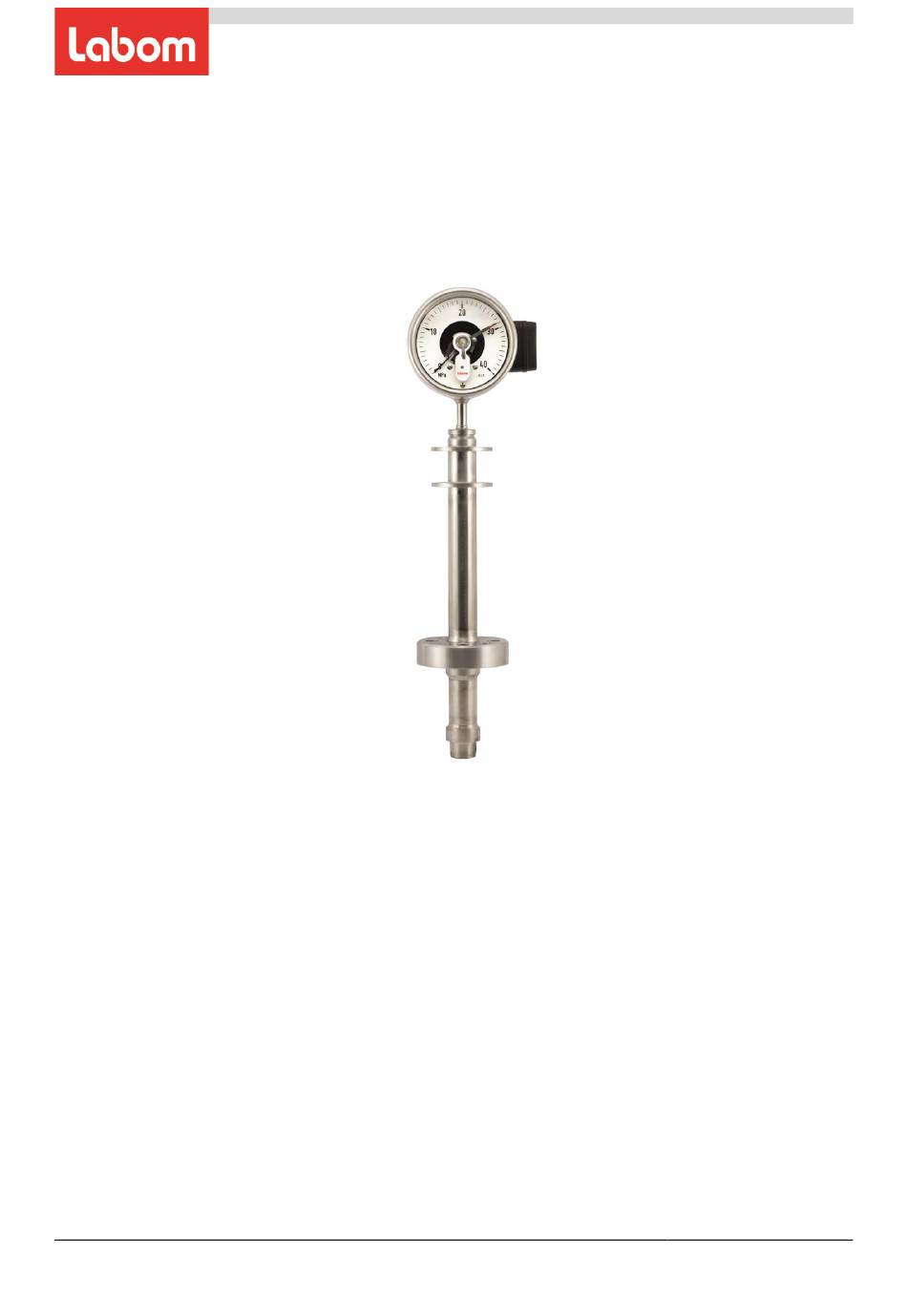

High temperature pressure gauges with switch
function
Type series BX1008
BA_035_en_2021-11_10.01
Page 1/6
Advertisement
Table of Contents
Related Manuals for Labom BX1008 Series
Summary of Contents for Labom BX1008 Series
- Page 1 4.2 Zero-point correction ....................5 4.3 Maintenance / Service ..................... 5 5 Disassembly ........................6 LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany BA_035_en_2021-11_10.01 Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com Page 1/6...
- Page 2 In addition to this instruction, be sure to observe all statutory requirements, applica- ble standards, the additional technical specifications on the accompanying data sheet (see www.labom.com) as well as the specifications indicated on the type plate. General Safety Notes The installation, set up, service or disassembly of this device must only be done by trained, qualified personnel using suitable equipment and authorized to do so.
- Page 3 The type of contact, the switch function and the pin connection can be found on a separate label on the measuring device. You can find further information about the connection of switch contacts in the document TA_039 on www.labom.com. BA_035_en_2021-11_10.01 High temperature pressure gauges with switch function Page 3/6...
- Page 4 10% and 90% of the nominal range only. Operating the contact outside of the scale range is not permitted. You can find further information on contacts in the document TA_039 on www.labom.com. BA_035_en_2021-11_10.01 High temperature pressure gauges with switch function Page 4/6...
- Page 5 Zero-point correction Zero point deviations can occur due to the mounting, the installation position or due to the type and duration of use. Measuring devices with micro controll position pointers can be corrected in a depressurised state by means of the adjusting screw on the pointer hub (see figure 7).
- Page 6 Disassembly When measuring hot media, make sure that the device has cooled down prior to any dis- mounting or wear appropriate protective clothing to avoid burns. Switch off the power supply to the device before disconnecting the electrical connections. Once this is done, the device may be mechanically removed. Remove the four flange screws.
