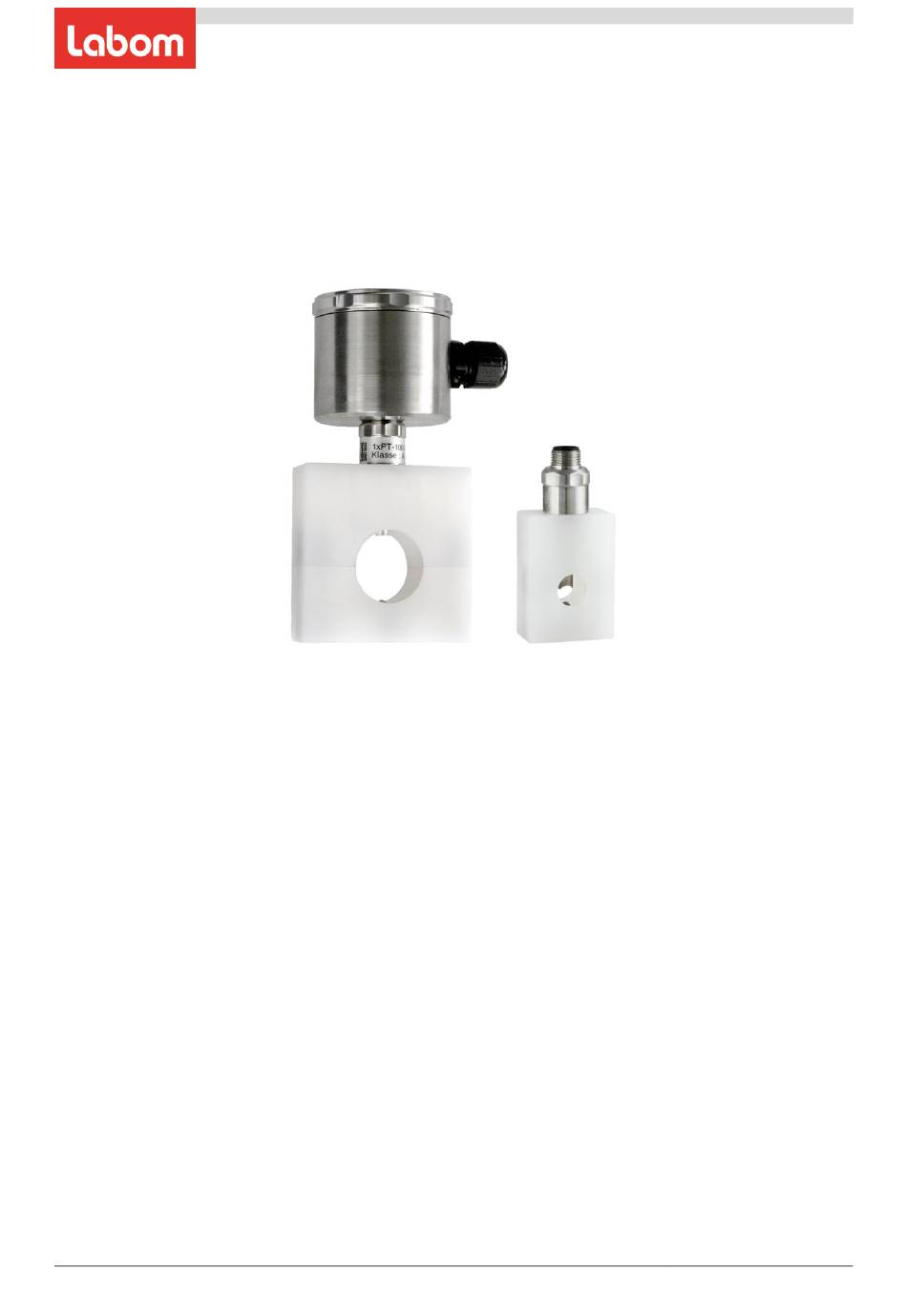

Resistance thermometer clamp-on technology
for temperature measurement on pipes,
Type series GA261x
Operating Instructions
1 General Information....................................................................................................... 2
1.1 General Safety Notes .............................................................................................. 2
1.2 Intended Use ........................................................................................................... 2
1.3 Conformity with EU Regulations .............................................................................. 2
1.4 ATEX Approval ........................................................................................................ 2
2 Transportation and Storage .......................................................................................... 2
3 Installation and Commissioning .................................................................................. 2
3.1 Mechanical Installation ............................................................................................ 2
3.2 Electrical Connection .............................................................................................. 5
4 Operation ........................................................................................................................ 6
4.1 Calibration ............................................................................................................... 6
4.2 Maintenance / Service ............................................................................................. 6
5 Disassembly ................................................................................................................... 6
LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany
Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com
BA_049_2019-06_10.00
Page 1/6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Labom GA261 Series
Summary of Contents for Labom GA261 Series
- Page 1 4 Operation ........................6 4.1 Calibration ....................... 6 4.2 Maintenance / Service ..................... 6 5 Disassembly ........................6 LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany BA_049_2019-06_10.00 Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com Page 1/6...
- Page 2 In addition to this instruction, be sure to observe all statutory requirements, appli- cable standards, the additional technical specifications on the accompanying data sheet (see www.labom.com) as well as the specifications indicated on the type plate. General Safety Notes The installation, set up, service or disassembly of this device must only be done by trained, qualified personnel using suitable equipment and authorized to do so.
- Page 3 3.1.1 Mounting the clamping element There are three options how to connect the device to the process: Figure 1: mounting options: a) clamping block, b) clamping shoe and c) clamping bracket 3.1.1.1 Mounting the clamping block Required tools: Hexagon socket wrench 3 mm (mounting screws) Hexagon socket wrench 2 mm (vibration protection) ...
- Page 4 3.1.1.3 Mounting the clamping bracket In an environment with space constraints you can use the mounting bracket. Required tools: Hexagon socket wrench 3 mm Loosen the clamping bracket by unscrewing the mounting screw so that you can easily move it over the pipe. ...
- Page 5 Electrical Connection Complete the mechanical installation before you connect the device electrically. Set up all electrical connections while the voltage supply is switched off. Circular connector 3-wire 4-wire 4-wire (3-wire bridged) Transmitter Transmitter IO-Link (Type PA2430) (Type PA2530) Cable gland 3-wire 4-wire Figure 5: Variants of electrical connection...
- Page 6 Operation During device operation, take care that the device remains within its intended temperature range. No other monitoring is necessary. -40…150 °C Permissible media temperature: -40…100 °C Permissible ambient temperature: When supplied with a transmitter, the permissible ambient temperature is reduced to 85°C. Restricted ambient conditions may apply in explosion protected environments (see XA_001).
