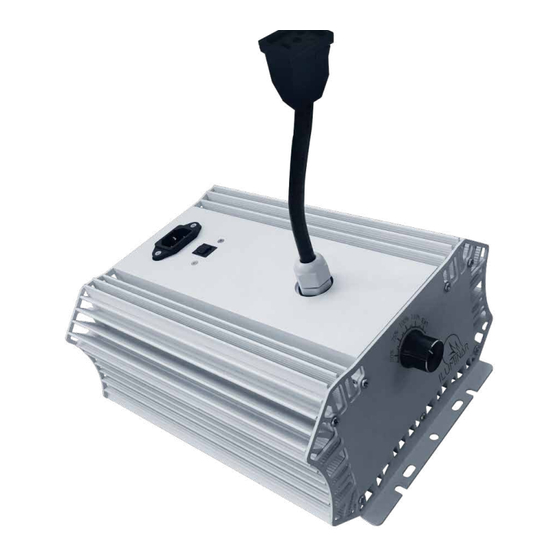

- Page 1 630W USER MANUAL DE CMH REMOTE BALLAST MODEL 630W 120/240V, 277V 1-877-540-5588 IL-RMCDE630-120 iluminarlighting.com IL-RMCDE630-277 sales@iluminarlighting.com...
- Page 2 IL-RMCDE630-277 KEEP ORIGINAL PACKAGING In the event of a return, products will need to be in the original ILUMINAR packaging to avoid product DE REMOTE BALLAST damage during shipping. Any damage to products not in their original packaging will not be covered under Warranty.
-
Page 3: Installation
3. Open Circuit Protection RATED VOLTAGE 120V-240V 277V 4. Ignition Failure Protection VOLTAGE RANGE +/- 10% 108-264V 249-305V 5. Thermal Protection PERFORMANCE 6. Suitable for ILUMINAR Touch Controller & HASH Controller FREQUENCY 140-220Hz REQUREMENTS PHYSICAL CASE LENGTH 271mm 10.67” SPECIFICATIONS CASE WIDTH 204mm 8.05”... - Page 4 4. Rotate the bulb, itself, to lock it into place (so that it will not move). (CONT.) ILUMINAR Lighting created the first of its kind, single-handed “Roll-Lock” socket for simple, one- handed lamp installation. We know it can get tricky to load new lamps - it’s too easy to drop the 5.
-
Page 5: Troubleshooting
TROUBLESHOOTING Follow these common troubleshooting tips: Possible Cause Corrective Maintenance Ensure the lamp is fully inserted into the socket Lamp Loose in Socket and that it has been properly locked. Make sure you’re using the correct input Incorrect Voltage voltage with ballast. If using incorrect voltage, disconnect the ballast from the power source immediately.
