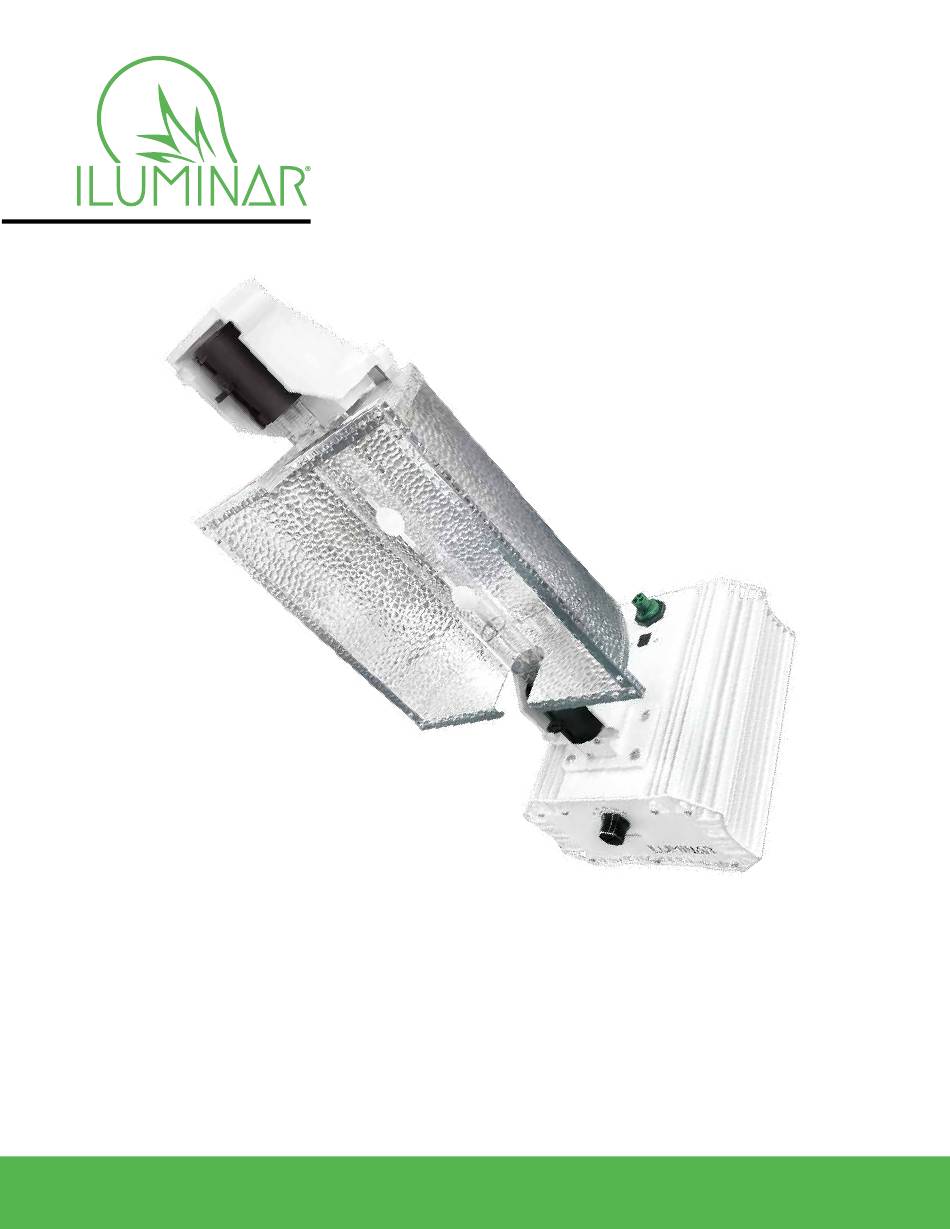

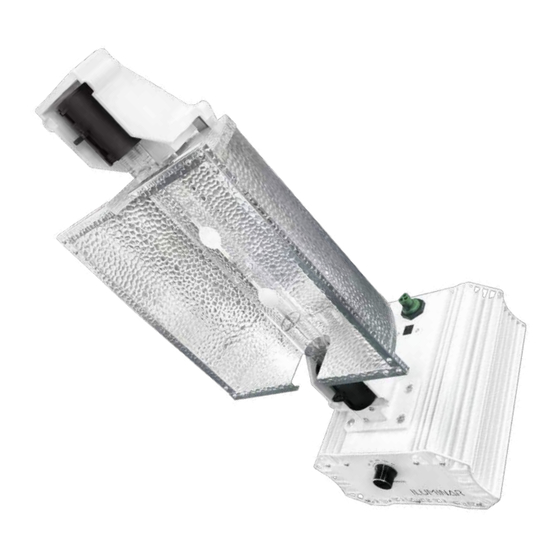

- Page 1 630W USER MANUAL DE CMH FIXTURE MODEL 630W 120V/240V, 277V, 347V IL-CMHDE630-120 877-540-5588 IL-CMHDE630-277 iluminarlighting.com IL-CMHDE630-347 sales@iluminarlighting.com...
- Page 2 ILUMINAR Lighting CMH DE Fixture. Always have an expert install your product(s). KEEP ORIGINAL PACKAGING In the event of a return, products will need to be in the original ILUMINAR Lighting packaging to avoid product damage during shipping. Any damage to products not in their original packaging will not be covered under the Warranty.
-
Page 3: Technical Specs
VOLTAGE: SKU: 120V/240V IL-CMHDE630-120 630W 277V IL-CMHDE630-277 347V IL-CMHDE630-347 DE FIXTURE Energy efficient Uniform Light Distribution Soft Start Technology Ignition Failure Protection TECHNICAL SPECS 120V 240V 277V 347V MOUNTING & COVERAGE Input Current 5.56A 2.79A 2.4A 1.92A Input Power 675W... -
Page 4: Installation Procedure
120V 240V 277V 347V REQUIREMENTS VOLTAGE RANGE +/- 10% 108-264V 249-305V 312-382V FREQUENCY 50/60 Hz OPERATIONS FREQUENCY 140 - 220Hz © Copyright 2020, ILUMINAR Lighting © Copyright 2022, ILUMINAR Lighting Subject to change without notice. Subject to change without notice. -
Page 5: Mounting Location
1. Max. allowable case temperature: 35º C / 95º F 2. Ambient Temperature: 0 - 35°C / 32-95°F 3. Max. Humidity: 95% 4. Ignition Voltage: 5kV COMPATIBILITY Compatible with all ILUMINAR Lighting CMH DE lamps as well as the ILUMINAR Lighting Touch+ & HASH Environment controllers. 1-877-540-5588 iluminarlighting.com sales@iluminarlighting.com... - Page 6 PROPRIETARY ROLL LOCK SOCKET (ILUMINAR LIGHTING FIXTURES) ILUMINAR Lighting created the first of its kind, single-handed “Roll-Lock” socket for simple, one- handed lamp installation. We know it can get tricky to load new lamps - it’s too easy to drop the lamp and lose that investment.
- Page 7 3. Using soft gloves to handle the lamp, slide the lamp into the ROLL LOCK fixture (with metal leads straight) until the lamp is fully seated. SOCKET INSTALLATION 4. Rotate the bulb, itself, to lock it into place (so that it will not move). (CONT.) 5.
-
Page 8: Troubleshooting
TROUBLESHOOTING Follow these troubleshooting solutions: Possible Cause Corrective Maintenance Ensure the lamp is fully inserted into the socket and that Lamp Loose in Socket it has been properly locked. Make sure you’re using the correct input voltage with Incorrect Voltage ballast.
