Summary of Contents for Iluminar iLogic8

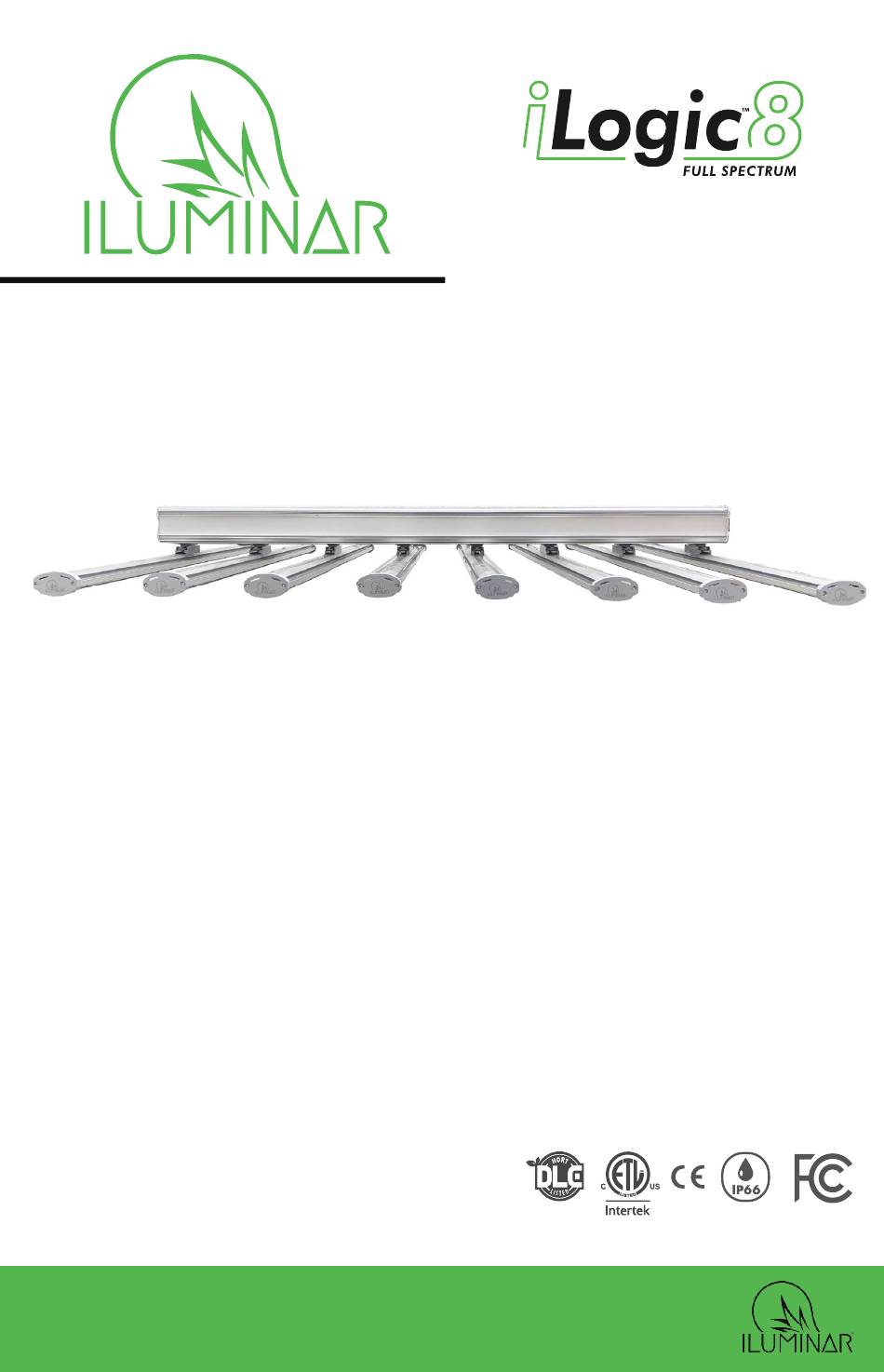

- Page 1 USER MANUAL iLogic8 Full Spectrum 630W 1-877-540-5588 IL-iLOGIC8 iluminarlighting.com sales@iluminarlighting.com...
- Page 2 MOUNTING & COVERAGE Color Temperature 3900k • Observe all safety precautions (see page 10), seek the services of a qualified electrician, installation professional, or call ILUMINAR Lighting Color Rendering Index technicians for assistance. Minimum Mounting Height 8-12” to top of Canopy...
- Page 3 HARDWARE AND ACCESSORIES CONNECTION INSTRUCTIONS Lay the central mast on a flat table top or surface with The iLogic8 can be hung from the attachment brackets facing UP. Attach each LED Bar rope ratchets or can be mounted by aligning the plastic clips and carefully sliding them into to a rack.
- Page 4 The Ratchets should be installed closest to the LED (and not the ceiling). A: Remove slack to raise fixture. B: Give slack to lower fixture. Controller Cable Led Bar´s 1-877-540-5588 © Copyright 2021, ILUMINAR Lighting iluminarlighting.com Subject to change without notice. sales@iluminarlighting.com...
- Page 5 If you’re planning to utilize several LEDs in your room or facility, one of the many benefits of the ILUMINAR LED is that you can “daisy chain” one fixture to another to save space and use only one outlet to run several lamps thus minimizing the amount of cords used in your space.
- Page 6 Do NOT exceed 70% max load for breakers due to Inrush current in LED fixtures. GUARANTEE At ILUMINAR, we stand behind our products and our technology as well as our customers. All ILUMINAR LED fixtures are backed by our 5-Year Guarantee. Please visit our website iluminarlighting. com/warranty for more information. 1-877-540-5588 iluminarlighting.com...
