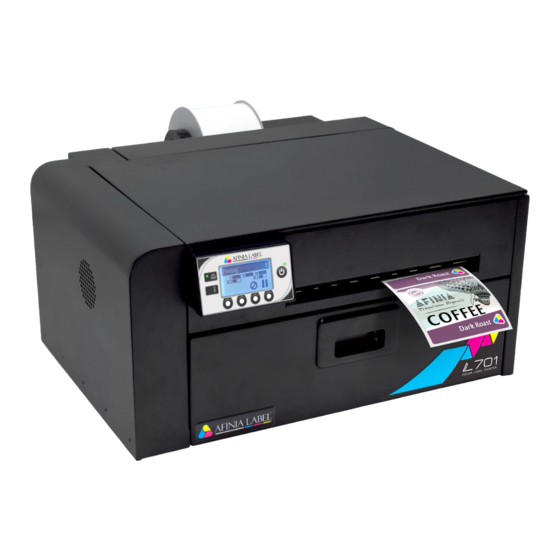

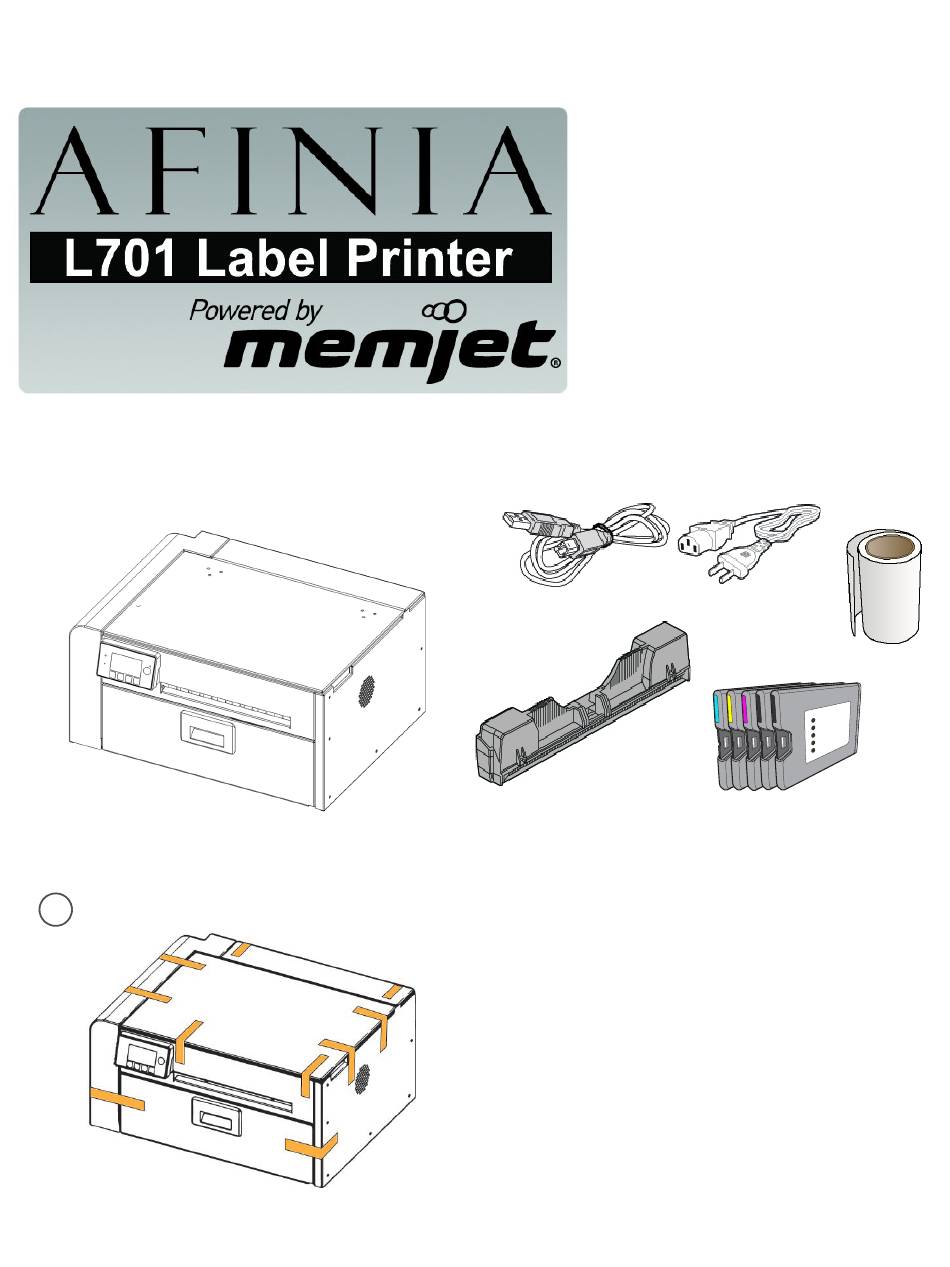

- Page 1 Quick Setup Installation Guide For more detailed information, insert the Installation Disc into the PC and click the User Guide button on the Setup Launcher main page. Unpack: Remove tape and packing materials Remove tapes. (continued on next page)
- Page 2 Open top cover and remove tapes and foam. foam Remove cardboard. Save the packing foam and cardboard! Squeeze latches to open clamshell Lift tabs Pull tabs to remove cardboard...
- Page 3 Connect power, turn on switch in back Do not connect the printer to a PC until prompted to do so during the Printer Driver Installation! Choose display language Missing Printhead LANGUAGE 1. English Language not displayed, press Select For other languages, (Config) press (Select)
- Page 4 Install ink cartridges...
- Page 5 Slowly remove tape from electrical contacts Install and nozzles printhead electrical contacts No less than 45° nozzles Missing Printhead (Config) CONFIGURATION 3. PRINTHEAD (Select) PRINTHEAD 2. REPLACE Wait for printhead latch to be released. Open printhead latch fully. Check that ink is flowing through the tubes on both sides of the printhead.
- Page 6 Load sample media Flat side against media roll. Unwinder Media path Tighten knob fully. Insert media until it stops Wait for printer to load media...
- Page 7 Print test label Requires inter-label gap or continuous media Printer Online CONFIGURATION (Config) 2. MAINTENANCE (Select) MAINTENANCE 1. PRINT TEST PAGE PRINT TEST PAGE 2. PQ PLOT Top Section: • Lines are defined with no missing nozzles Sample PQ Plot •...
- Page 8 Before installing printer driver, ensure the computer meets minimum system Install printer driver requirements (see System Requirements in the User Manual Appendix). To connect printer to computer using USB To connect printer to network Connect printer to network using Ethernet Download Latest Driver Network Printer...
