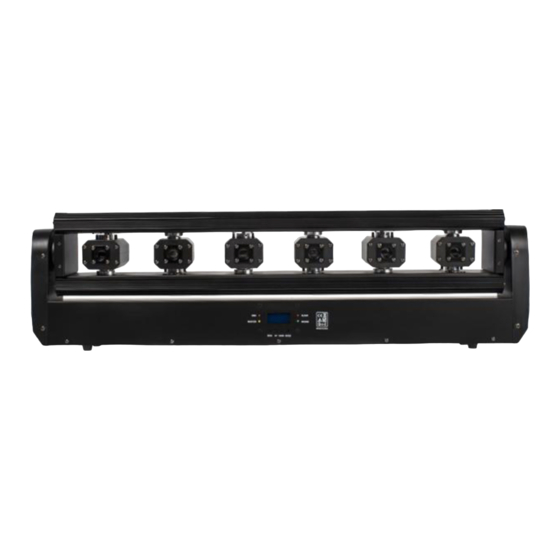

Shehds Six Eye Laser User Manual

Shehds Six Eye Laser User Manual

Rgb lighting

Advertisement

Quick Links

Six Eye Laser RGB Lighting
Lighting
Maintenance
1.Please keep the light in dryness and avoiding use in wet place.
2.Using intermittenlly can be extended the life.
3.Attention to clean the fan and lens usually in order to get the ventilating
effects and lighting effects better.
4.Please do not wipe the crust using organic menstruum for avoid to damaged
the product.
Statement
The product has well capability and intact packing when leave factory,All of the
user should comply with above warning item and manual ,any misuse cause of
the damages are not included in our guarantee,and also can't be responsible
for any malfunction & problem owing to ignore the manual.
Please forgive that we will not be notice for technical change
Attention Item
1.For guarantee the life of product,please do not put it on the wet place and not
use it the place over 40 degree.
2.Please don't lay the product on the un-fixable or shakable place.
3.Ask for the professional to maintain the product in order to avoid the danger
of get an electric shock.
4.Power supply should not be changed over +&-10% while the light is using,it
will be decreased the life of lamp if the power is too high,but it will be
influenced the luminosity if the power is too low.
5.After power off,if it is need used again,please cool down over 20 minuter.
6.Please look round the manual for ensure the product can be used normally.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Six Eye Laser and is the answer not in the manual?

Questions and answers

Summary of Contents for Shehds Six Eye Laser

  • Page 1 Six Eye Laser RGB Lighting Lighting Maintenance 1.Please keep the light in dryness and avoiding use in wet place. 2.Using intermittenlly can be extended the life. 3.Attention to clean the fan and lens usually in order to get the ventilating effects and lighting effects better.
  • Page 2: Product Introduction

    Product Introduction  Rated voltage: AC90--275V 50 ~ 60Hz ± 10%  Rated power: 150W  Laser source: semiconductor pump laser  Laser modulation: TTL  Laser wavelength: 638nm  Laser power: 3000MW (500MW * 6pcs)  Laser color: single red, single green, single blue ...
  • Page 3 Instructions:Press the function key A cycled out the eight different function effects,digital tube first two digits on behalf of which the current function(see menu).The last two digits represent the functions in which the address code or speed parameters.Press the B or C key to modify the parameter values.Press the D key to confirm.
  • Page 4 11 DMX Channel Summary Channel Value Function Tilt 0-190° 0-255 0-255 Tilt speed Total Pan 0-90° 0-255 0-255 Total Pan speed 0-132 Total laser Off 133-255 Total laser On 10-255 Total Strobe slow to fast 15-27 Laser effect auto mode 1 28-39 Laser effect auto mode 2 40-51...
  • Page 5 19 DMX Channel Summary Channel Value Function Tilt 0-190° 0-255 0-255 Pan speed Tilt1 0-90° 0-255 Tilt2 0-90° 0-255 Tilt3 0-90° 0-255 Tilt4 0-90° 0-255 Tilt5 0-90° 0-255 Tilt6 0-90° 0-255 0-255 Tilt total speed 0-127 Total laser On CH10 128-255 Total laser Off CH11...
  • Page 6 Pan5 0-90° 0-255 Pan6 0-90° 0-255 Total Pan 0-90° CH10 0-255 CH11 0-255 Total Pan speed 0-132 Total laser Off CH12 133-255 Total laser On CH13 10-255 Total Strobe slow to fast CH14 0-255 0-132 Laser1 off 133-255 Laser1 On CH15 0-255 0-132 Laser2 off...
