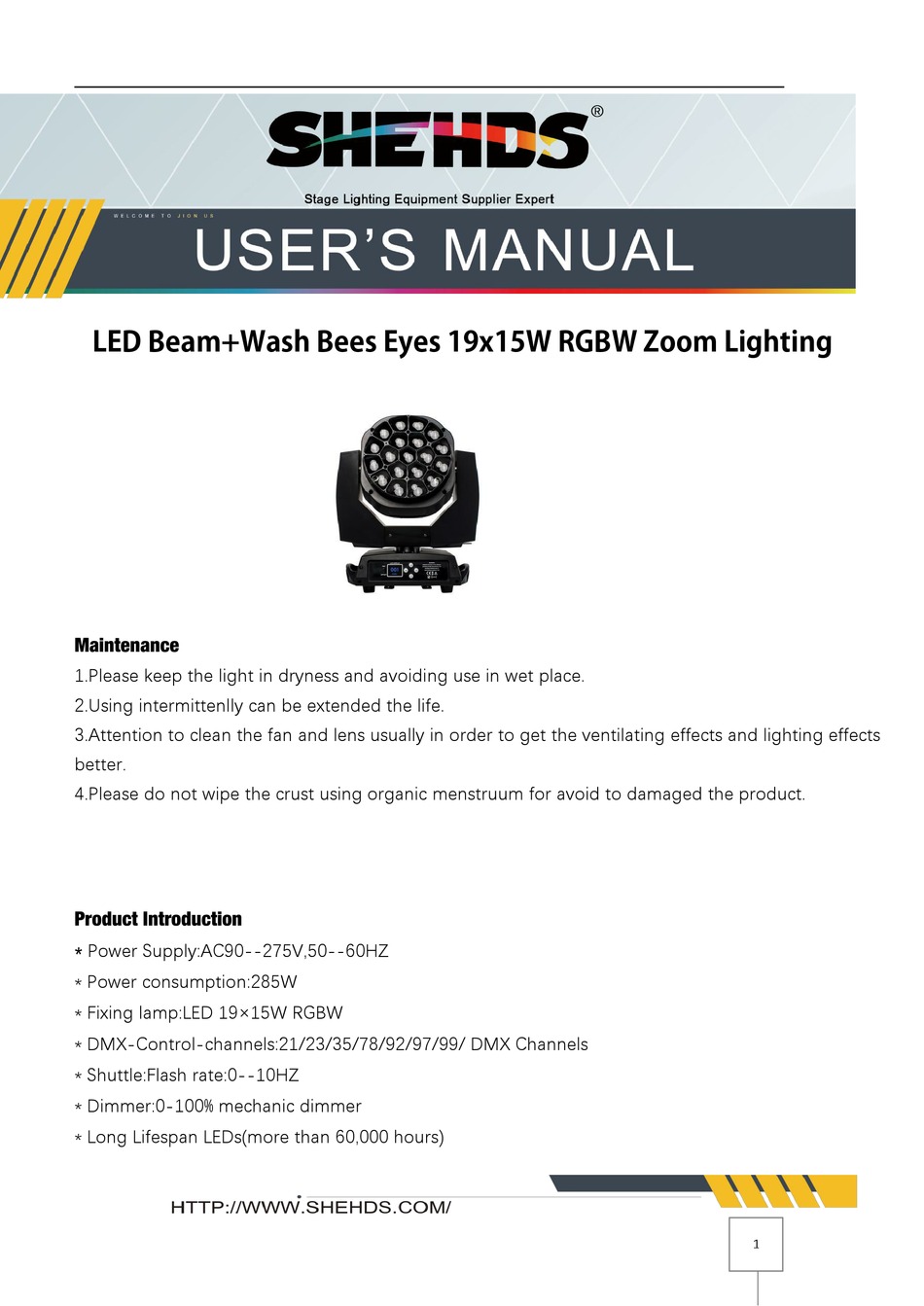

LED Beam+Wash Bees Eyes 19x15W RGBW Zoom Lighting
7x15W RGBW Zoom Lighting
Maintenance
1.Please keep the light in dryness and avoiding use in wet place.
2.Using intermittenlly can be extended the life.
3.Attention to clean the fan and lens usually in order to get the ventilating effects and lighting effects
better.
4.Please do not wipe the crust using organic menstruum for avoid to damaged the product.
Product Introduction
* Power Supply:AC90--275V,50--60HZ
* Power consumption:285W
* Fixing lamp:LED 19×15W RGBW
* DMX-Control-channels:21/23/35/78/92/97/99/ DMX Channels
* Shuttle:Flash rate:0--10HZ
* Dimmer:0-100% mechanic dimmer
* Long Lifespan LEDs(more than 60,000 hours)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHE-BWBE1915D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Shehds SHE-BWBE1915D

  • Page 1 LED Beam+Wash Bees Eyes 19x15W RGBW Zoom Lighting 7x15W RGBW Zoom Lighting Maintenance 1.Please keep the light in dryness and avoiding use in wet place. 2.Using intermittenlly can be extended the life. 3.Attention to clean the fan and lens usually in order to get the ventilating effects and lighting effects better.
  • Page 2: Motor Calibration

    Display Control Instruction Menu1 Menu2 Menu3 Run Mode DMX Sound Auto ART DMX Address 001-255 Channel Mode 21/23/35/78/92/97/99 Invert Pan ON/Off Invert tilt ON/Off Pan Tilt Swap ON/Off 1.System Setup Encoder ON/Off No Signal Clean/Keep Screen Saver ON/Off Language EN/中文 Load Default Dimmer /Pan Tilt...
  • Page 3 21 Channel mode Function Value Describe 0-255 Red light Red fine-tuning 0-255 Red light fine-tuning Green 0-255 Green light Green fine-tuning 0-255 Green light fine-tuning Blue 0-255 Blue light Blue fine-tuning 0-255 Blue light fine-tuning White 0-255 White light White fine-tuning 0-255 White light fine-tuning Color temperature...
  • Page 4 Function Value Describe 0-255 Pan moving head Pan Fine 0-255 Pan moving Fine -tuning Tilt 0-255 Tilt moving head Tilt Fine 0-255 Tilt moving Fine -tuning Speed 0-255 Pan &Tilt moving head speed Zoom 0-255 Zoom 128-191 Zoom Clockwise infinite rotation Lens rotation 192-255 Counterclockwise infinite rotation...
  • Page 5 35 Channel mode Function Value Describe 0-255 Red light Red fine-tuning 0-255 Red light fine-tuning Green 0-255 Green light Green fine-tuning 0-255 Green light fine-tuning Blue 0-255 Blue light Blue fine-tuning 0-255 Blue light fine-tuning White 0-255 White light White fine-tuning 0-255 White light fine-tuning Color temperature...
  • Page 6 Pattern effect W 0-255 Pattern effect White color CH28 Pattern dimming 0-255 Pattern dimming CH29 CH30 BG Dimming 0-255 Background change Pattern change 0-255 Pattern change CH31 Pattern translation 0-255 Pattern translation CH32 Prospect strobe 0-255 Prospect strobe CH33 Background strobe 0-255 Background strobe CH34...
  • Page 7 128-191 Zoom Clockwise infinite rotation Lens rotation CH21 192-255 Counterclockwise infinite rotation CH22 R1 LED Dimming 0-255 Red1 LED Dimming G1 LED Dimming 0-255 Greed1 LED Dimming CH23 B1 LED Dimming 0-255 Blue1 LED Dimming CH24 R2 LED Dimming 0-255 Red2 LED Dimming CH25 G2 LED Dimming...
  • Page 8 Tilt 0-255 Tilt moving head CH16 Tilt Fine 0-255 Tilt moving Fine -tuning CH17 CH18 Function 24-37 Function 24-37 effective Reset 251-255 250-255 after 5S reset CH19 Zoom 0-255 Zoom CH20 128-191 Zoom Clockwise infinite rotation Lens rotation CH21 192-255 Counterclockwise infinite rotation Pattern rotation 0-255...
  • Page 9 Function Value Describe 0-255 Red light Red fine-tuning 0-255 Red light fine-tuning Green 0-255 Green light Green fine-tuning 0-255 Green light fine-tuning Blue 0-255 Blue light Blue fine-tuning 0-255 Blue light fine-tuning White 0-255 White light White fine-tuning 0-255 White light fine-tuning Color temperature 0-255 Linear Color temperature adjustment...
  • Page 10 99 Channel mode Function Value Describe 0-255 Pan moving head Pan Fine 0-255 Pan moving Fine -tuning Tilt 0-255 Tilt moving head Tilt Fine 0-255 Tilt moving Fine -tuning Speed 0-255 Pan &Tilt moving head speed Zoom 0-255 Zoom 128-191 Zoom Clockwise infinite rotation Lens rotation 192-255...
  • Page 11 B19 LED Dimming 0-255 Blue19 LED Dimming CH98 W19 LED Dimming 0-255 White19 LED Dimming CH99...
