RBH Access Technologies UNC100 Manual

REMEMBER TO REMOVE THE PAPER FROM THE BATTERY CONTACT PRIOR TO INSTALLATION
THIS DOCUMENT IS FOR QUICK REFERENCE ONLY, REFER TO HARDWARE & SOFTWARE MANUALS FOR FULL DETAILS
PS-1224 Power Supply
To 12 VDC 7 Ah UL Listed
Rechargeable Battery (REQUIRED)
Firmware, use Axiom Lite
software to check
firmware version.
Verify it matches your
software, up/downgrade
as needed via firmware
upgrade utility.

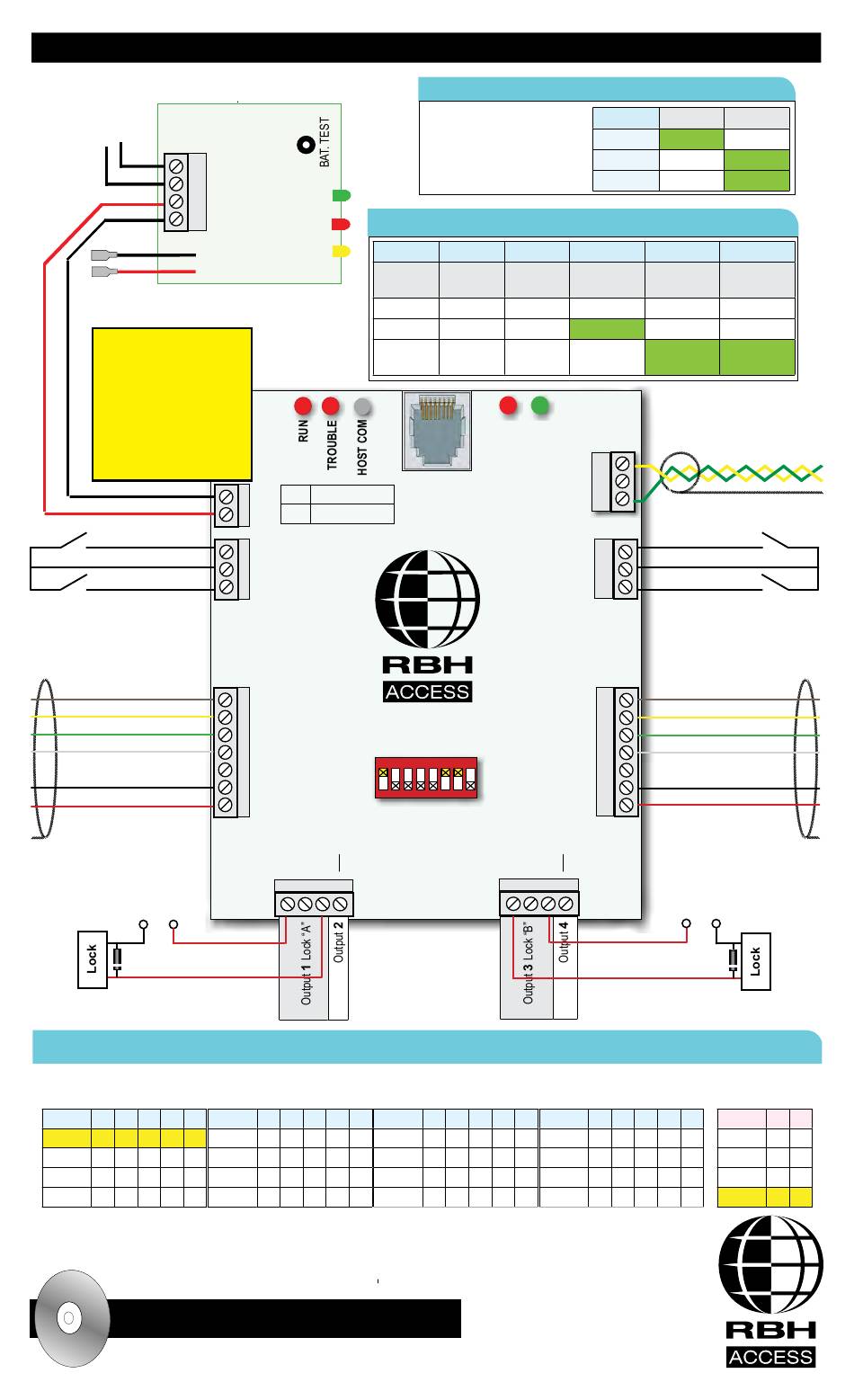

RTE "A"- Request to Exit
DC "A" - Door contact
LED (For single LED readers)
Buzzer
Data 0
Data 1
0V, Power, Data Ground
+12VDC
Belden 9538 20-22 AWG
8 core screened for
readers.
Lock Power Supply
12-24 VDC
- +
DIP SWITCH SETTINGS : DIP-Switch: UP = ON / DOWN = OFF
Cycle power for DIP-switch changes to take effect!
Switch 1 2 3 4 5
Panel 1 On
Panel 2 On
Panel 3 On On
Panel 4 On
For Support Call : 01386 425810
!
All software and hardware manuals are included
on software DVD in "Documents" folder
Web site : www.rbhsecuritygroup.com E-mail : support.uk@rbh-access.com
16.5VAC 40Va
16.5VAC 40Va
+12VDC @ 2A
0VDC @ 2A
IN 13.5V@1.5 A
0V
+V OUT 12V@500 mA
Input 1(RTE)
C
Input 2 (DC)
Reader A
GRN
BUZ
D0
D1
S
0V
+12V
LOCK 1
1NO 1NC 1C 2OC
(max 100ma)
Switch 1 2 3 4 5
Panel 5 On On
Panel 6 On On
Panel 7 On On On
Panel 8 On
Power Supply (PS-1224) LEDs
Press "BAT. TEST" button on
PS-1224 for battery test, Yellow
LED will go ON if test failed
Panel LEDs
Panel LEDs Run Trouble
Function Heartbeat Trouble
Off Malfunction Normal
Solid Malfunction Trouble
Blinking Normal Trouble
TX RX
ETHERNET
PoE
CANADA
1 2 3 4 5 6 7 8
LOCK 2
3NO 3NC 3C 4OC
Switch 1 2 3 4 5
Panel 9 On On
Panel 10 On On
Panel 11 On On On
Panel 12 On On

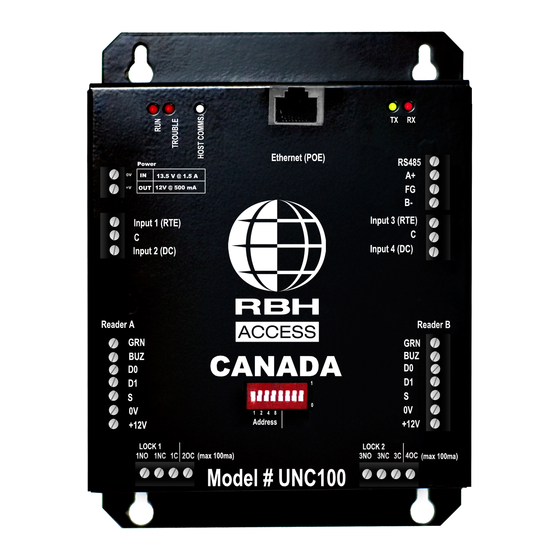

UNC100
Universal Network Controller
with ENCL1 enclosure
and PS-1224 power supply
LED On
Green LED Power On
Red LED Shorted
Yellow LED Battery Fail
Host Comm TX
Com to RS-485
software transmitting
No com No com
No Com Malfunction
Red/Green = Normal
Normal
Link up to 15 additional
panels via RS-485
RS-485
A+
FG
Belden 8723 20-22 AWG Twisted,
B-
Shielded Pair. 4,000' Max
RTE "B"- Request to Exit
Input 3
C
DC "B" - Door contact
Input 4
Reader B
LED (For single LED readers)
GRN
Buzzer
BUZ
Data 0
D0
Data 1
D1
S
0V, Power, Data Ground
0V
+12VDC
12V
Belden 9538 20-22 AWG
8 core screened for
readers.
(max 100ma)
Lock Power Supply
12-24 VDC
+
Switch 8: Always OFF!
Switch 1 2 3 4 5
Panel 13 On On On
Panel 14 On On On
Panel 15 On On On On
Panel 16 On
Off
Power Off
OK
Battery OK
RX
RS-485
receiving
No com
Malfunction
Normal
-
Switch 6 7
9.6 K
38.4 K On
57.6K On
115.2 K On On
