Summary of Contents for RBH Access Technologies UNC100

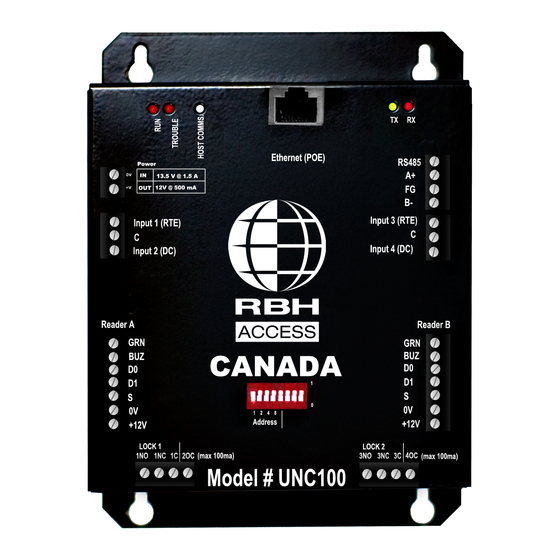

- Page 1 UNC100 HARDWARE MANUAL Revision 1.4 new generation building security WWW. RBH-ACCESS.COM © RBH Access Technologies, Inc. 2021...
- Page 2 Further RBH Access Technologies Inc. reserves the right to revise this publication, and to make changes to the content hereof from time to time, without the obligation of RBH Access Technologies Inc. to notify any person or organization of such revision or changes. RBH ACCESS TECHNOLOGIES INC.
-
Page 3: Table Of Contents
D e s c r i p t i o n .......... 8 Battery Protection ........................8 C o n n e c t i o n ....................9 UNC100 TCP/IP Connection ....................9 IP Device Discovery ......................... 10 Battery Charger ........................11 Reverse Battery Protection .................... - Page 4 S p e c i f i c a t i o n ................35 C a b l e S p e c i f i c a t i o n ................36 UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 4 of 36...
-
Page 5: R E V I S I O N H I S T O R Y
Added AES option for Encrypted communication between PC and master UNC-500 and between slave UNC-500s Updated copyright year 01/14/2021 Rearranged text and Images Added UL 294 Declaration Table 02/03/2021 UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 5 of 36... -
Page 6: I N T R O D U C T I O N
I n t r o d u c t i o n The RBH-UNC100 series is a welcome addition to the new generation of powerful and reliable Axiom hardware. The two door native TCP/IP controllers come equipped with onboard battery backup chargers and accommodate up to 16 individual IOC-16 input/output controllers or 254-SafeSuite keypads. -
Page 7: C E R T I F I C A T I O N S
Feature Levels Destruction Attack Level Level III Line Security Level II Endurance Level Level IV Standby Power Level IV Single Point Locking device with key Locks Level I UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 7 of 36... -
Page 8: U N C 1 0 0 C O N T R O L L E R D E S C R I P T I O N
Battery Protection To protect the battery from being drained during shipping/storage of the UNC100, there is a small paper between the battery and the panel. This must be removed before powering up the panel. -
Page 9: P C C O N N E C T I O N
AES option both in Axiom and UNC-100. To change the IP address of the unit or enable/disable AES option, users can use IP Device Discovery [a utility program provided by RBH] PC to UNC100 Connection - LAN UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. -
Page 10: Ip Device Discovery
Channel Application and Encryption (AES) and other options. Make changes to the various items displayed. After entering the data and clicking on “OK” the unit will re-boot. Please note that only Channel 1 is available for UNC100 RS485 Applications.. UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. -
Page 11: Battery Charger
10 volts a battery alarm message is sent to the host, otherwise a battery normal message is sent. Fuse Monitoring Besides monitoring the battery voltage the UNC100 also monitors the input voltage (DC), auxiliary voltage (aux) and the reader voltage (reader) and reports to the host whenever the state changes. -
Page 12: U N C - 1 0 0 C O M M U N I C A T I O N
Axiom software can be achieved in the following ways; either via the Ethernet interface or via RS485 through a direct connection to a designated channel. The UNC100’s RS485 channel may be programmed as HOST, DNET, UNC-NET, LAN, and OSDP/OSDP-S. Use the DIP switch to select baud rate for Host communications as 9600, 38400, 57600, or 115200. -
Page 13: Dip Switch Settings
DIP Switch Settings The UNC100 DIP switch controls the device’s address and serial port baud rate. To Clear Panel memory – All DIP switches must be off and the unit powered off and on. DIP Switch DIP Switch Function... -
Page 14: Master Controller
Axiom™ software. The default baud rate is 9600. Controller Baud Rate Selection DIP Switch 6 DIP Switch 7 Baud Rate 9600 38400 57600 115200 UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 14 of 36... -
Page 15: U N C - N E T ( C O N T R O L L E R N E T W O R K )
PC. Controller number 1 is designated the master controller and connected to the PC using TCP/IP communications. The remaining controllers are referred to as slaves and can only communicate to the PC through the master UNC-100. UNC-NET (Controller Network) UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 15 of 36... -
Page 16: Unc-Net Cable
When combining UNC500s and UNC100s; connect the RS485 of the previous UNC100 to CH3 (Configured as UNC-NET) of the UNC500. If host connection is made through the RS485 port, then only one panel can be connected. UNC-NET Cable Use 20 to 22 AWG shielded stranded twisted pair cable for all UNC-NET connections. -
Page 17: E - N E T ( E T H E R N E T N E T W O R K )
Both Master panel & the host computer needs to be provide with the AES key. Also for communication amongst the slave panels ENET feature has to be enabled. Before E-net configuration, all the UNC-100s need to be upgraded to Firmware 10.28. UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 17 of 36... -
Page 18: Steps To Enable E-Net Encryption
In Master and Slave UNC-100s configuration enter serial number and IP address of panels. In the advanced tab of Network Configurations, check AES option and enter a four character customer key. UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 18 of 36... - Page 19 Using the IP Device Discovery Program, check the AES box and enter the same four character customer key matching the one added in software. UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 19 of 36...
-
Page 20: D - N E T D E V I C E N E T W O R K
D - N E T D e v i c e N e t w o r k Up to four RC-2 reader controllers (The UNC100 is configured for 1, then you can connect 3 physical RC2s), and up to sixteen IOC-16 input/output controllers, may be connected to each network controller in the UNC-NET using high speed RS485 communications. - Page 21 5 – 20 IOC-16, PC-100 1-255 SafeSuite™ panel * The first NURC is on the UNC100 – Therefore, the first physical RC2 to be connected will start at address 2. UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 21 of 36...
- Page 22 D-NET (Device Network) Connection Example UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 22 of 36...
-
Page 23: D-Net Maximum Cable Length
In addition, shielded cable may be necessary to prevent the network from interfering with signals on other cables in the same trunk. UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. -
Page 24: Reader Interface
Reader wire colours may vary for different reader manufactures. Please verify your wiring. Some readers only require 6-conductors since they only have one LED wire (wired to GRN). UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 24 of 36... -
Page 25: Access Point/Reader Operating Modes
The Buzzer emits one long beep and the green LED turns on for the duration of the unlock time. Access Denied The Buzzer emits two short beeps and the red LED flashes twice. UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 25 of 36... -
Page 26: Osdp
The secure communication uses AES-128 bit encryption. Key for secure communication setup is pre- set in UNC100 & PD. In case these keys do not match, secure channel is not set up, in that case the PD has to be updated for the key. - Page 27 Power off the panel, set the Dip switches to regular state & power on the panel & reader. RBH OSDP Configuration Tool is used to write the key in OSDP Readers: UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 27 of 36...
-
Page 28: Enabling The Osdp Feature In Unc-100
The IP Device Discovery select ‘OSDP’ APP on RS-485 channel. Encrypted OSDP settings In order to make UNC-100 communicate to PD in OSDP encrypted mode, from The IP Device Discovery select ‘OSDP-S’ APP on RS-485 channel. UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 28 of 36... -
Page 29: Extended Use Of Osdp Channel
Two readers are associated with every reader controller. The OSDP index is based on the readers DNET address. See the table below DNET Access OSDP Address point Address UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 29 of 36... -
Page 30: Inputs
Inputs The UNC100 has four fully supervised inputs, two on side A and two on side B. All Four inputs are added as defaulted application by default, and can be programmed as General purpose from the PC Number Default Application... - Page 31 This circuit provides a high degree of supervision and detects both short and open circuit fault conditions. Use this circuit in high security applications. Normally Open, One Resistor Loop Resistance State Short Alarm Restore Open Circuit Trouble UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 31 of 36...
- Page 32 Closed, One Resistor Loop Resistance State Short Alarm Restore Open Circuit Alarm This circuit type is used where normally open and normally closed contacts are used in the same loop. UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 32 of 36...
-
Page 33: Outputs
Connect the diode cathode (end with band) to the positive terminal and the other end to the negative terminal. The diode must be placed at the device being switched and not at the controller. UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 33 of 36... - Page 34 UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 34 of 36...
-
Page 35: U N C 1 0 0 S P E C I F I C A T I O N
H 5 ½ in x W 5 in (14 x 12 ½ cm) Operating Temperature 0 to 70C (35 - 150F) Operating Humidity 20 to 85% RH (non-condensing) UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 35 of 36... -
Page 36: C A B L E S P E C I F I C A T I O N
20 to 22 AWG, 6 or 8-conductor, Reader 500 feet (150 meters) stranded, shielded (not twisted) Input / Output Port Circuit Loop 2-conductor, 20 to 22 AWG 1000 feet (300 meters) UNC100 Hardware Manual V1.4 RBH Access Technologies Inc. Page 36 of 36...
